48ft Refrigerated Container

Dimensions Approx
Length 15.2m
Width 2.5m
Height 3m
Pallet Wide x2
Pallet Spaces x48

Take advantage of SCF’s largest Refrigerated Container which offers extra pallet space for intermodal transport. The 48ft Refrigerated Container can store 24 pallets (up to 48 pallets with Vertical Load Bars), offering an efficient temperature sensitive solution for large cargo requirements.

Product Banner Image - 48ft Refrigerated Container

48ft Refrigerated Container

Take advantage of SCF’s largest Refrigerated Container which offers extra pallet space for intermodal transport. The 48ft Refrigerated Container can store 24 pallets (up to 48 pallets with Vertical Load Bars), offering an efficient temperature sensitive solution for large cargo requirements.

Product Details

SCF’s 48-foot refrigerated container can store up to 48 pallets in a temperature-controlled environment without compromising on the strength and durability of other, heavier refrigerated shipping containers.

Built with superior temperature control and insulation, temperature is efficiently maintained with reduced machinery run time, reducing fuel consumption and costs.

Keep 24 pallets (up to 48 pallets with Vertical Load Bars) of perishables cool, with the utilisation of our internal load bars and double stacking.

SCF also produces a range of other sizes and variants to provide alternative capacity options to suit your requirements.

  • Thermo King or Carrier diesel machinery (optional electric standby)
  • 2 pallet wide – 24 pallet spaces (up to 48 pallets with vertical load bars)
  • Custom SCF insulation design for premium thermal performance
  • Vertical load bars for double stacking
  • Optional F-track for freight restraint
  • Airflow floor design for efficient cooling
  • Internal scuff plates and flush mounted components to reduce damage

48ft Refrigerated Container Dimension and Weight

Specifications may vary

The cubic capacity of a 48ft refrigerated container is 91m3.

Internal (mm)
Length 14,130
Width 2,380
Height 2,716
External (mm)
Length 15,234
Width 2,500
Height 3,000
Weight (kg)
Tare 7,760
Payload 27,240
MGW 35,000

48ft Refrigerated Container

48ft Refrigerated Container - line drawing - SCF

You might also like

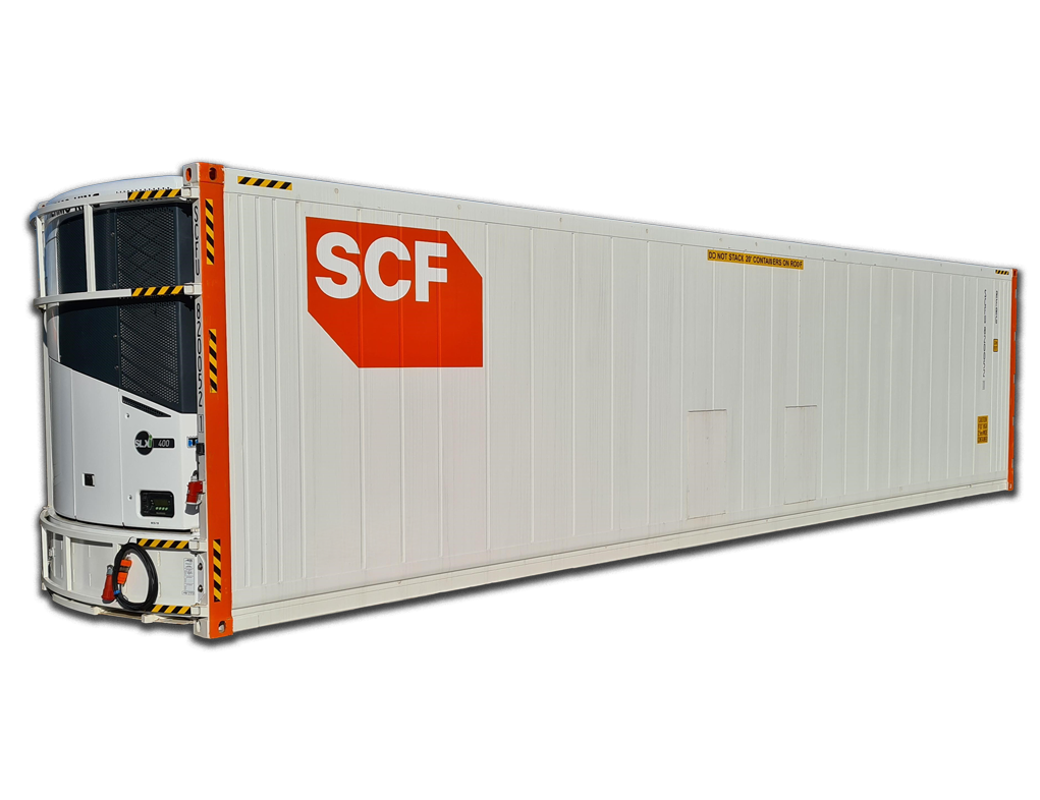

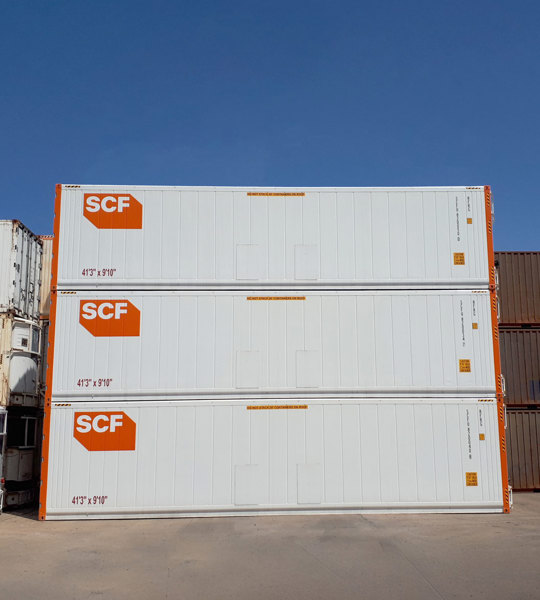

41ft Refrigerated Container

41ft Refrigerated Container

  • Approx 12.6m L x 2.5m W x 3m H

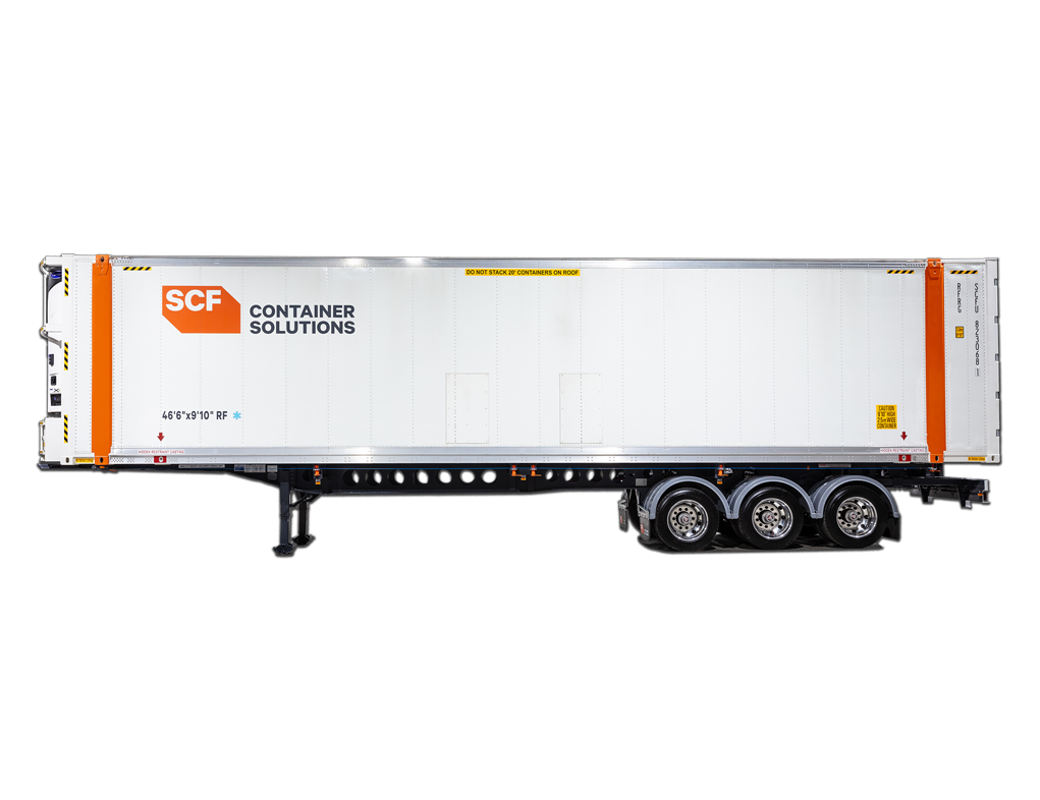

46ft Reefer

46ft Refrigerated Container

  • Approx 14.2m L x 2.5m W x 3m H

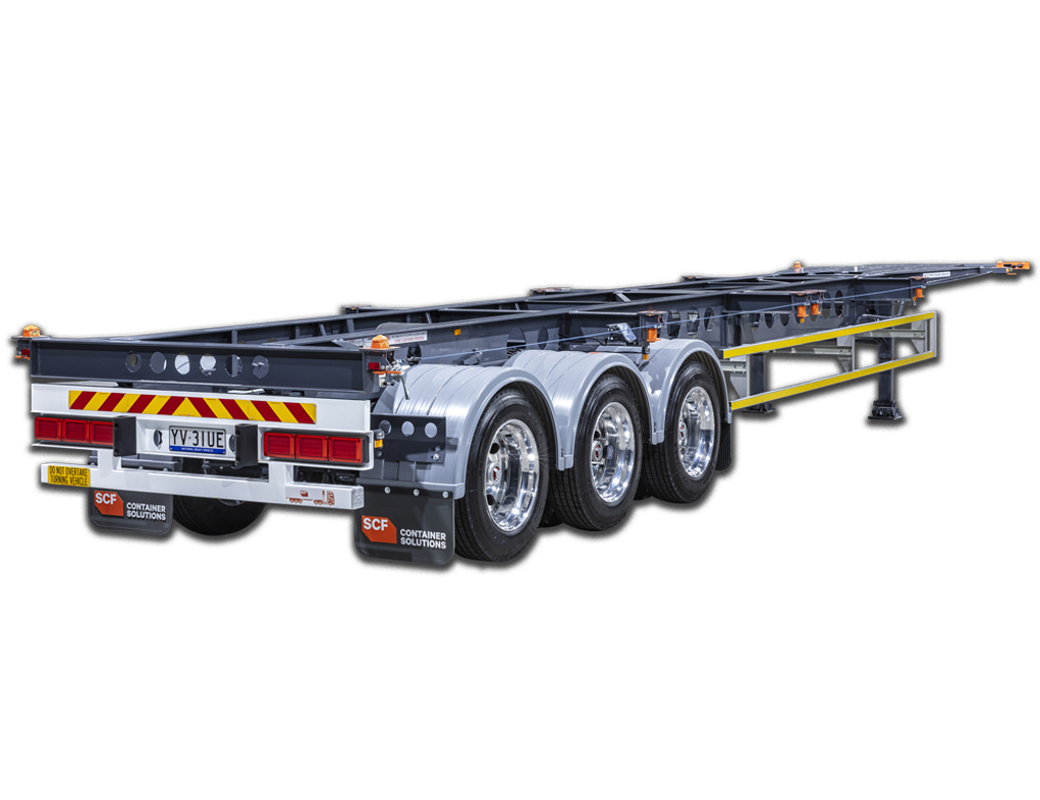

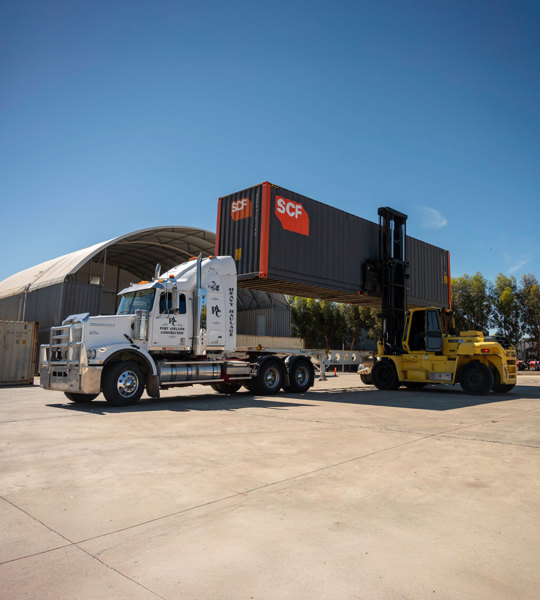

Skel Trailer
