Tautliner Trailer

Dimensions Approx
Length 14.6m
Width 2.5m
Height 4.3m

SCF's Tautliner Trailer enables users to reduce freight handling time without compromising on equipment reliability or safety. Utilise an SCF Skel Trailer and Tautliner container to increase the flexibility of your fleet.

Product Banner Image - Tautliner Trailer

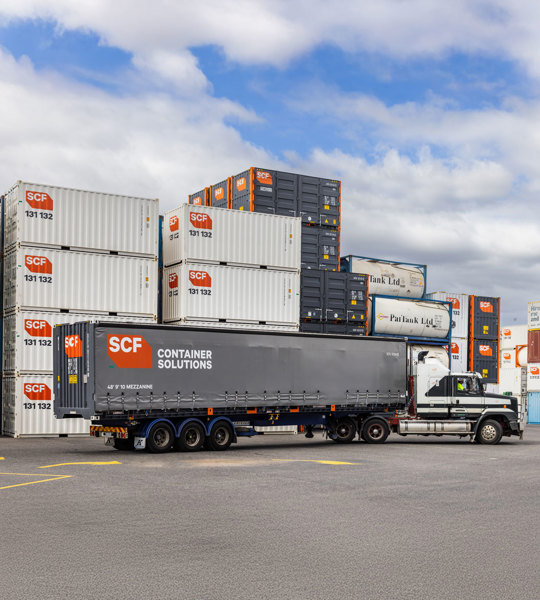

Tautliner Trailer

SCF's Tautliner Trailer enables users to reduce freight handling time without compromising on equipment reliability or safety. Utilise an SCF Skel Trailer and Tautliner container to increase the flexibility of your fleet.

The Versatile Tautliner Trailer

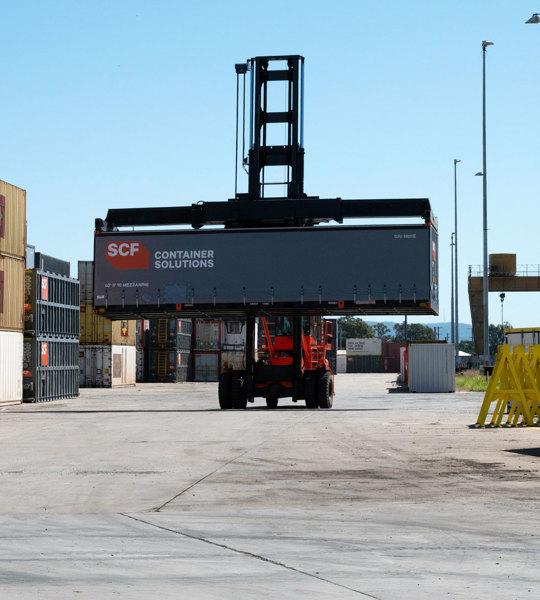

SCF's Tautliner trailer comes with all the bells and whistles of a standard tautliner trailer, but unlike all those others, this can quickly and safely be deployed to rail. Leverage rail and utilise it as part of your broader offering to grow your business or focus on routes that generate the greatest return.

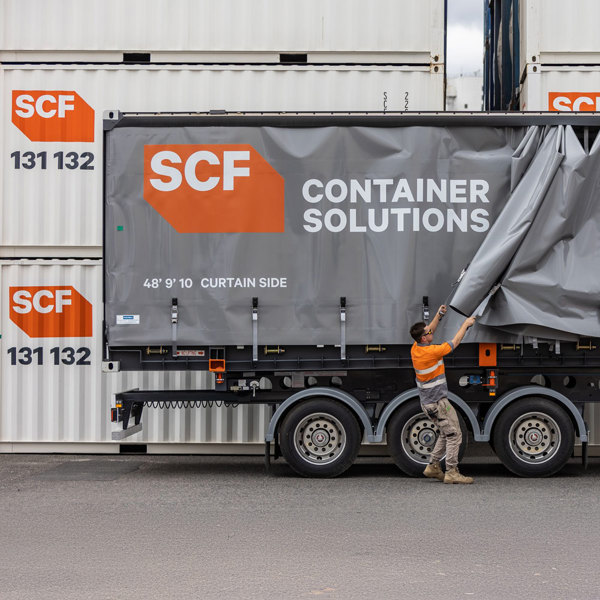

With curtain access from both sides, our containers are a firm favourite with Australian logistics and freight companies across Australia. Not only do they include a range of transport specific features to protect your cargo in transit, they are also designed with user safety in mind.

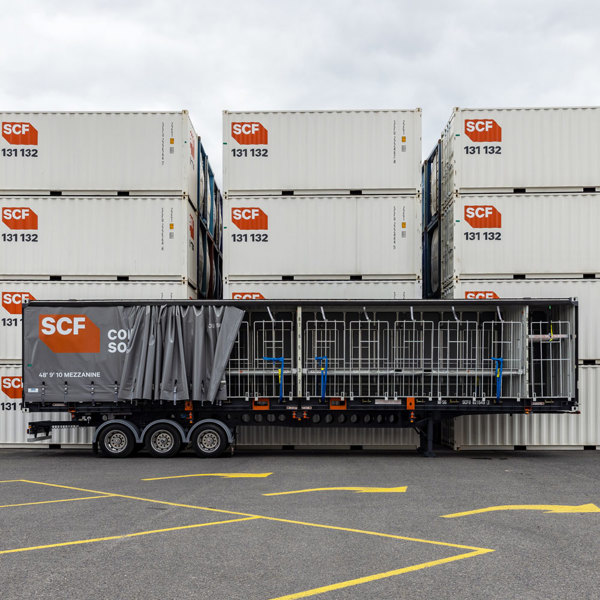

Double stack pallets with our optional Mezzanine Deck, that has a lift and lock mechanism so it can be fully operated by a forklift.

You can also choose from multiple sizes to suit your cargo volume:

  • a 40ft Tautliner can hold up to 40 pallets
  • a 48ft Tautliner can hold up to 48 pallets
  • 2 pallet wide - store from 20 to 48 pallets
  • Mezzanine deck enables multi stacking of fragile pallets
  • Hanging posts and gates to protect cargo

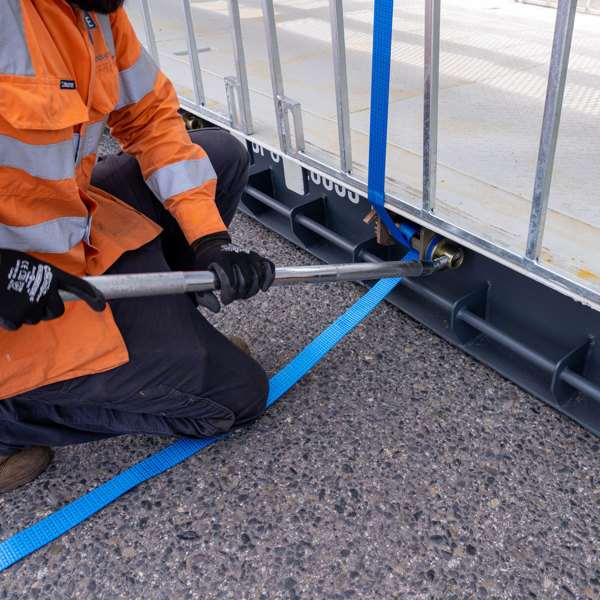

  • Load binder winches
  • Full lashing rail to restrain cargo in transit

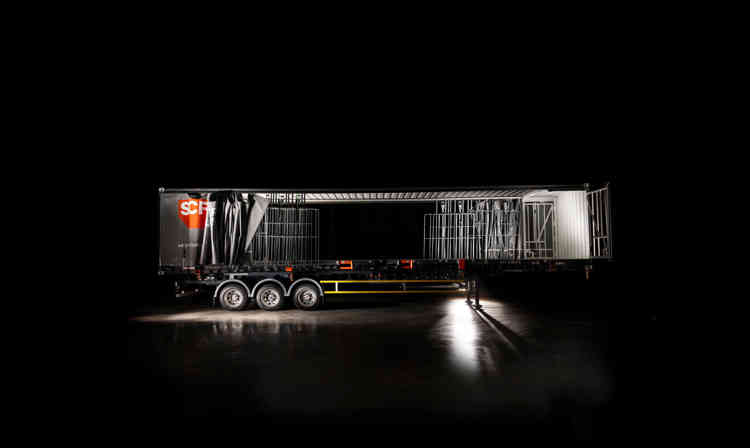

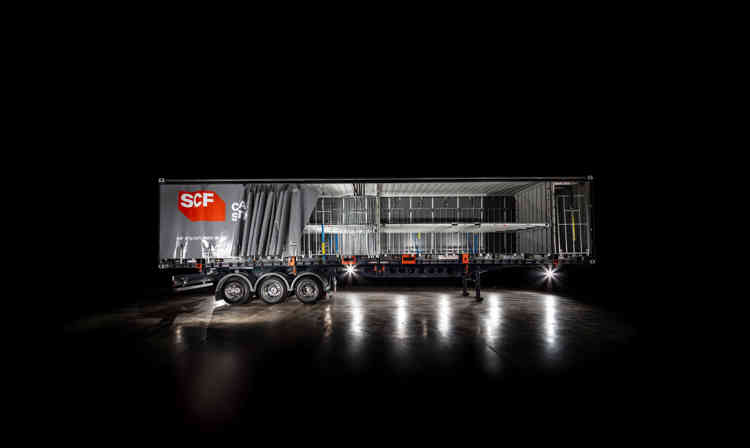

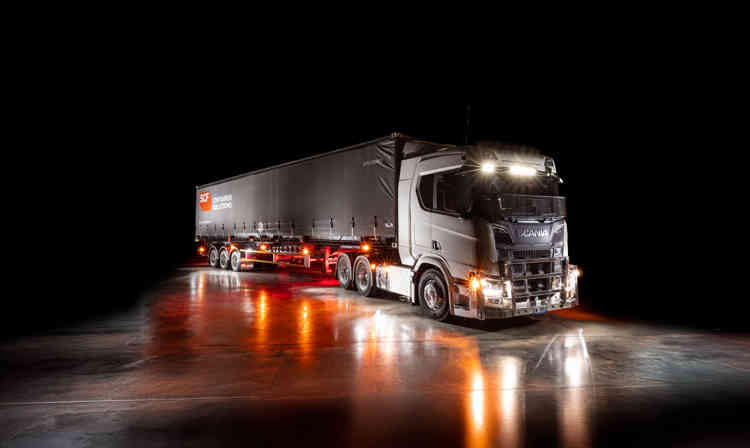

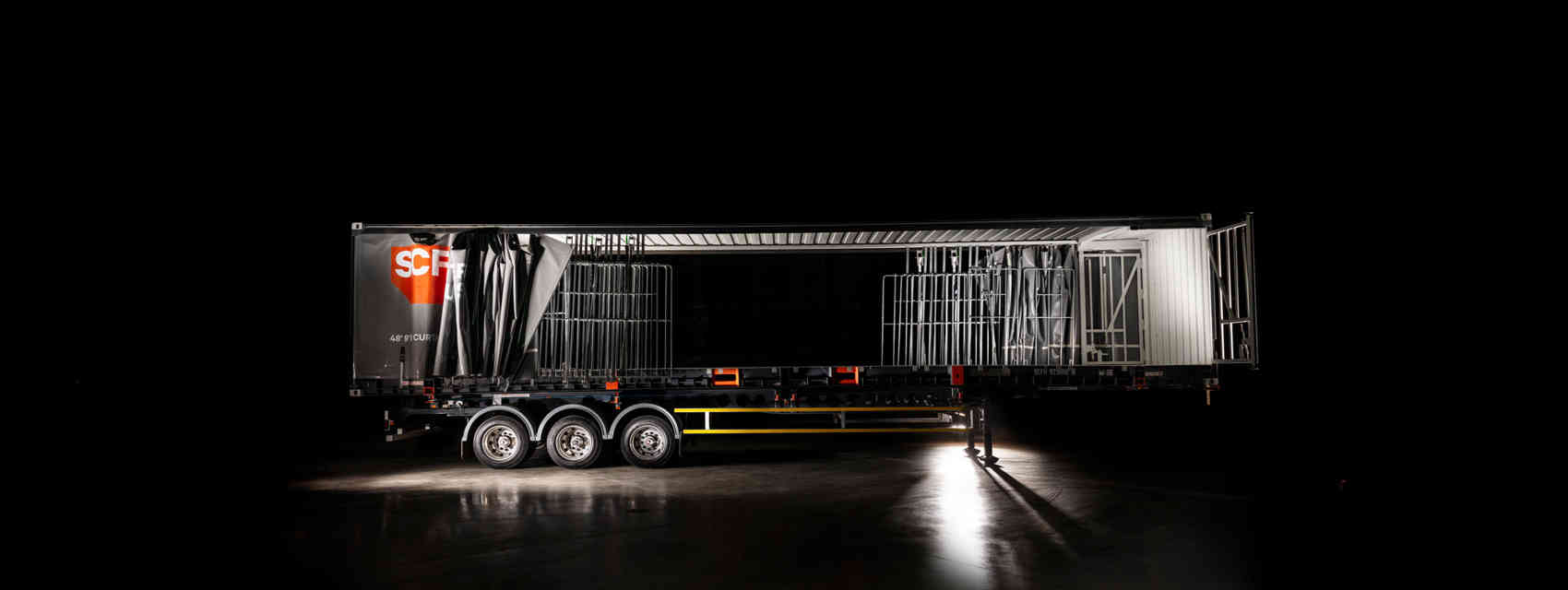

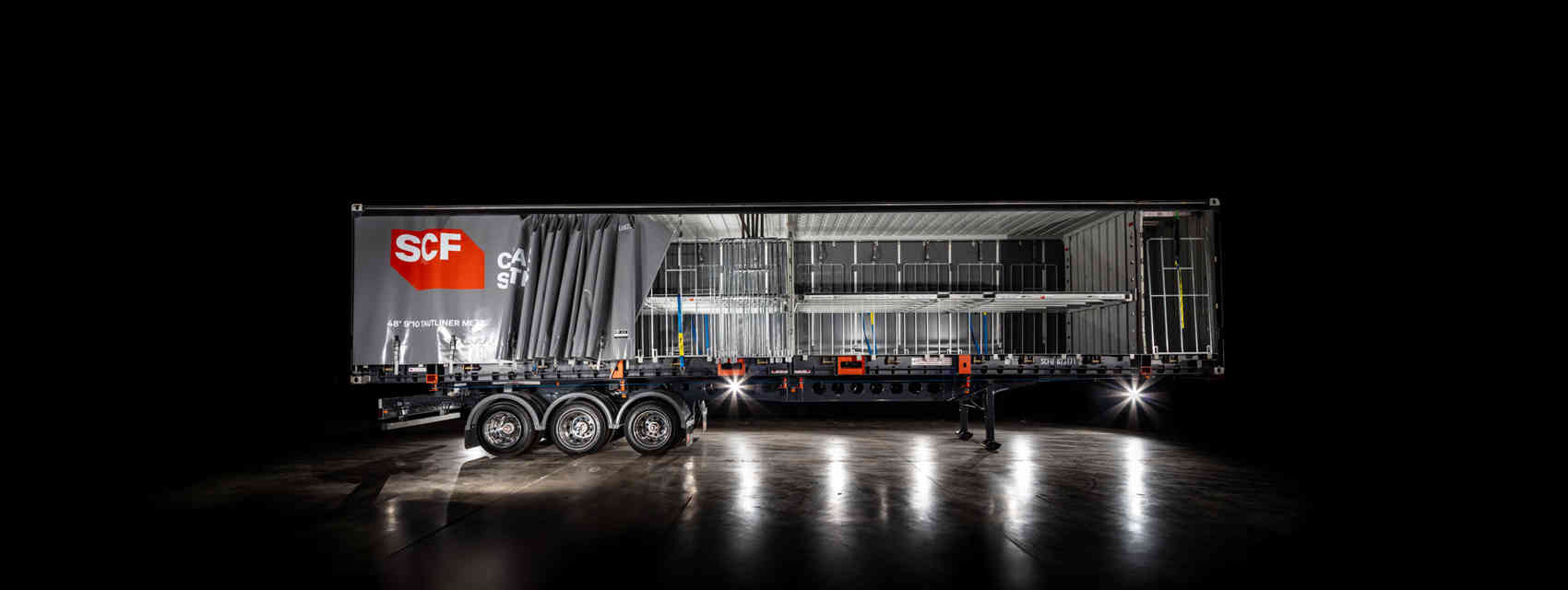

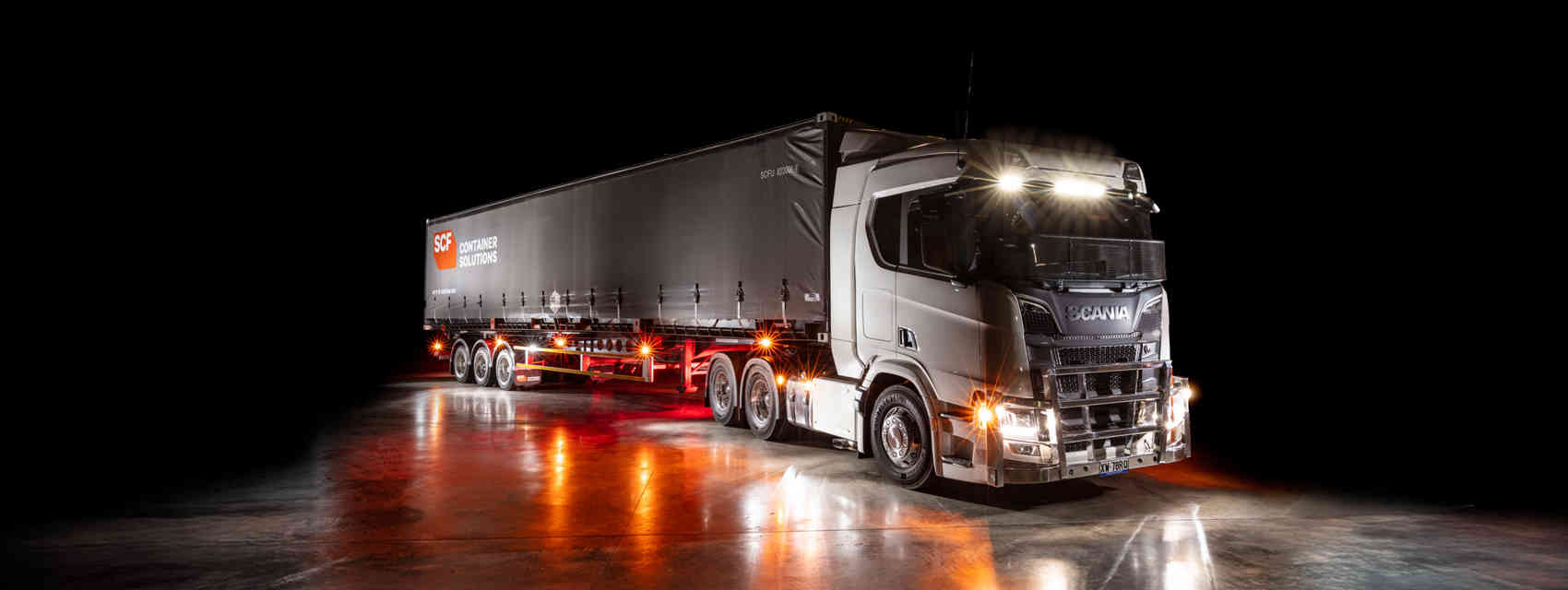

SCF 48Ft Curtain Taut Full Width Side Open SCF 48Ft Curtain Taut Full Width Side SCF 48Ft Curtain Taut Full Width Front Truck SCF Curtain Side Open

Tautliner Trailer Dimensions and Weights

The cubic capacity of a 48ft Tautliner container is 91m3.

Please note that the weights for Tare, Payload, and MGW listed below are approximate and subject to variation. These figures can vary based on specific trailer and container builds and customisable options available. For precise specifications tailored to your needs, please contact our sales team.

^ Indicative trailer + container weights
* Indicative container weights only

Internal (mm)
Length 14,526
Width 2,400
Height 2,623
External (mm)
Length 14,630
Width 2,500
Height 4,300
Weight (kg)
Tare 13,260^
Payload 24,500*
MGW 32,000*

Tautliner Trailer

Tautliner Trailer Dimensions

Specifications may vary between builds. 48ft Tautliner Container below. Contact us for specific dimensions on a 40ft Tautliner Trailer.

Tautliner Trailer - line drawing - SCF

Key Features

  • 2 pallet wide - store from 20 to 48 pallets
  • Mezzanine deck enables multi stacking of fragile pallets
  • Hanging posts and gates to protect cargo
  • Load binder winches
  • Full lashing rail to restrain cargo in transit
Get a Quote

You might also like

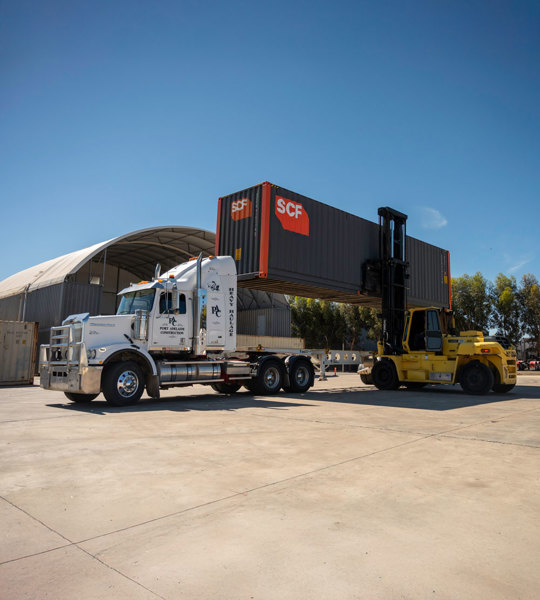

Skel Trailer

Skel Trailer

  • Approx 13.4m L x 2.5m W x 1.2m H

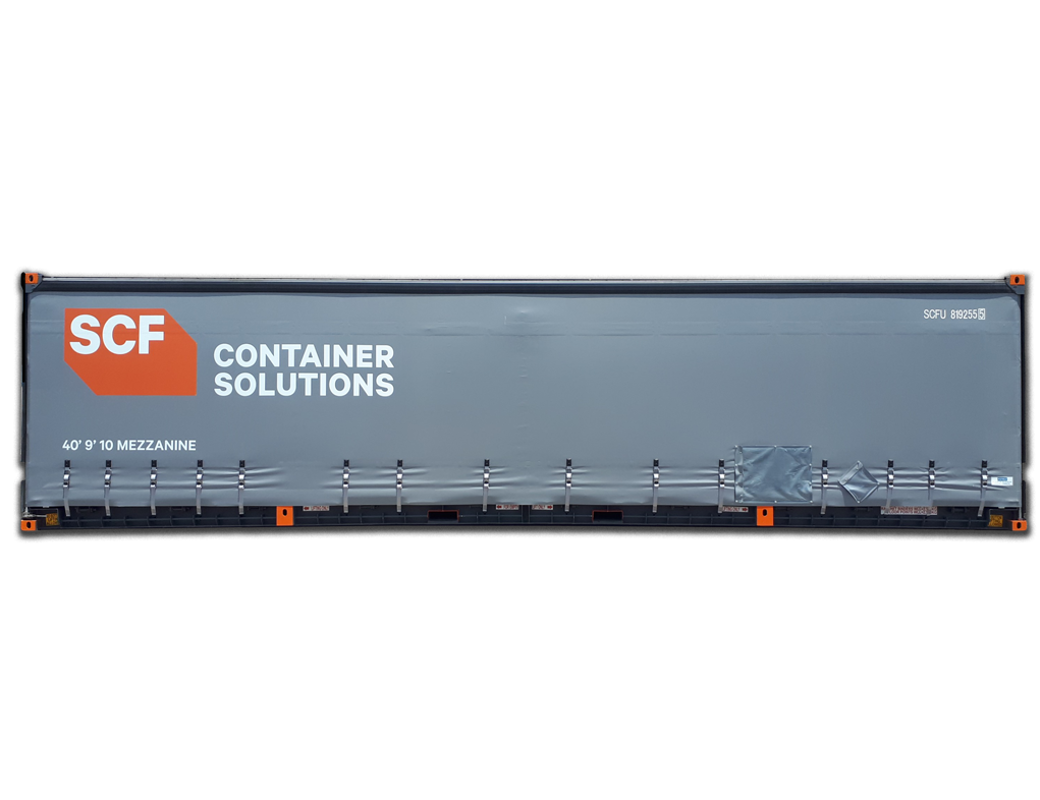

40ft Tautliner

40ft Tautliner Container

  • Approx 12.2m L x 2.5m W x 3m H
48ft Tautliner

48ft Tautliner Container

  • Approx 14.6m L x 2.5m W x 3m H

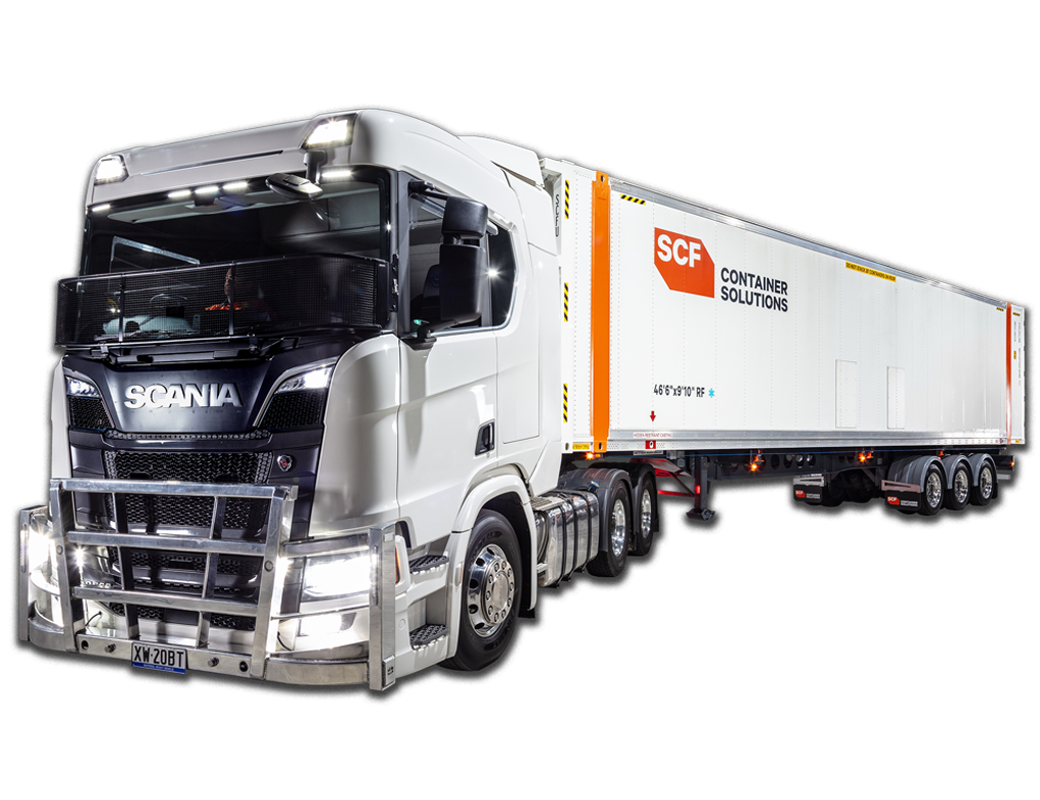

Refrigerated Trailer
