40ft Half Height Side Door Container

Dimensions Approx
Length 12.2m
Width 2.5m
Height 2m

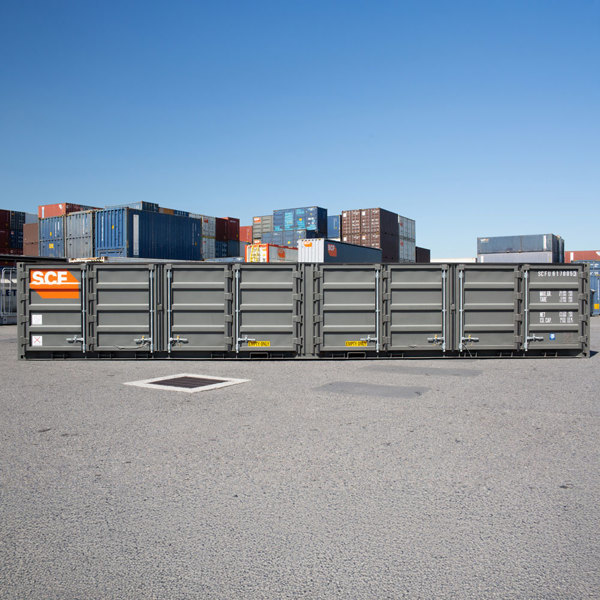

SCF's 40ft Half Height Side Door Shipping Container is suitable for all types of general transport, especially palletised and dense cargo. It is a popular choice for soft palletised cargo and beverages holding up to 20 pallets.

Product Banner Image - 40ft Half Height Side Door Container

40ft Half Height Side Door Container

SCF's 40ft Half Height Side Door Shipping Container is suitable for all types of general transport, especially palletised and dense cargo. It is a popular choice for soft palletised cargo and beverages holding up to 20 pallets.

Half Height Details

SCF's 40ft Half Height shipping container has a low tare weight for increased payload, maximising potential earnings with heavy loads. Shipping Containers can be double stacked on select rail routes creating space and cost efficiencies.

Steel side doors allow for fast HSE compliant operation, minimising labour time. It also provides increased protection on high risk damage areas to reduce ongoing costs and equipment downtime.

The Half Height shipping container has a range of features designed to increase flexibility and safety, including:

  • Large door opening width and height allows for loading efficiencies with larger pallets from both sides of the container
  • Maximum door swing with tiebacks for security
  • Load binder provisions to restrain cargo
  • Reinforced hinge system and door corrugation to reduce side impact damage
  • Ladder lashing

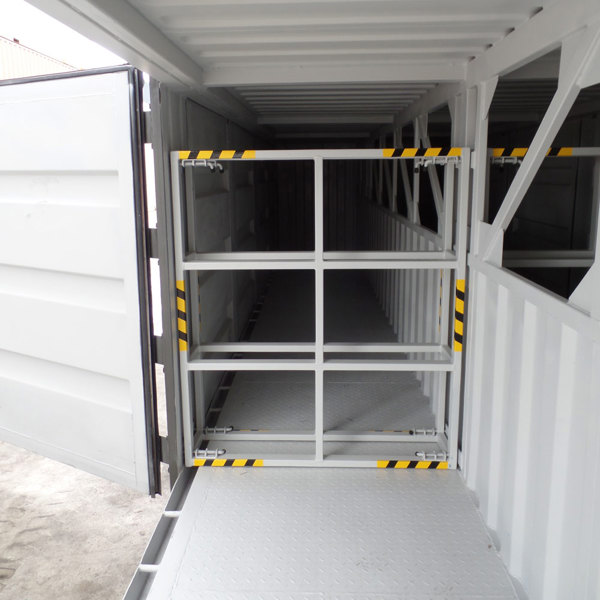

  • Centre wall design with freight buffers
  • Large door opening height
  • Loaded top lift from 40′ corner castings

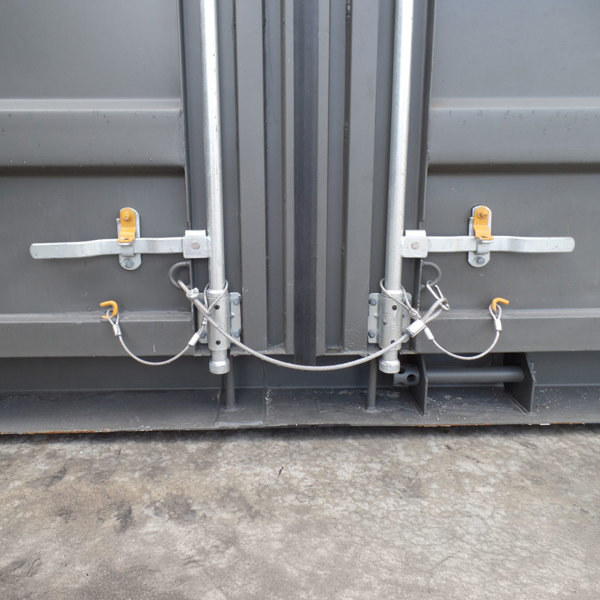

  • Door hardware designed to reduce racking and operation time
  • Steel flooring

40' Half Height Side Door Container Dimensions and Weight

Specifications may vary. Internal width per side of centre wall.

The cubic capacity of a 40ft half height side door container is 24.5m3.

40ft Half Height Container

Internal & external dimensions and weight of a 40ft half height container.

Internal (mm)
Length 12,086
Width 1,197
Height 1,695
External (mm)
Length 12,192
Width 2,500
Height 2,050
Weight (kg)
Tare 5,960
Payload 24,520
MGW 30,480

40ft Half Height Side Door Container

40ft Half Height Container

External dimensions of a 40ft Half Height Side Door Container.

40ft Half Height Side Door Container - line drawing - SCF

Key Features

  • Ladder lashing
  • Centre wall design with freight buffers
  • Large door opening height
  • Loaded top lift from 40′ corner castings
  • Door hardware designed to reduce racking and operation time
  • Steel flooring
Get a Quote

FAQ

Half Height Side Doors are popular for freight types such as prepackaged beverages and other palletised freight.

Rather than source standard containers used by shipping lines, SCF designs containers in house specifically for transport customers. This means that all SCF intermodal containers are manufactured with features that are relied upon by logistics, 3PL and transports companies across the country.

Yes, Half Height Side Doors can go on rail.
