20ft Double Side Door 20ft Double Side Door

20ft Double Side Door

20ft Double Side Door

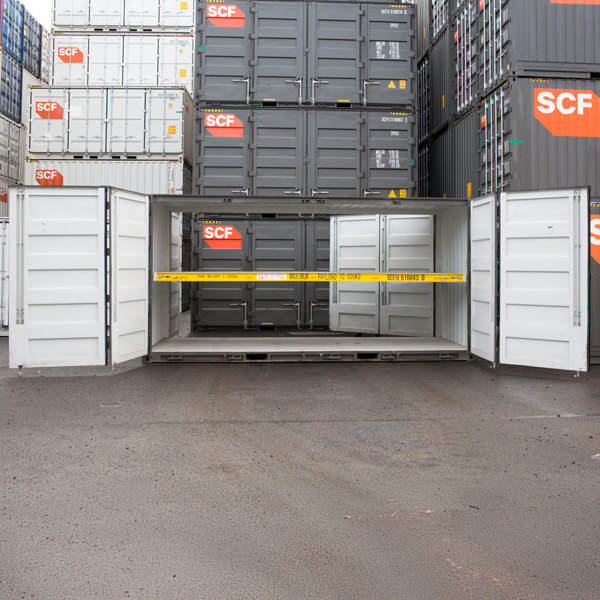

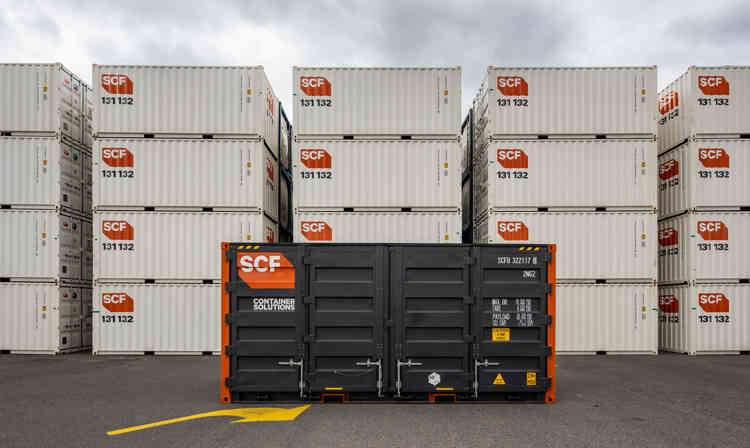

SCF’s 20ft Double Side Door container is one of the most flexible intermodal containers available in the market today. With easy access from both sides and multiple restraint points, the 20’ Double Side Door is suitable for multiple freight types and loading operations.

Key Features

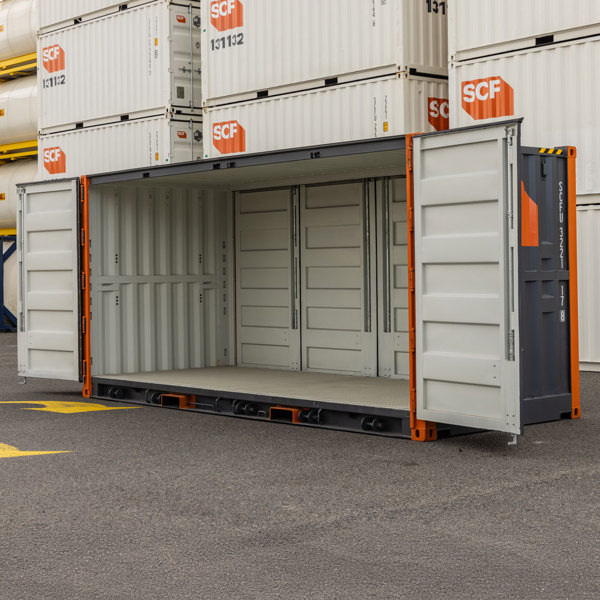

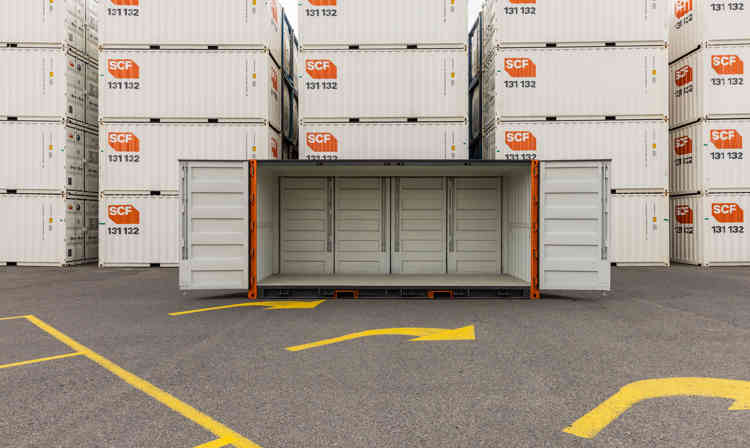

  • Full side opening on both sides of the container
  • 2 pallet wide
  • Ladder lashing system
  • Winch lashing system
  • Steel floor
  • Anti-racking design for easy door operation

Product Details

Built with high-quality materials, SCF’s 20ft double side door container provides the ultimate flexibility for multiple freight types. Ideal for 2 chep pallet wide freight, heavy or dense, including irregular freight such as steel coils and machinery.

Available in standard heights of 9’6 and 9’10, both versions are compatible with the SCF mezzanine deck system. This system allows for flexible freight heights.

For loading and unloading, steel side doors allow access for fast HSE compliant operation, minimising required labour time to operate.

Increased protection on high risk damage areas help reduce ongoing damage costs and equipment downtime.

SCF also produces a range of other sizes and variants to provide alternative capacity options to suit your requirements.

Options

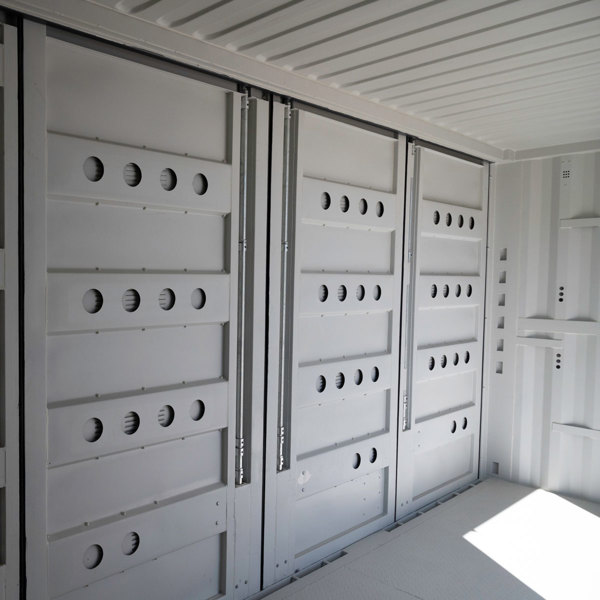

  • Vented system (for produce, gas cylinders or similar products)

  • Mezzanine deck system

  • Lightweight models

  • Alternative lashing systems

  • Brand (colours and logo)

20ft Double Side Door Dimensions and Weight

Specifications may vary

9'6 Variant

The cubic capacity of a 9'6 variant 20ft double side door container is 37m3.

Internal
Length (mm) 5,970
Width (mm) 2,400
Height (mm) 2,587
External
Length (mm) 6,058
Width (mm) 2,500
Height (mm) 2,896
Weight
Tare (kg) 3,670
Payload (kg) 30,330
MGW (kg) 34,000

9'10 Variant

The cubic capacity of a 9'10 variant 20ft double side door container is 38.5m3.

Internal
Length (mm) 5,970
Width (mm) 2,400
Height (mm) 2,688
External
Length (mm) 6,058
Width (mm) 2,500
Height (mm) 2,997
Weight
Tare (kg) 4,100
Payload (kg) 29,905
MGW (kg) 34,000

9'6 Variant

How is this container delivered?

SCF Shipping Containers - Delivery Method - Tilt Tray

Tilt Tray

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

SCF Shipping Containers - Delivery Method - Side Loader

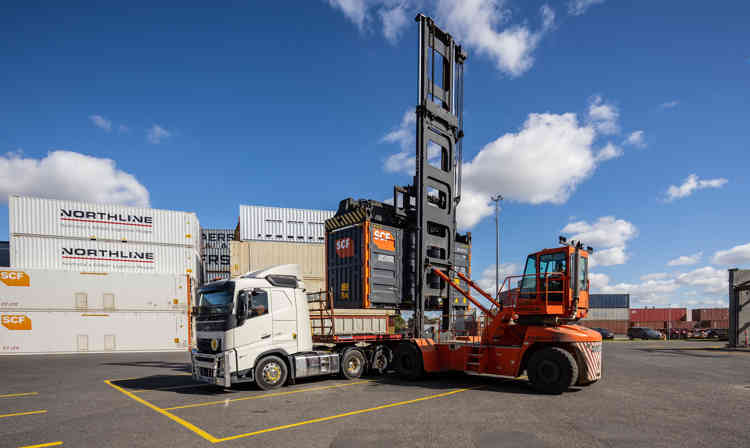

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.

SCF Shipping Containers - Delivery Method - Hiab Crane

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
