20ft Hoarding Platform 10kPa 20ft Hoarding Platform 10kPa

20ft Hoarding Platform 10kPa

20ft Hoarding Platform 10kPa

SCF's 10kPa Hoarding Platform provides overhead protection that complies with Australian standards. Protect your staff on site with easy installation.

Key Features

  • Cantilevered walkways
  • Built in facilities for certified hand rails
  • AS 4586-2013, Class P5 slip rating when used as cantilevered walkways
  • Complies with Australian Standards AS4100, AS1170.1 & AS1170.2
  • Code of practice 1995-overhead protective structure
  • Wind rain guard option designed to help reduce water & wind ingress

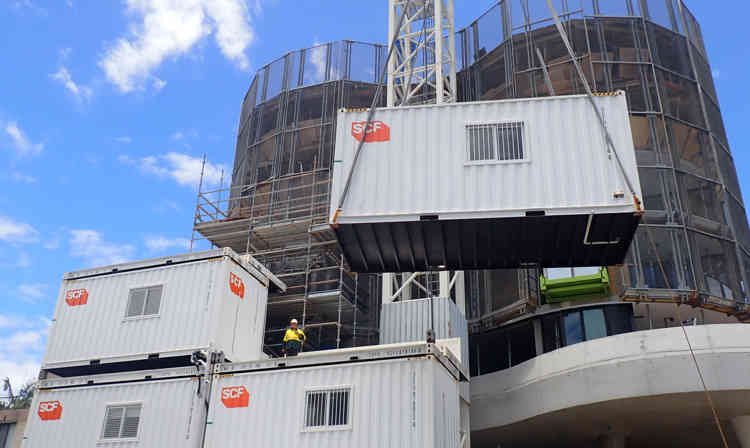

  • Provides overhead crane storage for space constrained sites
  • SCF Proprietary Handrails optional - gapless, modular, lightweight

Product Details

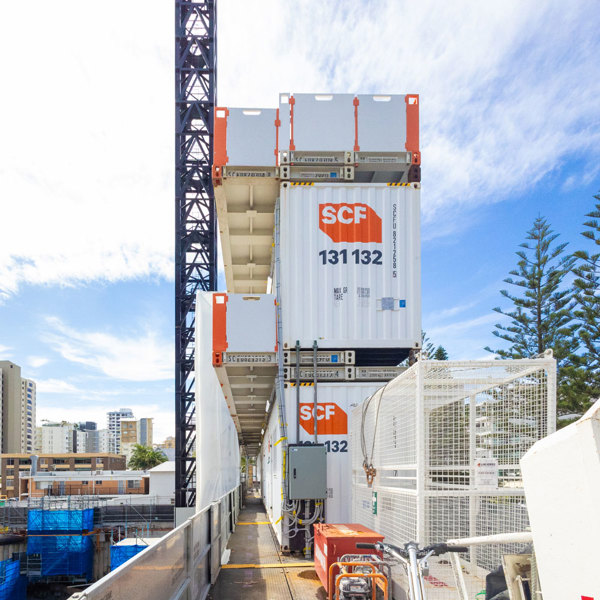

SCF's 10kPa hoarding platform provides overhead protection for staff in site sheds, portable buildings and on walkways.

The platform complies with Australian Standards AS4100 steel structures, AS1170.1 structural design actions, AS1170.2 wind actions and the Code of practice 1995-overhead protective structure.

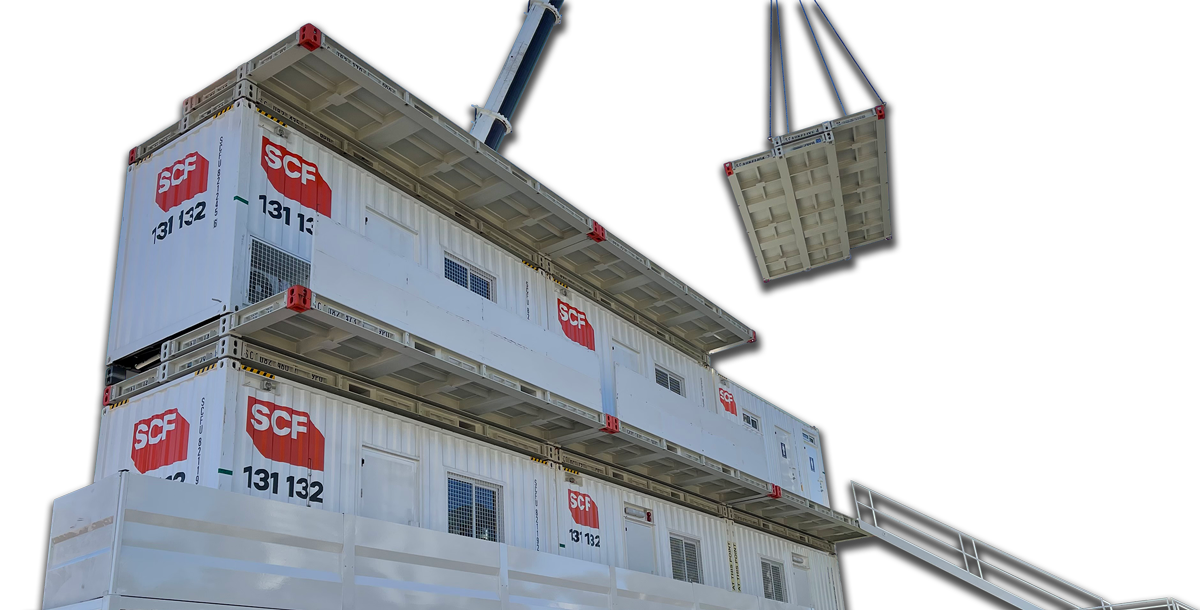

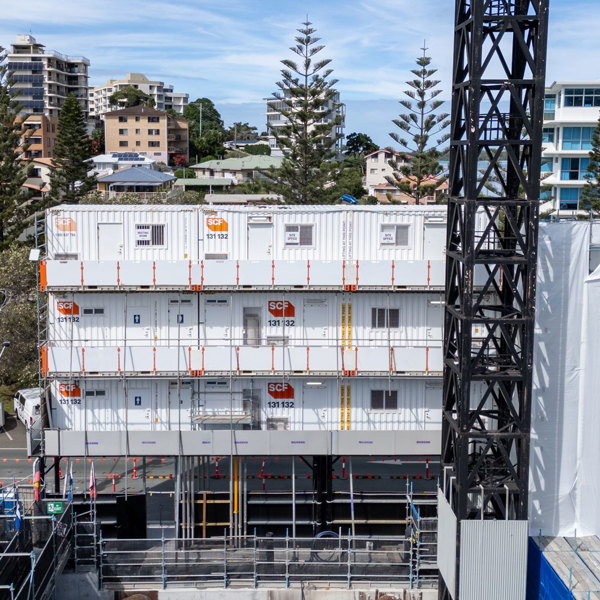

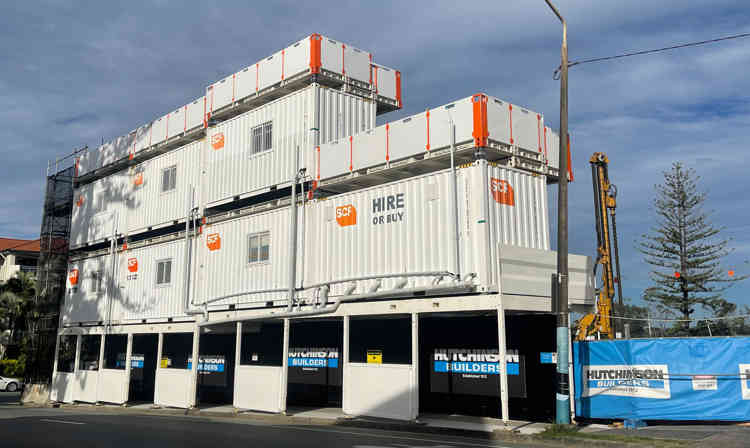

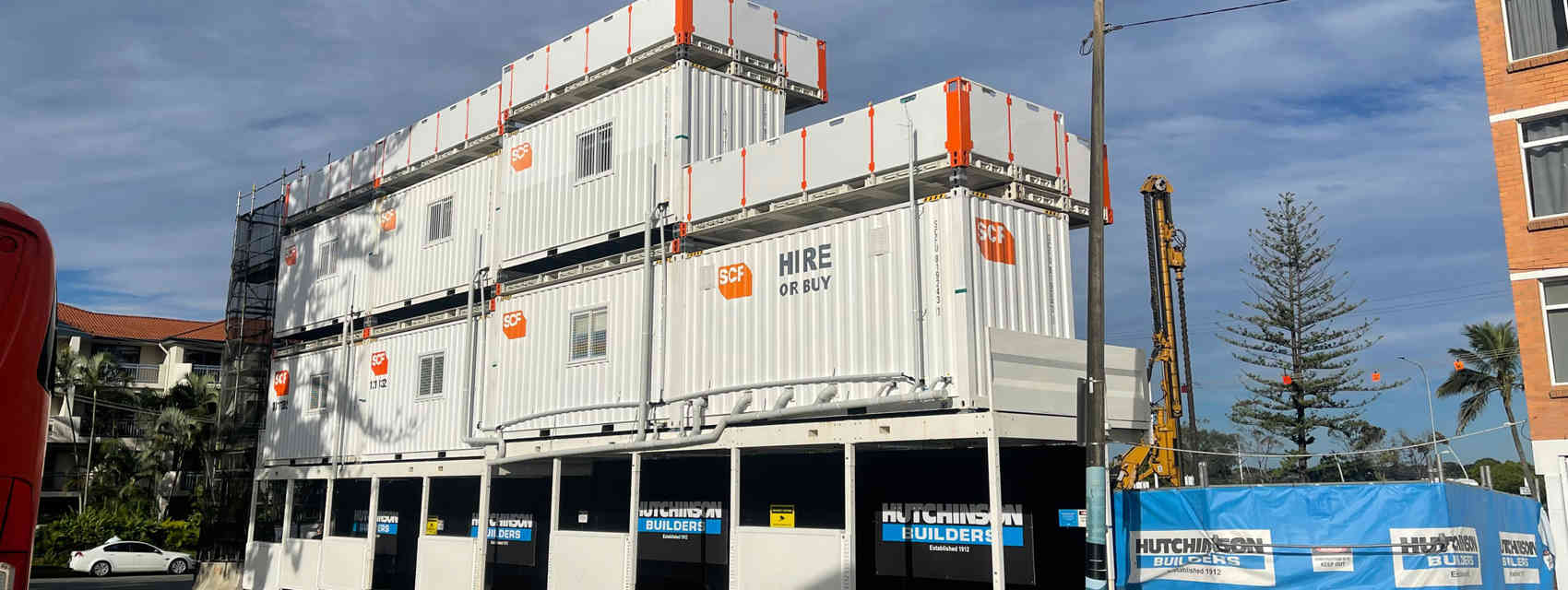

When your site is space constrained, these platforms enable multi-stacking options without compromising on safety. They can also provide protection from the weather, both the scorching sun and steady rain.

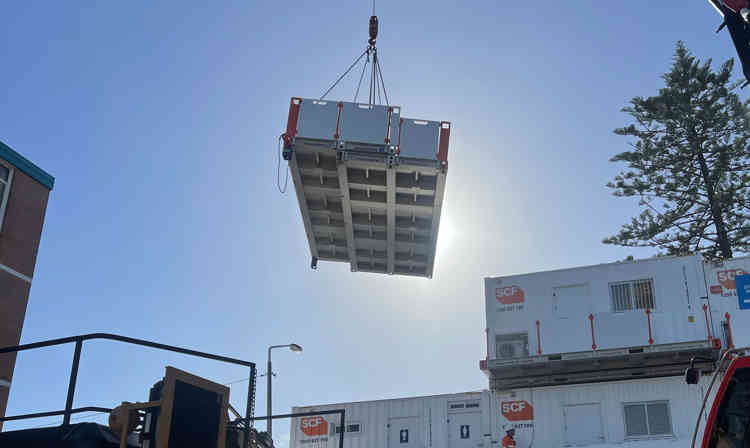

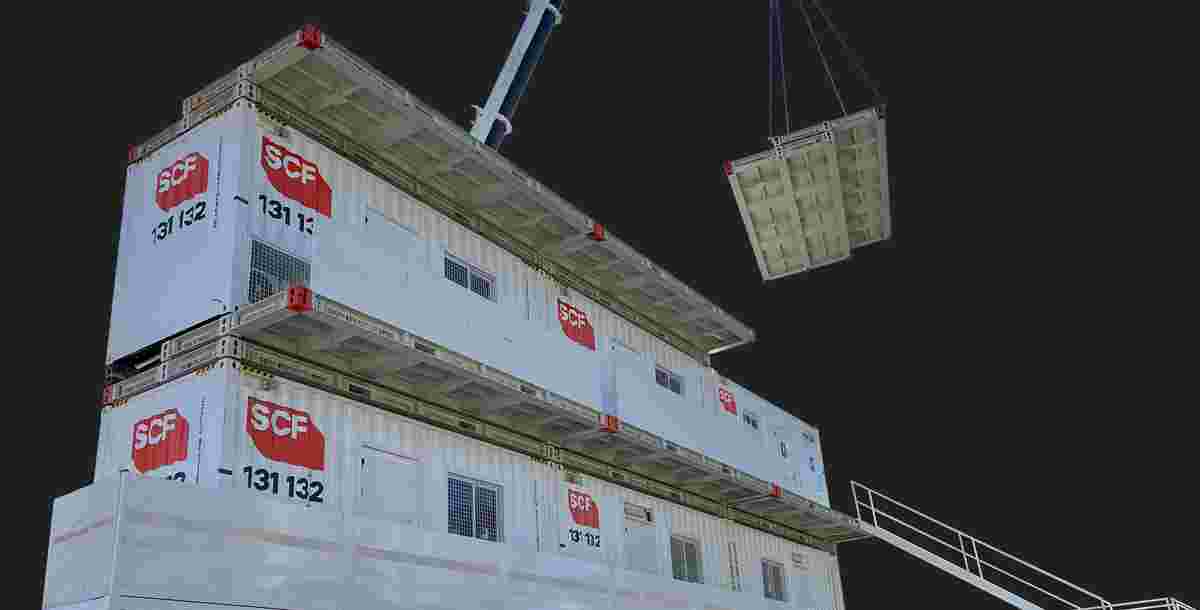

Integrated certified anchor points assist with safe installation or dismantle when working at heights.

A range of options make it a flexible option for your worksite. Consider them a key element to any construction project that you're managing.

Options

  • Wind rain guard to help reduce water and wind ingress

  • SCF Proprietary Handrails

    • SCF gapless handrails are AS1657 compliant
    • Modular setup that is easy to install and adjust throughout project
    • Lower weight than traditional handrails

20ft Hoarding Platform 10kPa Dimensions and Weight

Internal
Length (mm) N/A
Width (mm) N/A
Height (mm) N/A
External
Length (mm) 6,058
Width (mm) 2,438
Height (mm) 260
Weight
Tare (kg) 2,000
Payload (kg) 20,000
MGW (kg)

How is this container delivered?

SCF Shipping Containers - Delivery Method - Tilt Tray

Tilt Tray

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

SCF Shipping Containers - Delivery Method - Hiab Crane

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.

SCF Shipping Containers - Delivery Method - Side Loader

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.

SCF's 10kPa Hoarding Platform
