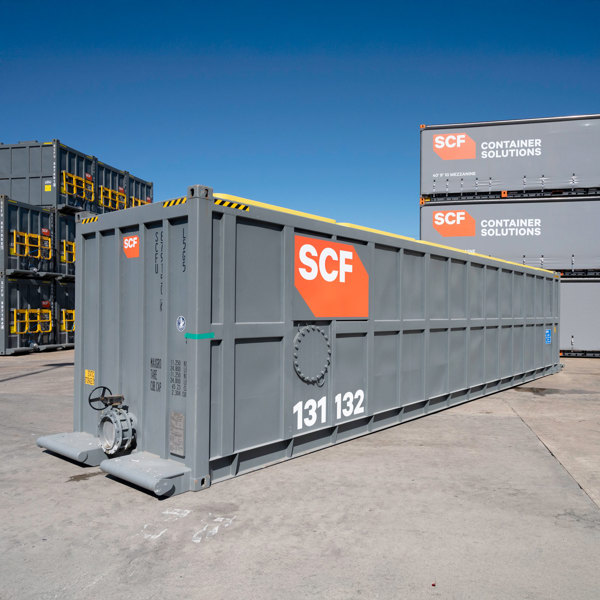

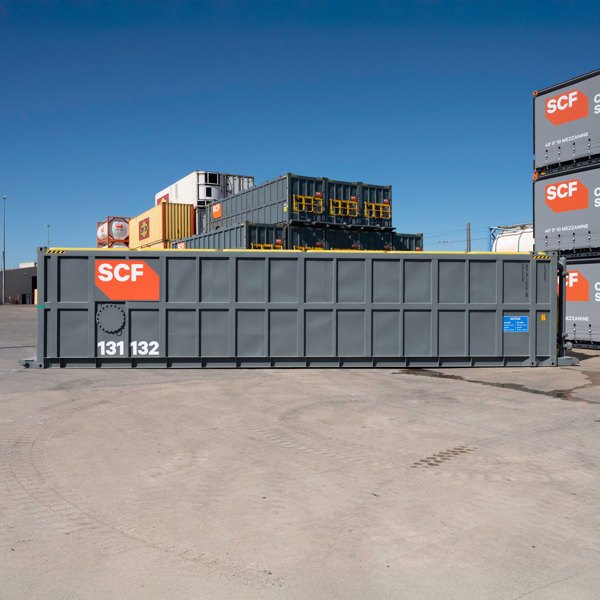

45ft Flowback Tank

Dimensions Approx
Length 13.7m
Width 2.4m
Height 2.9m
Internal Capacity75m3

The SCF 45ft Flowback tank is designed for large scale liquid sediment removal and water treatment. This tank has 484BBL capacity (77,000 L) and is compliant for both road and rail transport allowing for rapid deployment in almost any location.

Product Banner Image - 45ft Flowback Tank

45ft Flowback Tank

The SCF 45ft Flowback tank is designed for large scale liquid sediment removal and water treatment. This tank has 484BBL capacity (77,000 L) and is compliant for both road and rail transport allowing for rapid deployment in almost any location.

Flowback Tank Details

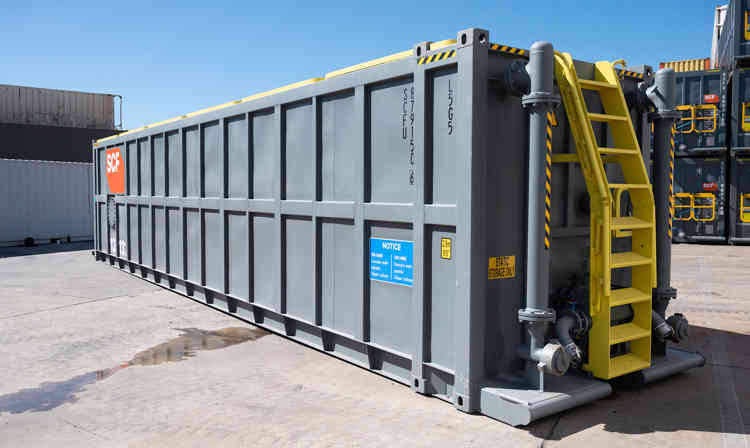

Built as an open top tank with a fold down gantry system, operators can safely access the top of the tank and the central weir to treat water.

Designed for the purpose of removing suspended solids from water with SCF's sediment removal system, the weirs encourage solids to drop from suspension and settle in the bottom of the tank.

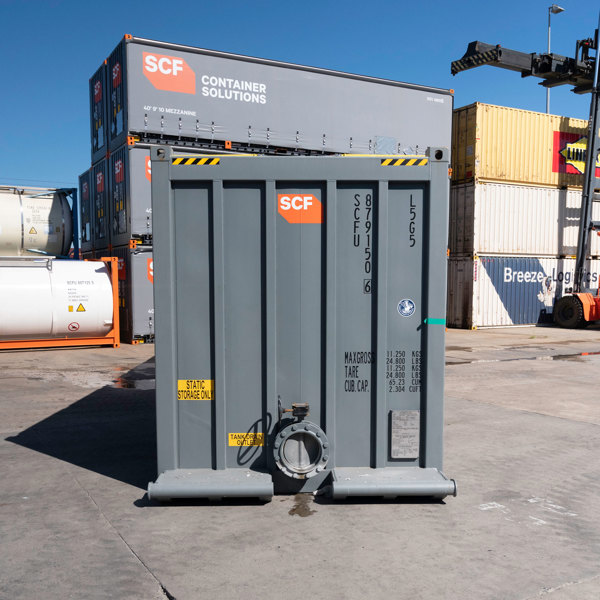

The oversize end valve and removable weirs allow the solids to be easily washed out of the tank at the end of each project.

Similar to our 48ft Wheeled Bulk Storage Tank, our Flowback can hold up to 77,000 L as a single large storage receptacle, or can be connected in sequence together to allow for further separation.

  • AS1657 compliant stair and hand rail system
  • 484BBL capacity (77,000L)
  • Access to the top of the tank
  • Built-in triple weir system to assist in sediment separation

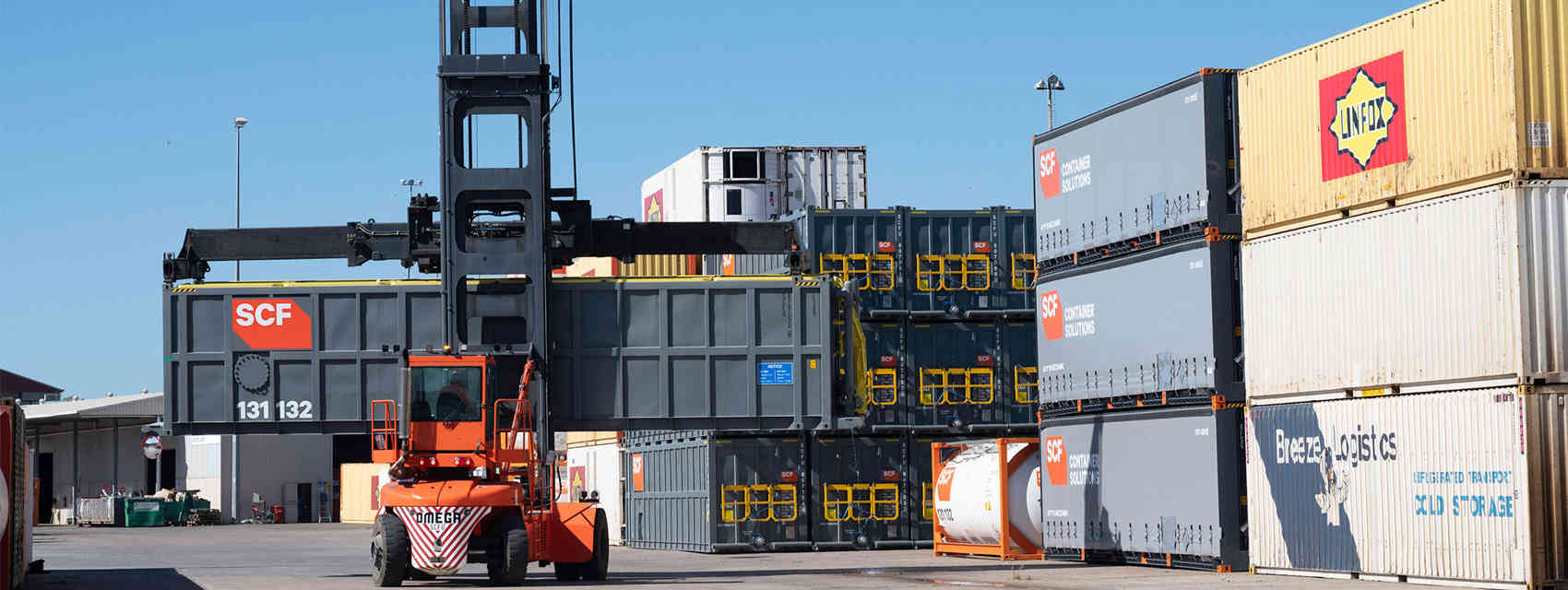

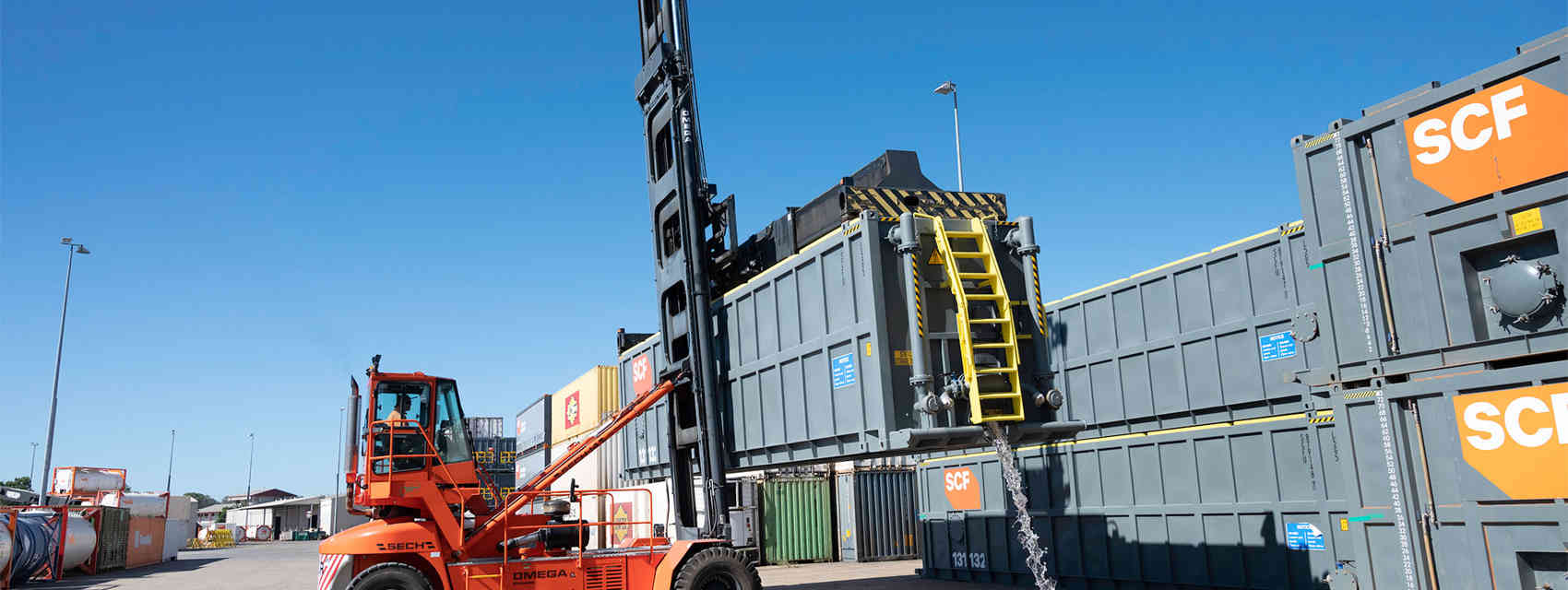

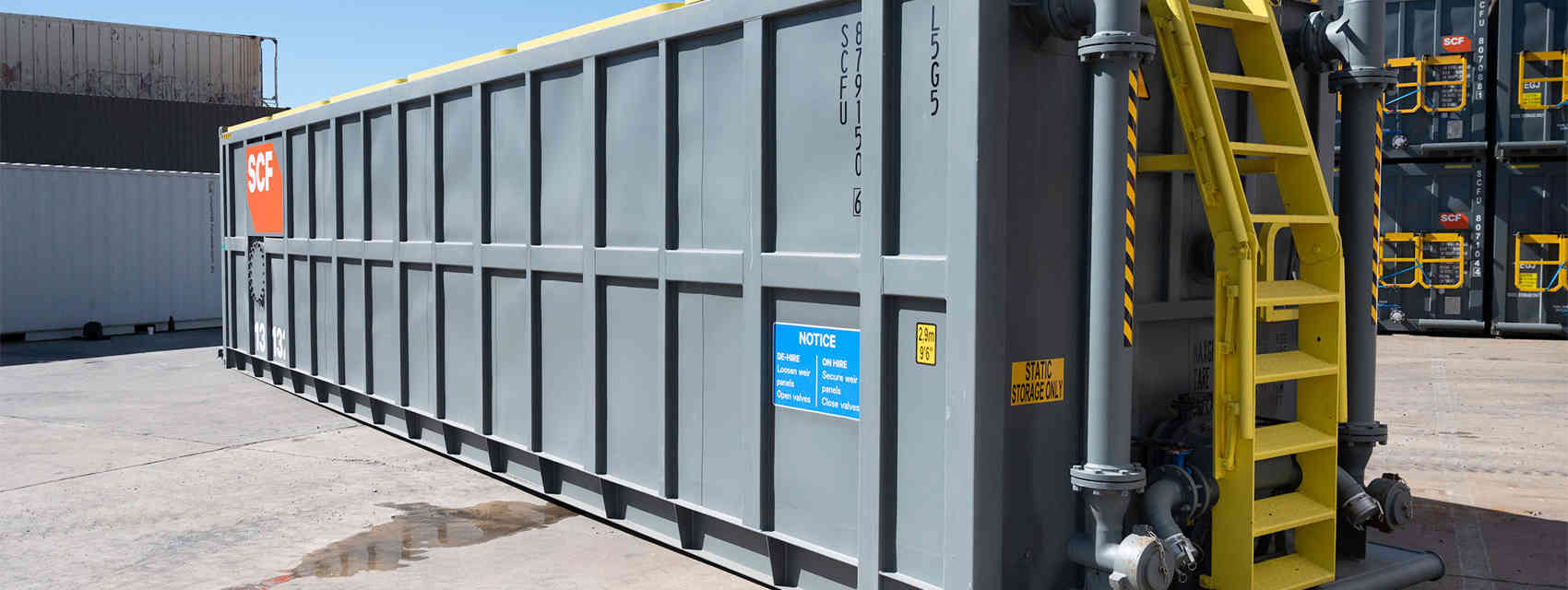

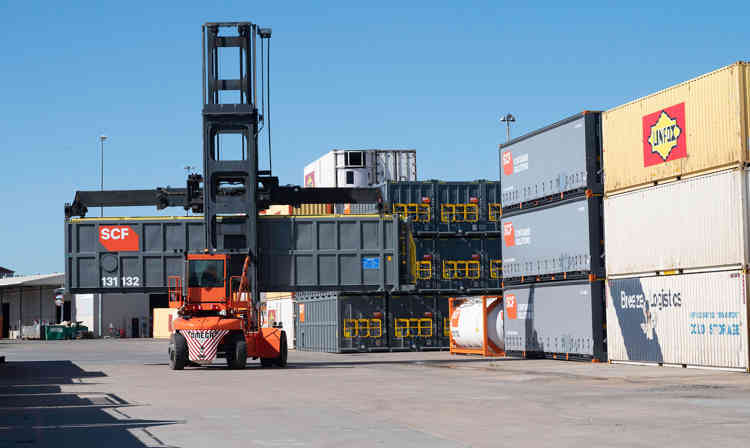

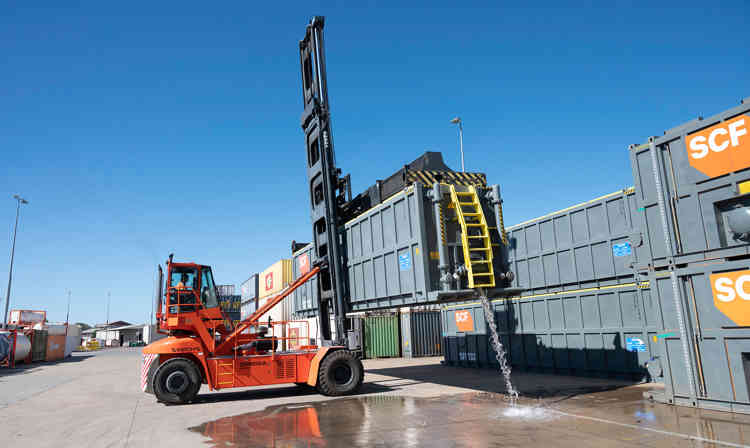

SCF 45Ft Flowback Side End Feature SCF 45Ft Flowback Angle Lift Feature SCF 45Ft Flowback Drain Feature

45ft Flowback Tank Dimensions, Volume and Weight

Specifications may vary. The below external dimensions assume the gantry is not in the raised position.

Cubic capacity 75 m3
Volume
Litres 75,000
75

External (mm)
Length 13,716
Width 2,438
Height 2,896
Weight (kg)
Tare 8,775
Payload 76,000
MGW 84,775

45ft Flowback Tank

Flowback External Dimensions

External dimensions of a Flowbank Tank.

45ft Flowback Tank - line drawing - SCF

Key Features

  • AS1657 compliant stair and hand rail system
  • 484BBL capacity (77,000L)
  • Access to the top of the tank
  • Built-in triple weir system to assist in sediment separation
Get a Quote

How is this container delivered?

Tilt Tray

This is the most common method. We tilt the truck’s tray, then slide the container off while the vehicle slowly moves forward. Just note that the container’s height will increase when it’s tilted – so if your site has overhead obstacles (like power lines) we may need to go with another method.

Hiab Crane

We use Hiab cranes when there’s not enough space for a side loader or tilt tray – or if your site has other tricky obstacles to manoeuver around (like fences). The crane lifts and then places the shipping container. This method also makes it easy to place containers at an angle, or on raised areas.

FAQ

A 45ft Flowback Tank can hold 75m3. Or 75,000 Litres.

A 45ft Flowback Tank is 13.7m L x 2.4m W x 2.9m H.

A tank farm configuration is when you connect multiple tanks at one site to hold a larger volume of liquid.

SCF's Head Office is in Adelaide, with a second dedicated office in Sydney.

Our depots all have sales offices (except Adelaide and Sydney), and are spread across the country in MelbourneSydneyBrisbaneTownsvilleDarwinAdelaide and Perth

For a full list of our locations, including depots and sales offices, check out Our Locations.
