40ft Pallet Wide

Dimensions Approx
Length 12.2m
Width 2.5m
Height 2.9m
Pallet Wide x2
Pallet Spaces x40

SCF’s 40ft Pallet Wide container is wide enough to fit two chep pallets side by side to maximise equipment utilisation. Easily fit up to 20 pallets for safe and secure transport. Or 40 pallets by adding our optional Vertical Load Bars.

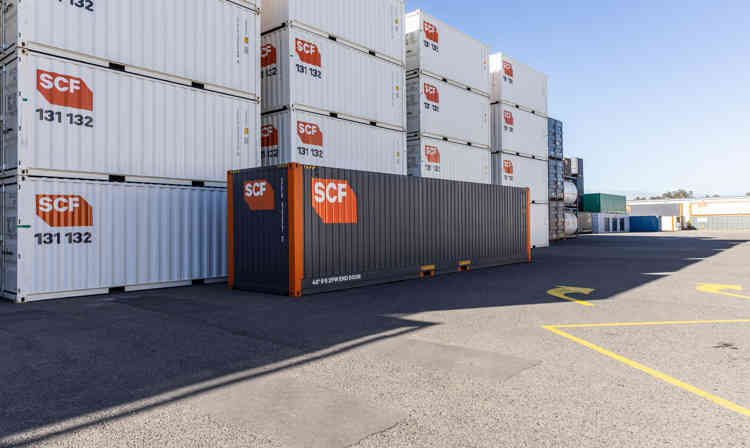

Product Banner Image - 40ft Pallet Wide

40ft Pallet Wide

SCF’s 40ft Pallet Wide container is wide enough to fit two chep pallets side by side to maximise equipment utilisation. Easily fit up to 20 pallets for safe and secure transport. Or 40 pallets by adding our optional Vertical Load Bars.

Product Details

Maximise space and minimise freight costs by using a SCF 40ft pallet wide container. Suitable for palletised freight, heavy dense cargo or irregular freight. This container can carry up to 40 pallets with the capacity to load pallets 2 wide and 2 high with the use of the vertical load bar option.

40 pallets not enough? Consider a 48ft Container in 24 pallet or 48 pallet (with vertical load bar option) configurations.

Suitable for transport on road or rail, SCF’s pallet wide containers have been built strong to protect cargo in transit whilst minimising damage.

With our 25+ years in intermodal experience, SCF has a range of sizes and variants to provide alternative capacity options to suit your requirements.

  • Tie rails to secure cargo
  • Lashing rings to secure cargo
  • SCF custom base arrangement with reinforced floors

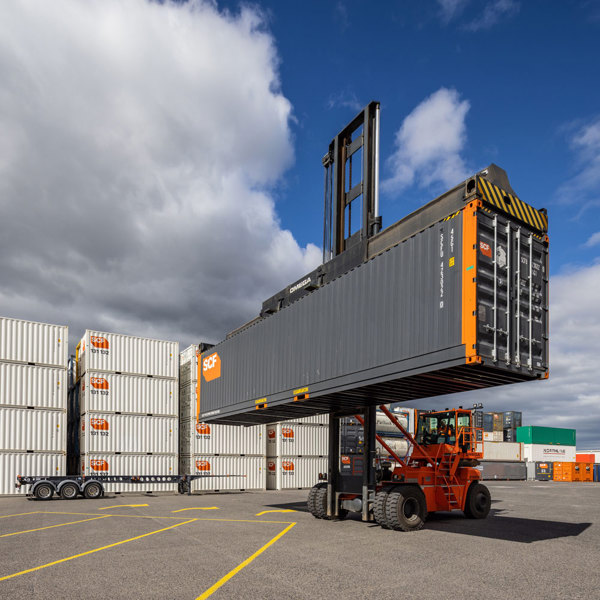

  • 40’ Handling points
  • Reinforced handling points to reduce damage
  • F-track for freight restraint - optional

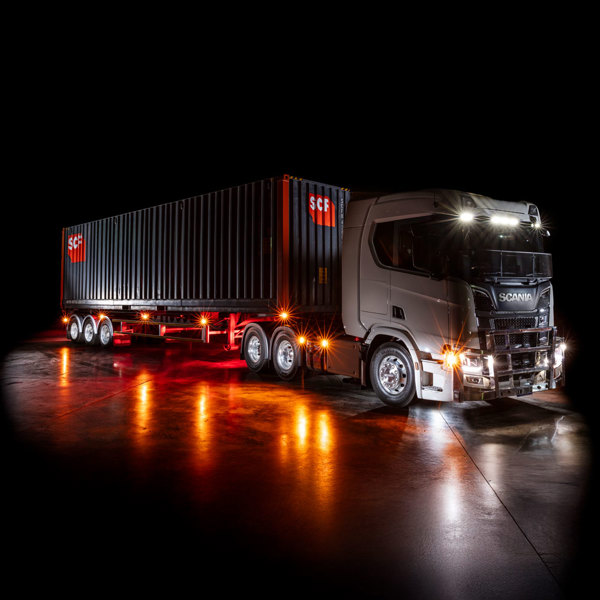

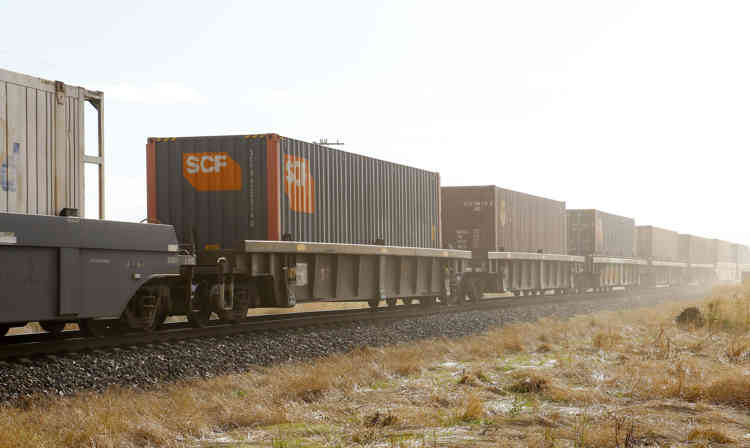

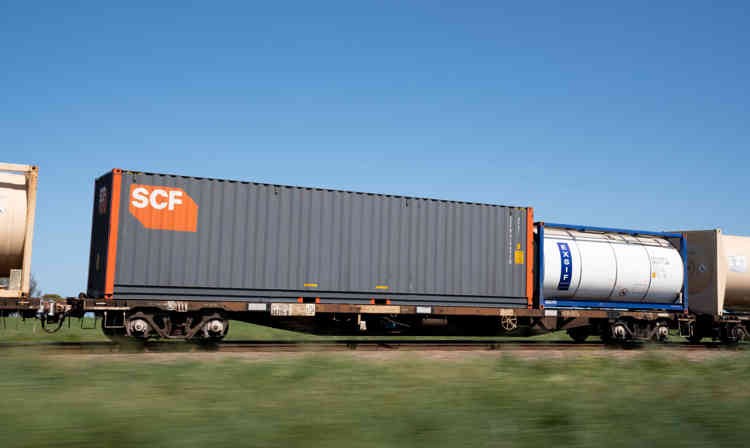

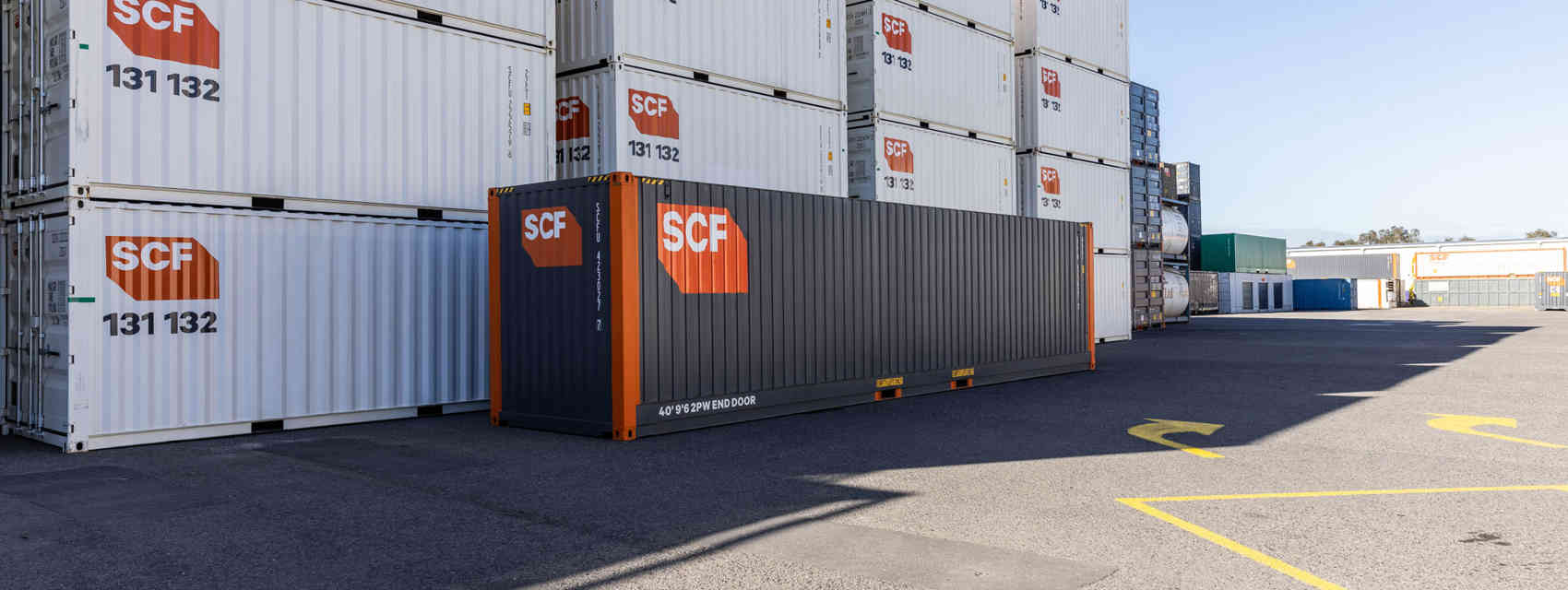

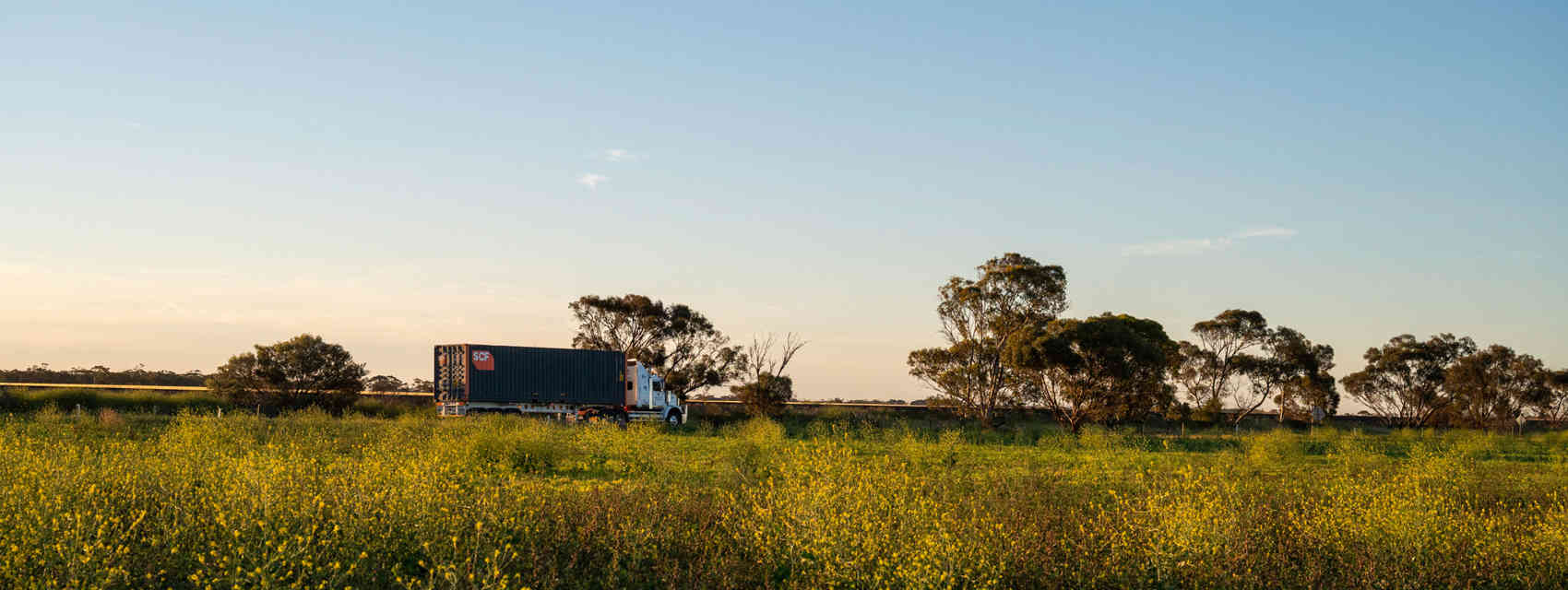

SCF 40Ft Pallet Wide Truck Full Width SCF 40Ft Pallet Wide Side Full Width SCF 40Ft Pallet Wide Train SCF 40Ft Pallet Wide Rail Wagon

40ft Pallet Wide Dimensions and Weight

Specifications may vary

The cubic capacity of a 40ft pallet wide container is 78m3.

Internal (mm)
Length 12,041
Width 2,414
Height 2,695
External (mm)
Length 12,192
Width 2,462
Height 2,896
Weight (kg)
Tare 4,670
Payload 29,330
MGW 34,000

40ft Pallet Wide

40ft Pallet Wide - line drawing - SCF

Key Features

  • Tie rails to secure cargo
  • Lashing rings to secure cargo
  • SCF custom base arrangement with reinforced floors
  • 40’ Handling points
  • Reinforced handling points to reduce damage
  • F-track for freight restraint - optional
Get a Quote

FAQ

Without Vertical Load Bars, you can fit 20 pallets. With Vertical Load Bars, that doubles to 40 pallets.

All SCF intermodal containers are designed and built to fit two pallets side by side. This maximises the internal space to support the efficient transport of pallets.

Rather than source standard containers used by shipping lines, SCF designs containers in house specifically for transport customers. This means that all SCF intermodal containers are manufactured with features that are relied upon by logistics, 3PL and transports companies across the country.

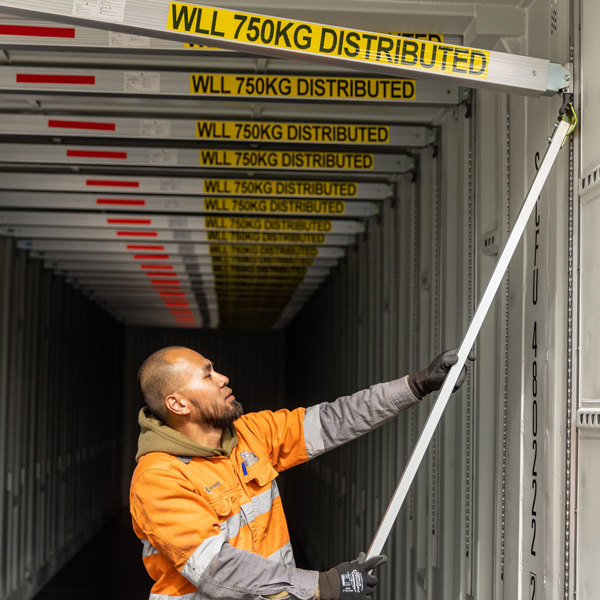

Vertical Load Bars (VLB) are installed inside the container, and can be lowered by a single user with the included VLB tool to a desired height. The tool protects the user from injuries (think pinched fingers) and also makes it easy to reach the load bars when they are in the raised 'inactive' position.

When deployed, Vertical Load Bars provide a strong base that pallets can be stacked on, without placing any pressure on pallets underneath. This provides users with two levels to safely place pallets on, effectively doubling the internal pallet capacity of a container.

You might also like

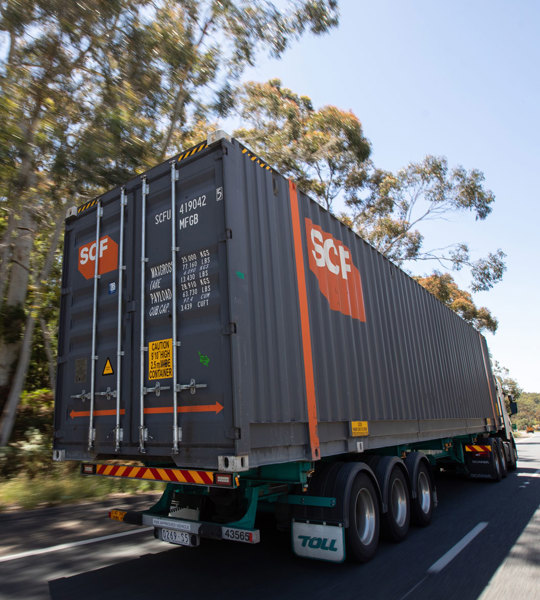

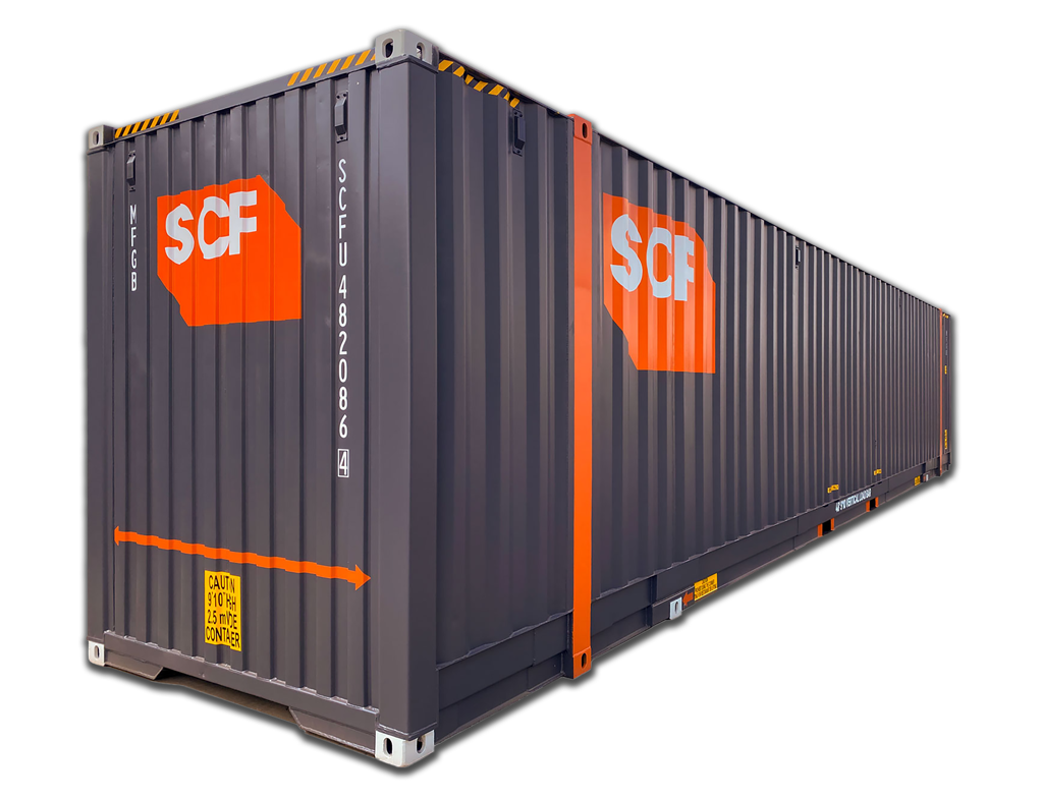

48ft Pallet Wide
