40ft Tautliner Container

Dimensions Approx
Length 12.2m
Width 2.5m
Height 3m
Pallet Wide x2
Pallet Spaces x40

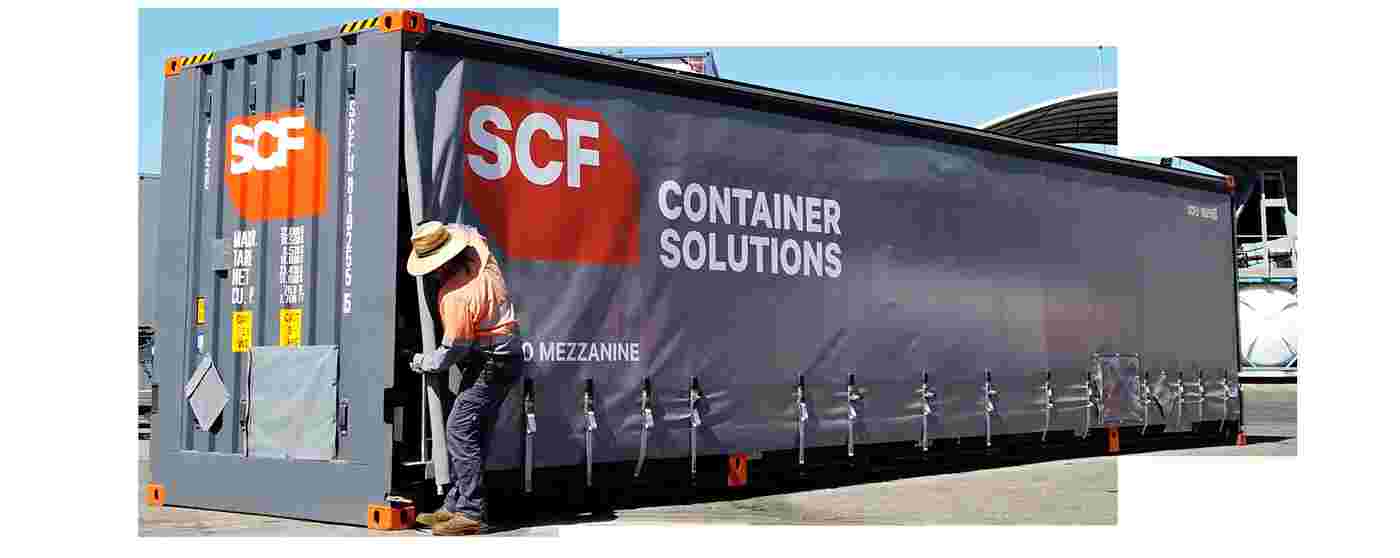

SCF’s 40ft Tautliner Container (also referred to as a Curtain Side container) is ideal for both palletised and irregular freight profiles. The curtain enables access from both sides for easy operation and the intelligent design allows one person to access the unit safely.

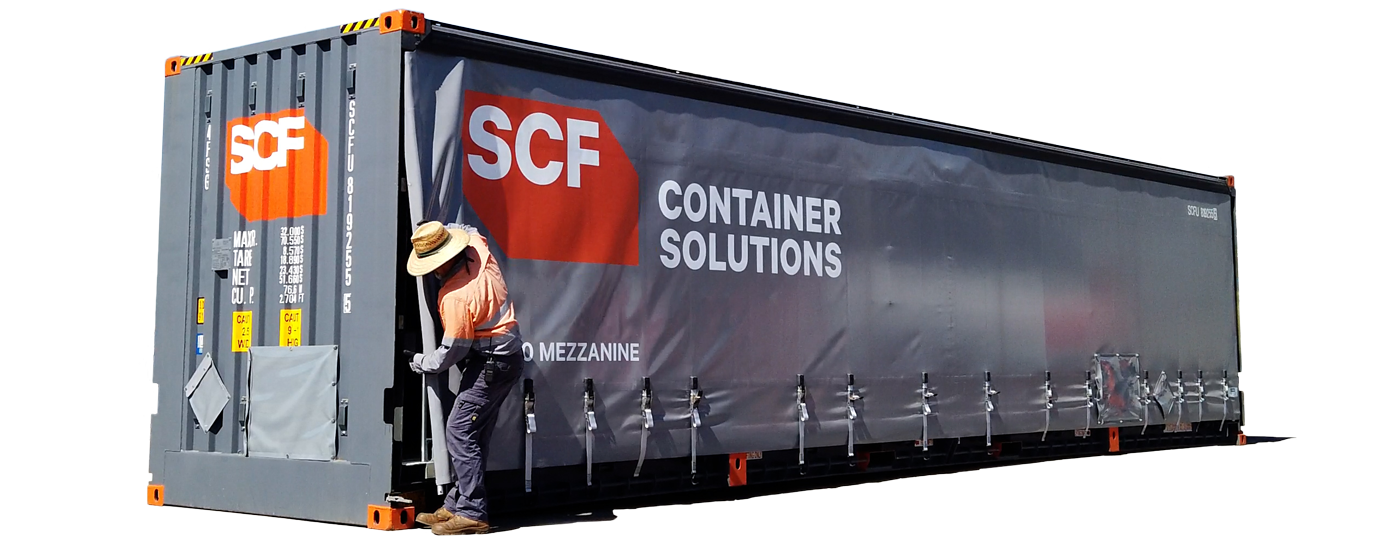

Product Banner Image - 40ft Tautliner Container

40ft Tautliner Container

SCF’s 40ft Tautliner Container (also referred to as a Curtain Side container) is ideal for both palletised and irregular freight profiles. The curtain enables access from both sides for easy operation and the intelligent design allows one person to access the unit safely.

Product Details

SCF's 40ft Tautliner container provides easy loading and unloading access for freight on both sides.

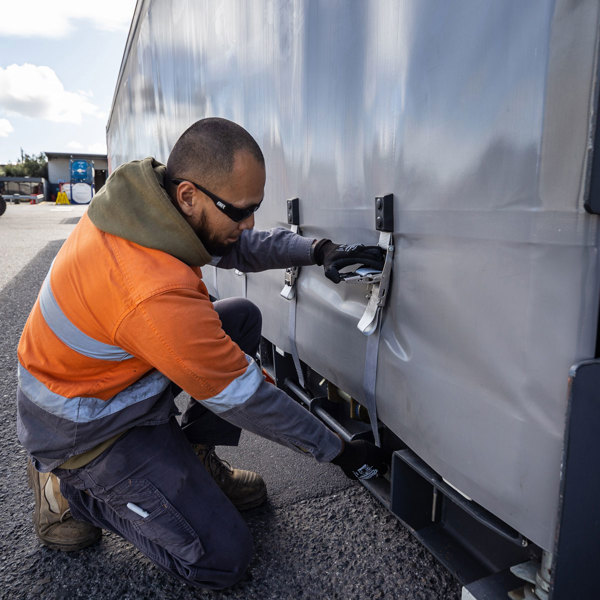

Built with safety in mind, hanging gates and posts enable safe handling for operators.

Ideal for fragile or soft pallets, the optional Mezzanine Deck provides increased flexibility for loading freight and double stacking of 40 pallets.

Multiple restraint points located in the bottom side rail and recessed into the floor allow for the cartage of both palletised and irregular freight.

SCF also produces a range of other sizes and variants to provide alternative capacity options to suit your requirements.

  • 2 pallet wide
  • Store up to 40 pallets with a Mezz Deck (optional)
  • Hanging posts and gates
  • Full lashing rail for restraint

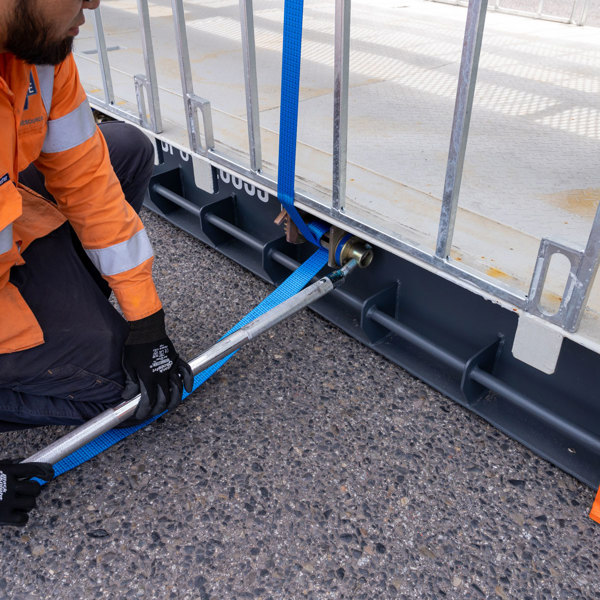

  • Load binder winches
  • Full double side opening

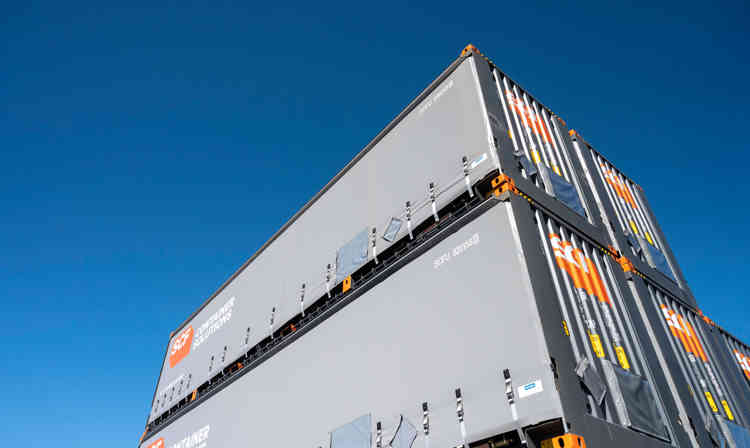

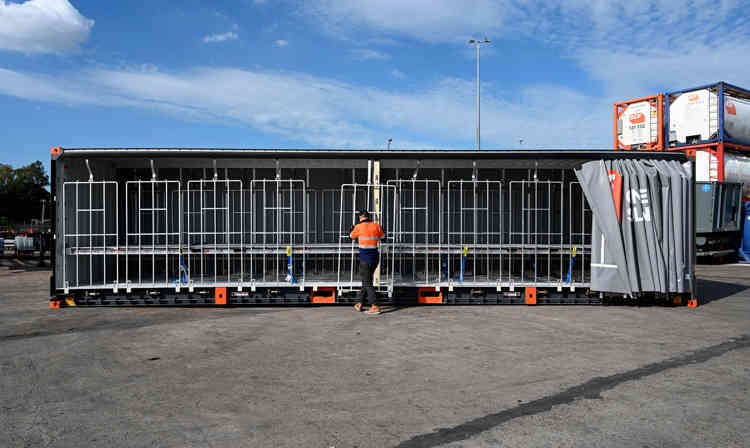

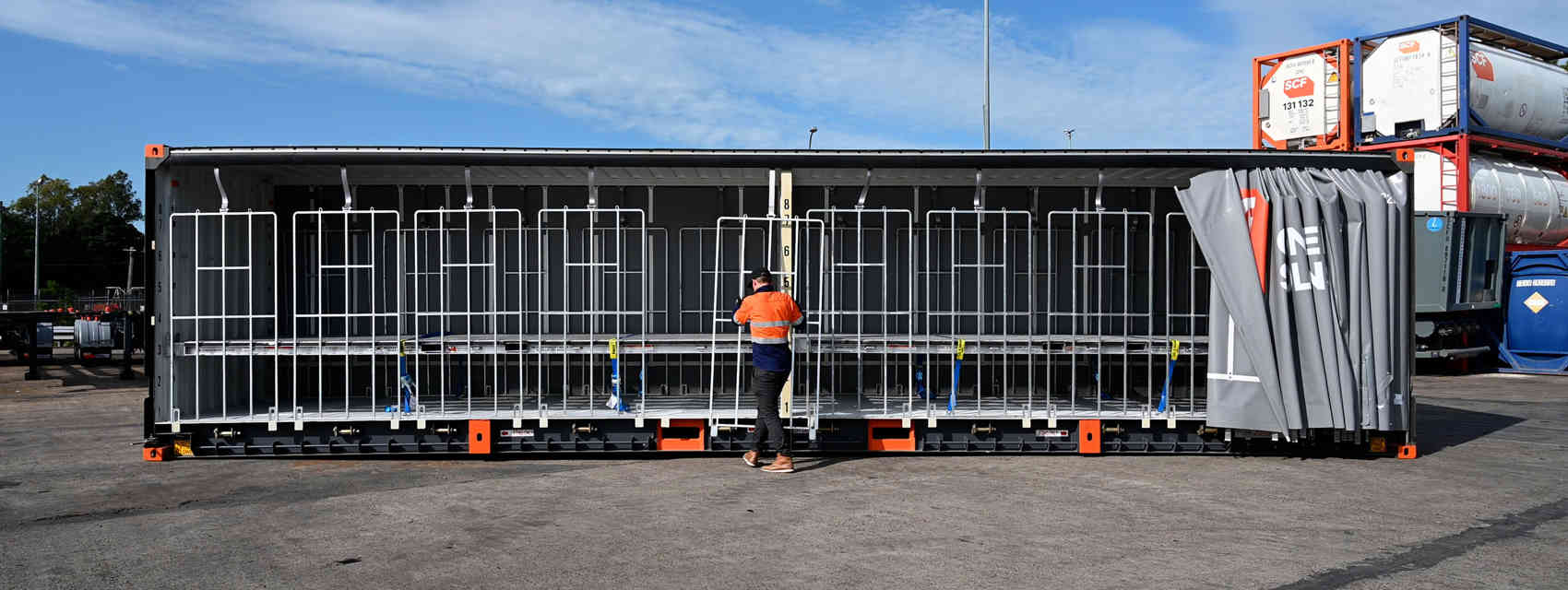

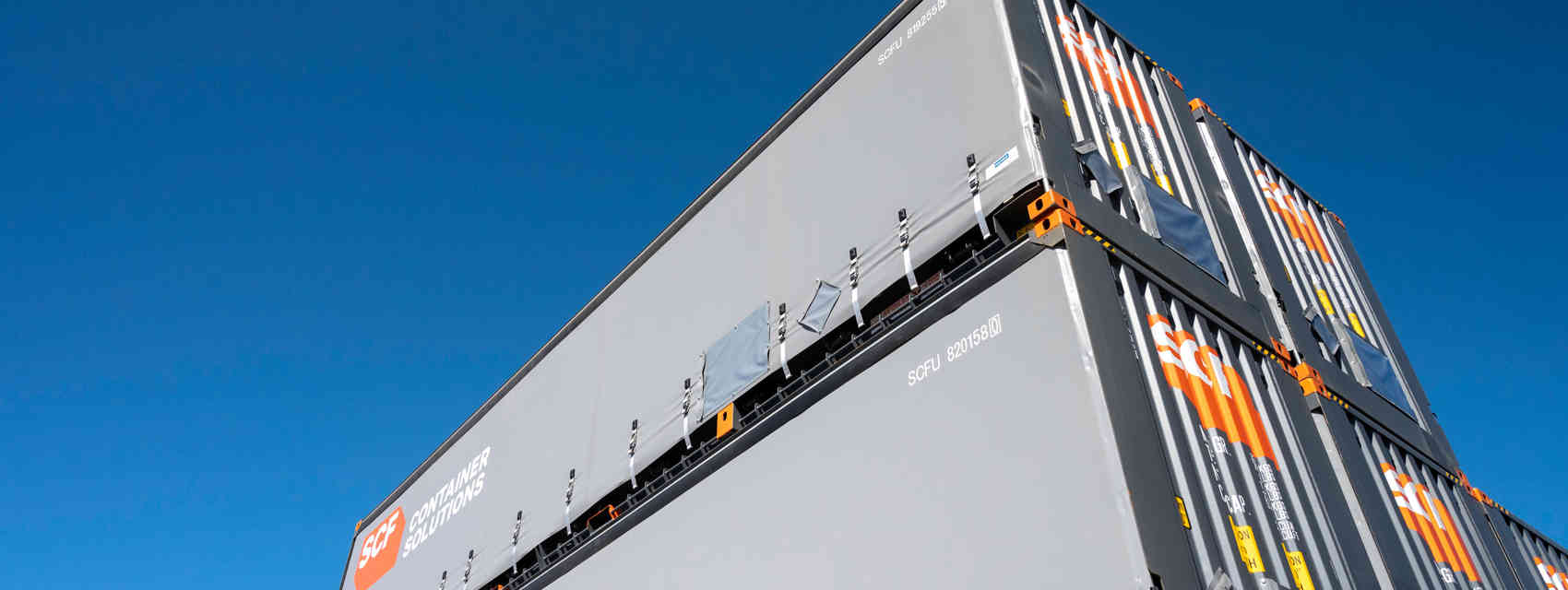

SCF 40Ft Curtain Side Stack SCF 40Ft Curtain Side Container

40ft Tautliner Container Dimensions and Weight

Specifications may vary

The cubic capacity of a 40ft Tautliner container is 75.5m3.

Internal (mm)
Length 12,056
Width 2,412
Height 2,597
External (mm)
Length 12,192
Width 2,500
Height 3,000
Weight (kg)
Tare 6,310
Payload 25,750
MGW 32,000

40ft Tautliner Container

40ft Tautliner Container - line drawing - SCF

Key Features

  • 2 pallet wide
  • Store up to 40 pallets with a Mezz Deck (optional)
  • Hanging posts and gates
  • Full lashing rail for restraint
  • Load binder winches
  • Full double side opening
Get a Quote

FAQ

Without a Mezzanine Deck, you can fit 20 pallets. With a Mezzanine Deck, that doubles to 40 pallets.

A Tautliner container is similar to a Side Door container, however the curtain provides a significant weight reduction compared to the steel side doors. This doesn't impact the Tare weight of the unit, which can carry more freight with reduced fuel costs (thanks to the lighter weight).

A Mezzanine Deck is a reinforced platform inside the container that can be adjusted by a forklift to a desired height. It enables the double stacking of pallets in the container, ensuring pallets below the deck are not damaged.

No, not all units have the deck as standard.

If this is critical for your operations, be sure to inform our team when discussing your requirements.

Rather than source standard containers used by shipping lines, SCF designs containers in house specifically for transport customers. This means that all SCF intermodal containers are manufactured with features that are relied upon by logistics, 3PL and transports companies across the country.

You might also like

48ft Tautliner

48ft Tautliner Container

  • Approx 14.6m L x 2.5m W x 3m H
20ft Side Door

20ft Double Side Door

  • Approx 6.1m L x 2.5m W x 2.9m H

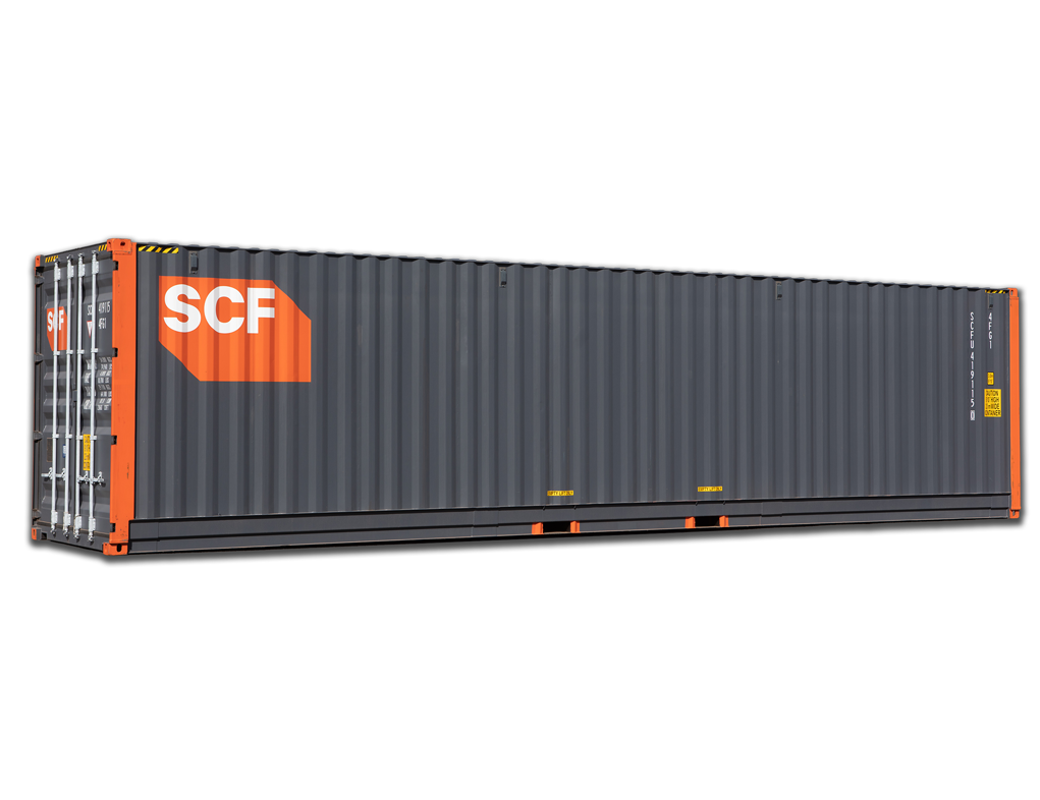

40ft Pallet Wide
