45ft Frac Tank

Dimensions Approx
Length 13.7m
Width 2.5m
Height 2.9m
Internal Capacity77m3

SCF’s 45 Foot Frac tank is a true 500 barrel tank scaling up to a million litres using 12 tanks. Rated to carry a Specific Gravity of 1.5 in a double stack configuration for heavy drilling mud solutions.

Product Banner Image - 45ft Frac Tank

45ft Frac Tank

SCF’s 45 Foot Frac tank is a true 500 barrel tank scaling up to a million litres using 12 tanks. Rated to carry a Specific Gravity of 1.5 in a double stack configuration for heavy drilling mud solutions.

Product Details

The 45ft Frac Tank is part of the range of SCF on-site storage solutions used throughout the oil and gas industry. The design allows for the scalability of storage volume dependent upon the size of the project.

The skid mounted configuration allows for cost effective mobilisation between projects regardless of distance by taking advantage of the cost benefits associated with rail transport. This is achieved through the R Plate certification that SCF maintains for our fleet of Skidded Frac Tanks.

Its design also allows for rapid deployment in almost any location.

View the rest of SCF's Frac Tank range to find a tank container that supports your project needs.

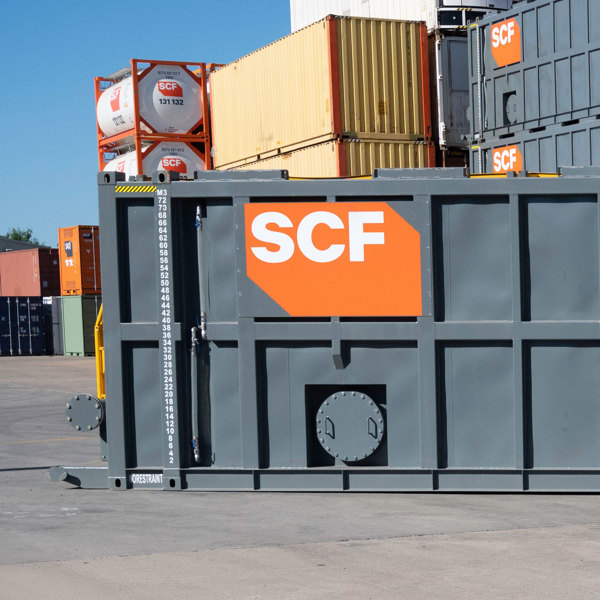

  • 500mm side access for cleaning and OHS
  • 2 x 500mm hatches in roof

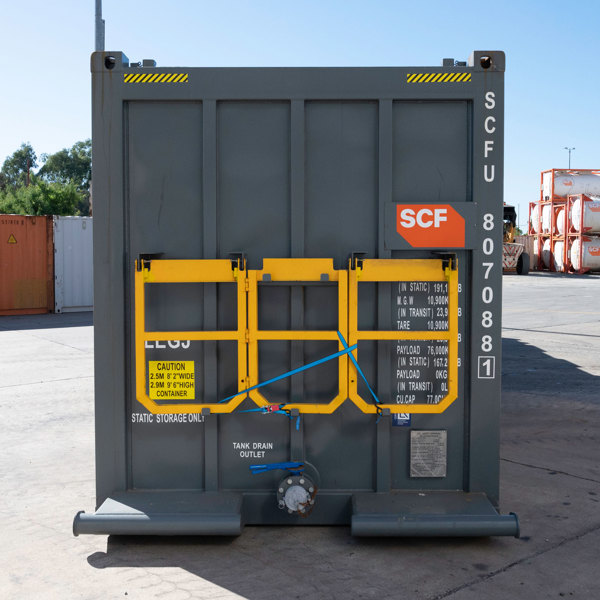

  • Sump allows full evacuation

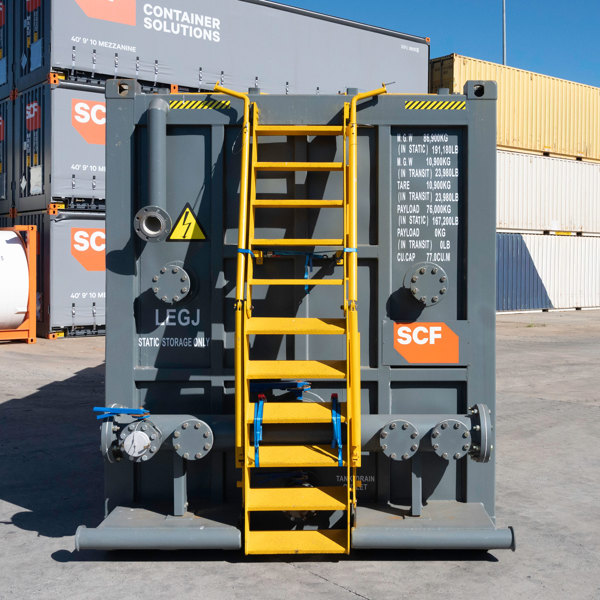

  • Full manifold allows unit connectivity for larger projects
  • 500BBL capacity

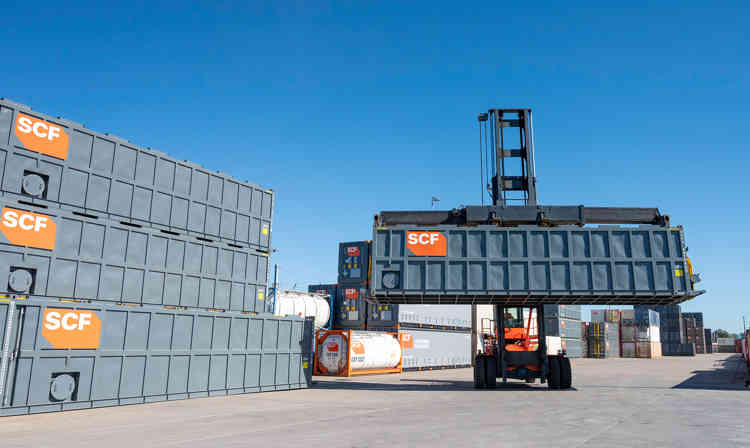

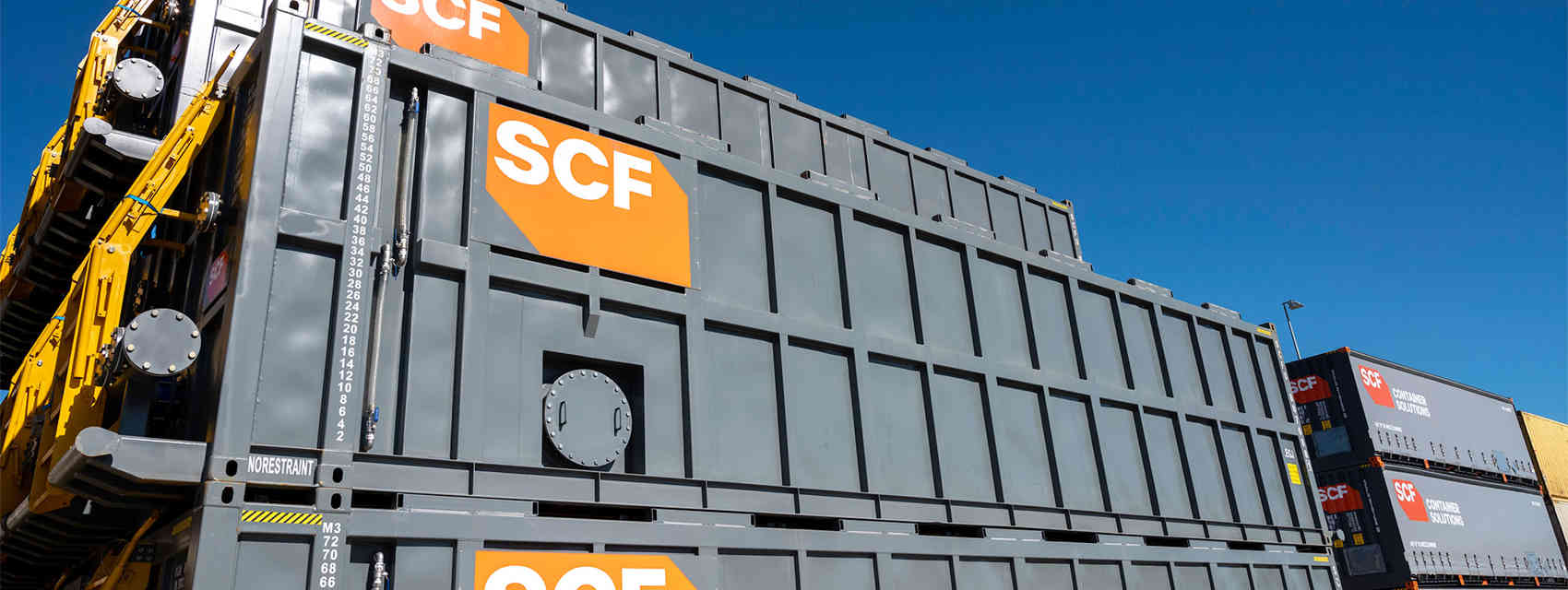

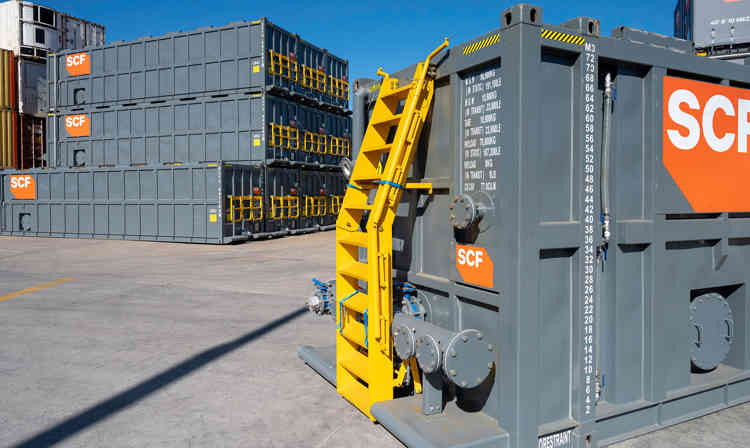

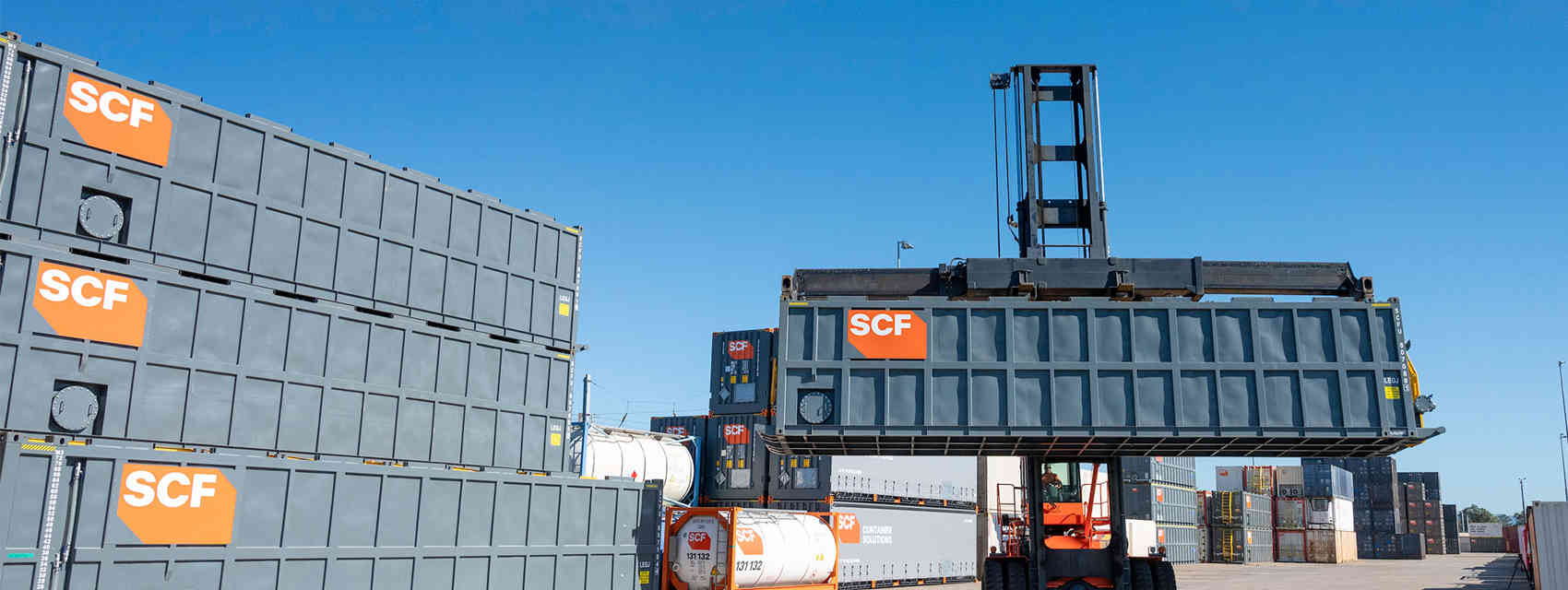

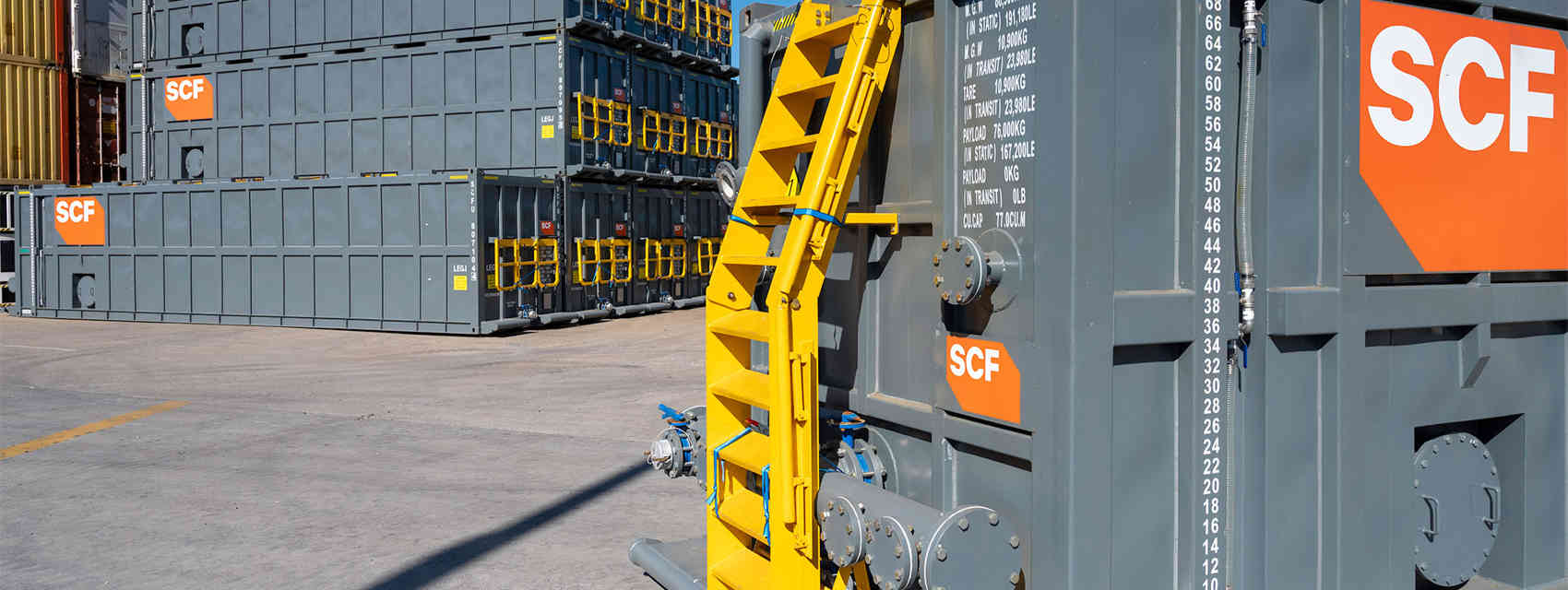

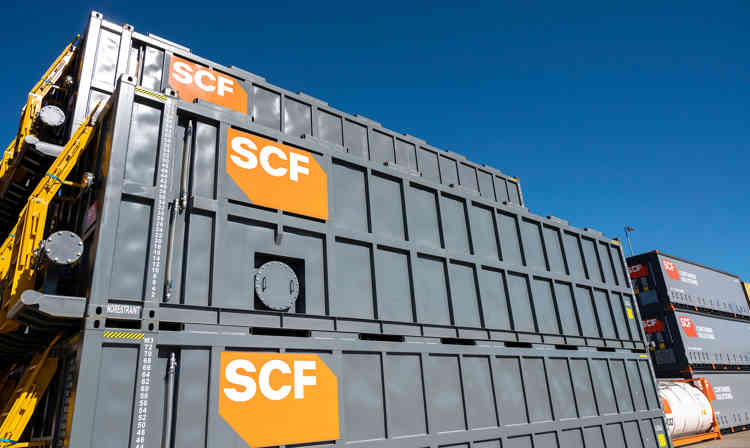

SCF 45Ft BLS Lift Feature SCF 45Ft BLS Side Stack Feature SCF 45Ft BLS Stack Feature

45ft Frac Tank Dimensions, Volume and Weight

Specifications may vary. The below external dimensions assume the gantry is not in the raised position.

Cubic capacity 77 m3
Volume
Litres 77,000
77

External (mm)
Length 13,716
Width 2,500
Height 2,896
Weight (kg)
Tare 10,500
Payload 76,000
MGW 86,500

45ft Frac Tank

45ft Frac Tank - line drawing - SCF

Key Features

  • 500mm side access for cleaning and OHS
  • 2 x 500mm hatches in roof
  • Sump allows full evacuation
  • Full manifold allows unit connectivity for larger projects
  • 500BBL capacity
Get a Quote

How is this container delivered?

Hiab Crane

We use Hiab cranes when there’s not enough space for a side loader or tilt tray – or if your site has other tricky obstacles to manoeuver around (like fences). The crane lifts and then places the shipping container. This method also makes it easy to place containers at an angle, or on raised areas.
