48ft Wheeled Frac Tank

Dimensions Approx
Length 14.5m
Width 2.5m
Height 3.2m

SCF’s Wheeled Frac Tank is designed to provide a cost-effective solution for long-term projects. It incorporates a range of features to support rapid deployment and safe operation.

Product Banner Image - 48ft Wheeled Frac Tank

48ft Wheeled Frac Tank

SCF’s Wheeled Frac Tank is designed to provide a cost-effective solution for long-term projects. It incorporates a range of features to support rapid deployment and safe operation.

Product Details

SCF's Wheeled Frac Tank is purpose built for remote deployment. The Dual Axle variant is road train capable to minimise long distance transport costs for rapid deployment between wells, while a range of specific features facilitate fast mobilisation.

Hydraulic legs are fitted as standard across the range and come with remotes (pendants) to allow for the operation of tanks from a safe distance.

With the largest and most diversified range of Frac Tanks servicing the oil and gas industry, SCF is well placed to provide the right solution for your requirements.

From full scale mud plants to well head flow back systems, SCF have the equipment designed to meet project demands.

View the rest of SCF's Frac Tank range to find a tank container that supports your project needs.

  • 500mm side access for cleaning and OHS
  • 2 x 500mm hatches in roof
  • Sump allows full evacuation
  • Full manifold allows unit connectivity for larger projects
  • 500BBL capacity
  • Available in single and dual axle formats

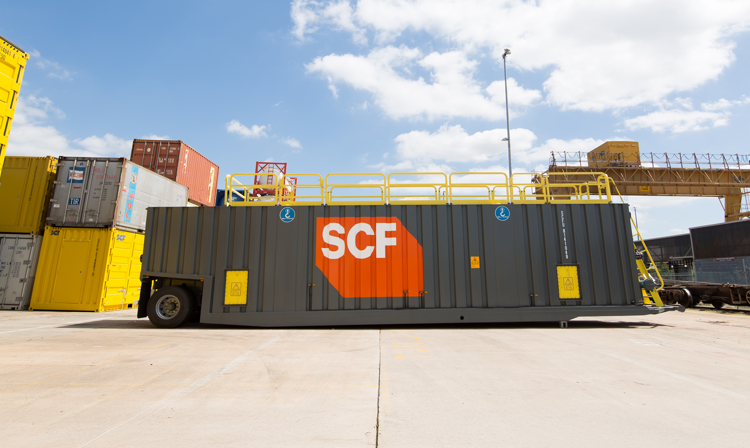

SCF 48Ft Wheeled Full Width

48ft Wheeled Frac Tank Dimensions, Volume and Weight

Specifications may vary

Internal (mm)
Length 12,850
Width 2,380
Height 2,760
External (mm)
Length 14,537
Width 2,500
Height 3,155
Weight (kg)
Tare 12,761
Payload 138,600
MGW 151,361

48ft Wheeled Frac Tank

Dual Axle variant

48ft Wheeled Frac Tank - line drawing - SCF

Key Features

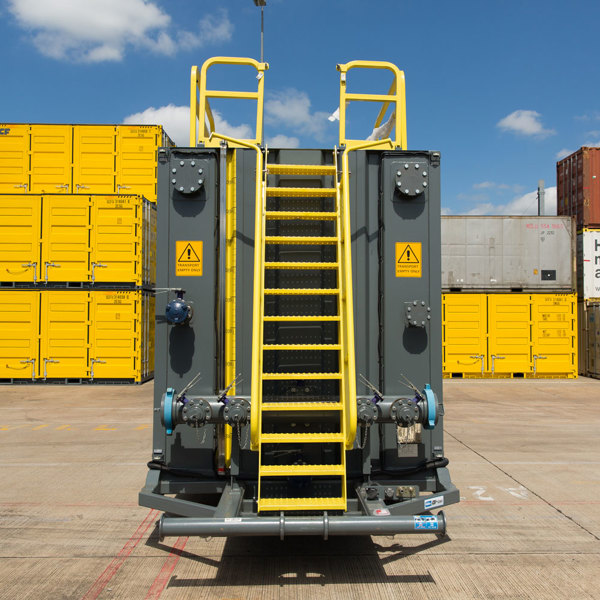

  • 500mm side access for cleaning and OHS

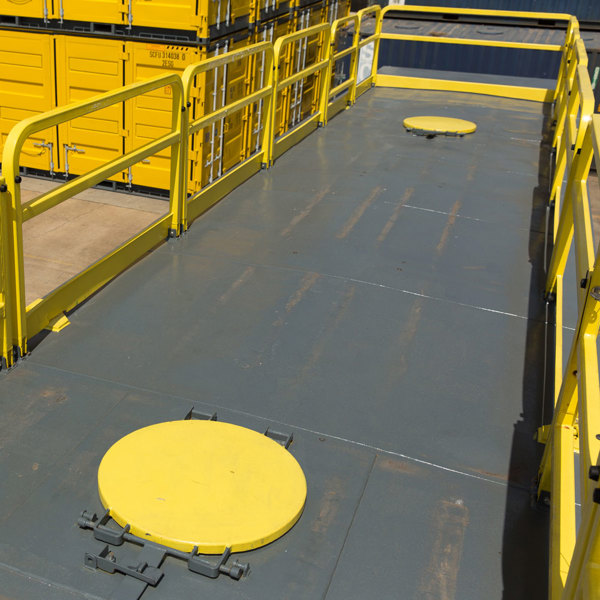

  • 2 x 500mm hatches in roof
  • Sump allows full evacuation
  • Full manifold allows unit connectivity for larger projects
  • 500BBL capacity
  • Available in single and dual axle formats
Get a Quote

You might also like

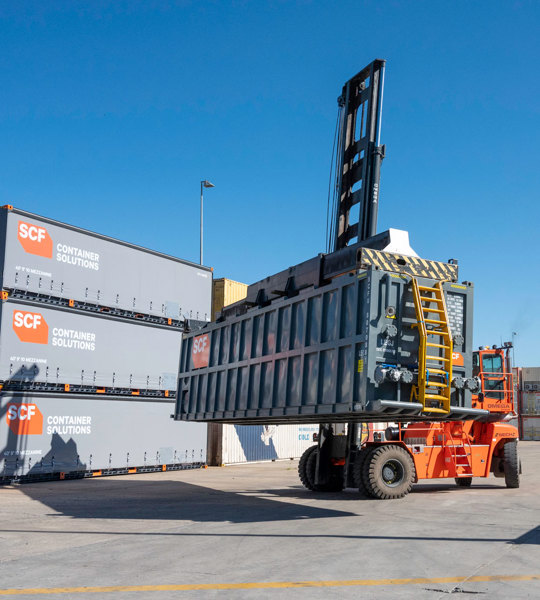

45ft Frac Tank

45ft Frac Tank

  • Approx 13.7m L x 2.5m W x 2.9m H
  • Internal Capacity 77 m3
25ft Mixing Tank

25ft Mixing Tank

  • Approx 7.6m L x 2.4m W x 2.9m H
  • Internal Capacity 37 m3

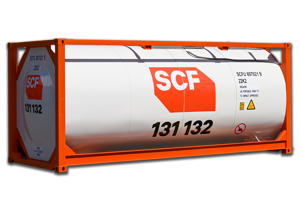

ISO Liquid Tank

ISO Liquid Tank

  • Approx 6.1m L x 2.4m W x 2.6m H
  • Internal Capacity 14 - 26 m3

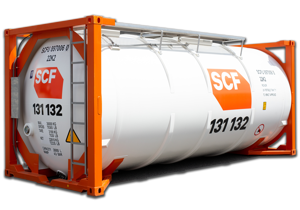

ISO Side Discharge Tank
