Side Opening Trailer

Dimensions Approx
Length 13.4m
Width 2.5m
Height 4.3m

Transport your goods in a durable, strong and proven side opening trailer. Easily accessible from both sides, and as strong as an ox.

Product Banner Image - Side Opening Trailer

Side Opening Trailer

Transport your goods in a durable, strong and proven side opening trailer. Easily accessible from both sides, and as strong as an ox.

Side Opening Trailer Details

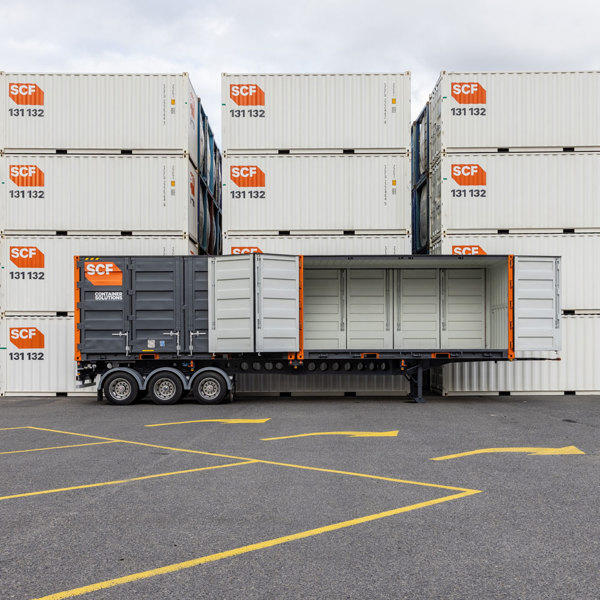

For cargo that needs protection, or for operators who want to quickly and safely unload from either side, the Side Opening Trailer does the job. It provides the greatest flexibility for multiple freight types, and is built to fit 2 chep pallets side by side. This trailer can also transport heavy or dense cargo, including irregular freight such as steel coils and machinery.

Available in standard heights of 9’6 and 9’10, both versions are compatible with the SCF Mezzanine Deck system. This system allows for flexible freight heights.

For loading and unloading, steel side doors allow access for fast HSE compliant operation, minimising required labour time to operate.

Utilising an SCF skel, customers can quickly change out a Side Opening container and hire a Tautliner, Refrigerated Container or Pallet Wide container to suit different cargo types.

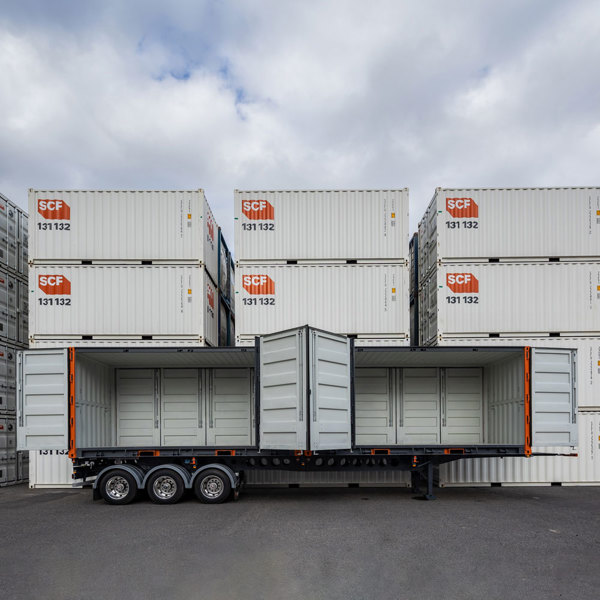

  • Full side opening on both sides of the trailer
  • 2 pallet wide
  • Ladder lashing system
  • Winch lashing system
  • Steel floor
  • Anti-racking design for easy operation
  • Mezzanine Deck option

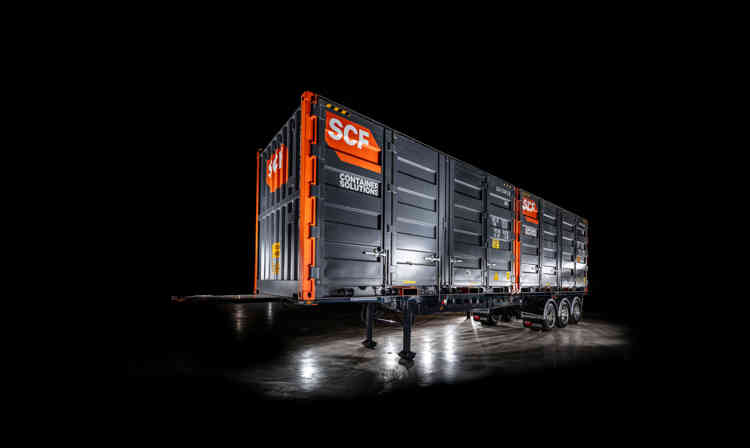

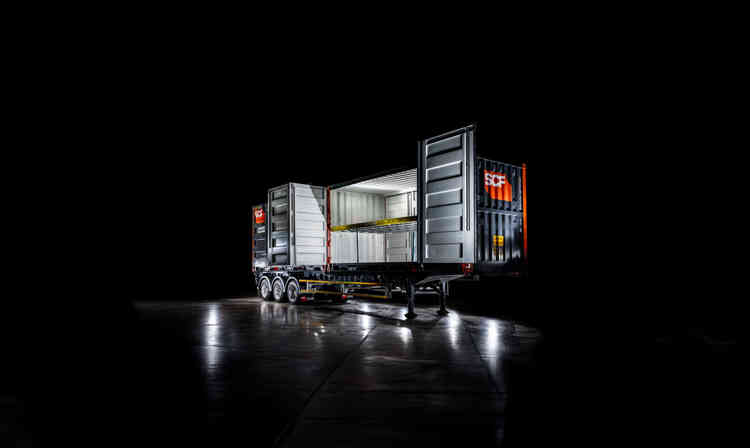

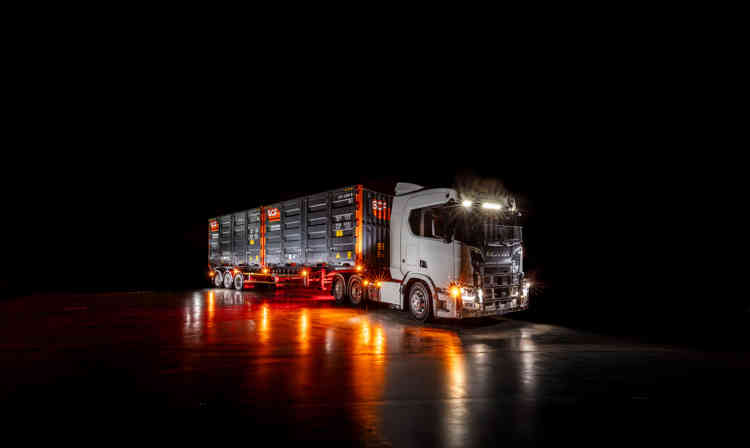

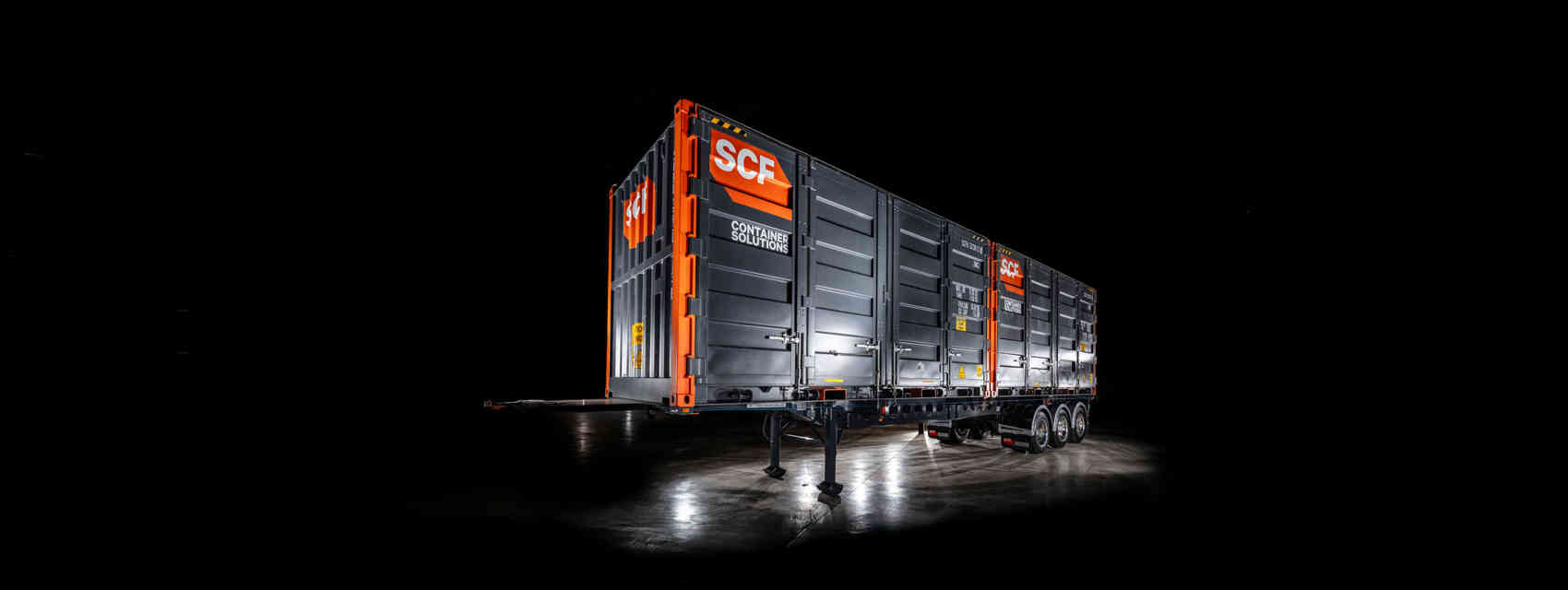

SCF Side Door Hero Wide SCF 20Ft Side Door Trailer Side Full Width SCF 20Ft Side Door Trailer Truck Full Width

Side Door Trailer Specifications

9'10 Variant

20 pallets with a Mezzanine Deck. 10 pallets without a Mezzanine Deck.

The internal dimensions are based on 1x20ft Side Opening Containers. The cubic capacity of the Side Opening Trailer is 38.5m3.

Please note that the weights for Tare, Payload, and MGW listed below are approximate and subject to variation. These figures can vary based on specific trailer and container builds and customisable options available. For precise specifications tailored to your needs, please contact our sales team.

^ Indicative trailer + 1 x side door container weight
* Indicative container weights only

Internal (mm)
Length 11,940
Width 2,400
Height 2,688
External (mm)
Length 13,415
Width 2,500
Height 4,287
Weight (kg)
Tare 9,310^
Payload 30,480*
MGW 34,480*

Side Opening Trailer

Side Door Trailer Dimensions

SCF's Side Door Trailer dimensions below reference the 9'10 option. A 9'6 version is also available.



Side Opening Trailer - line drawing - SCF

Key Features

  • Full side opening on both sides of the trailer
  • 2 pallet wide
  • Ladder lashing system
  • Winch lashing system
  • Steel floor
  • Anti-racking design for easy operation
  • Mezzanine Deck option
Get a Quote

You might also like

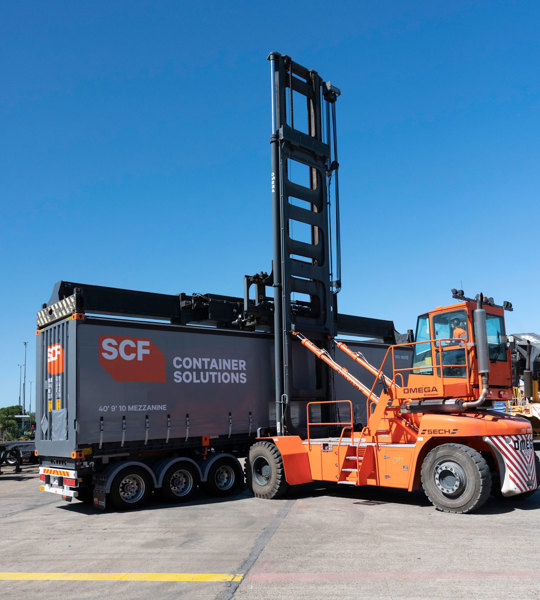

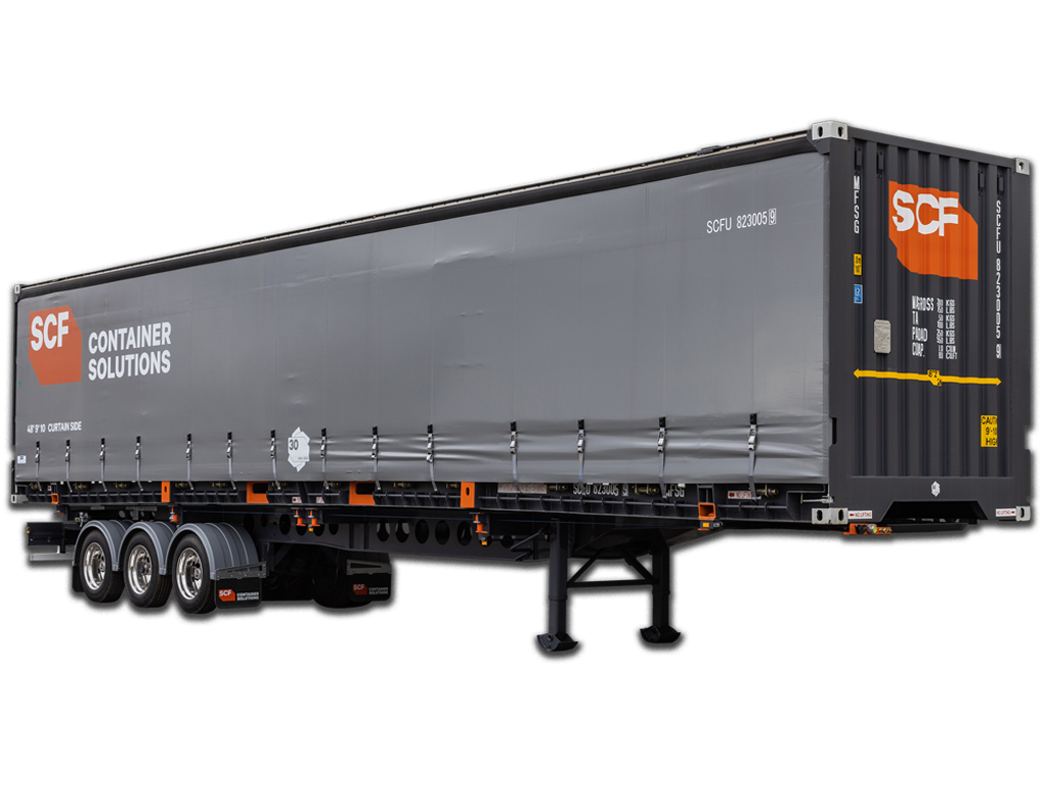

Tautliner Trailer

Tautliner Trailer

  • Approx 14.6m L x 2.5m W x 4.3m H

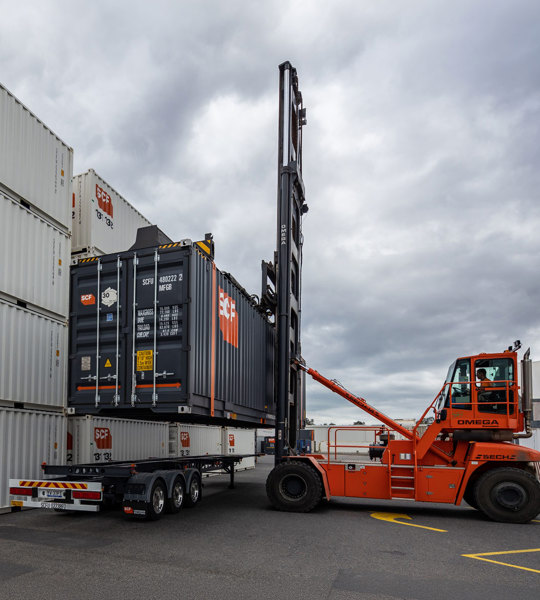

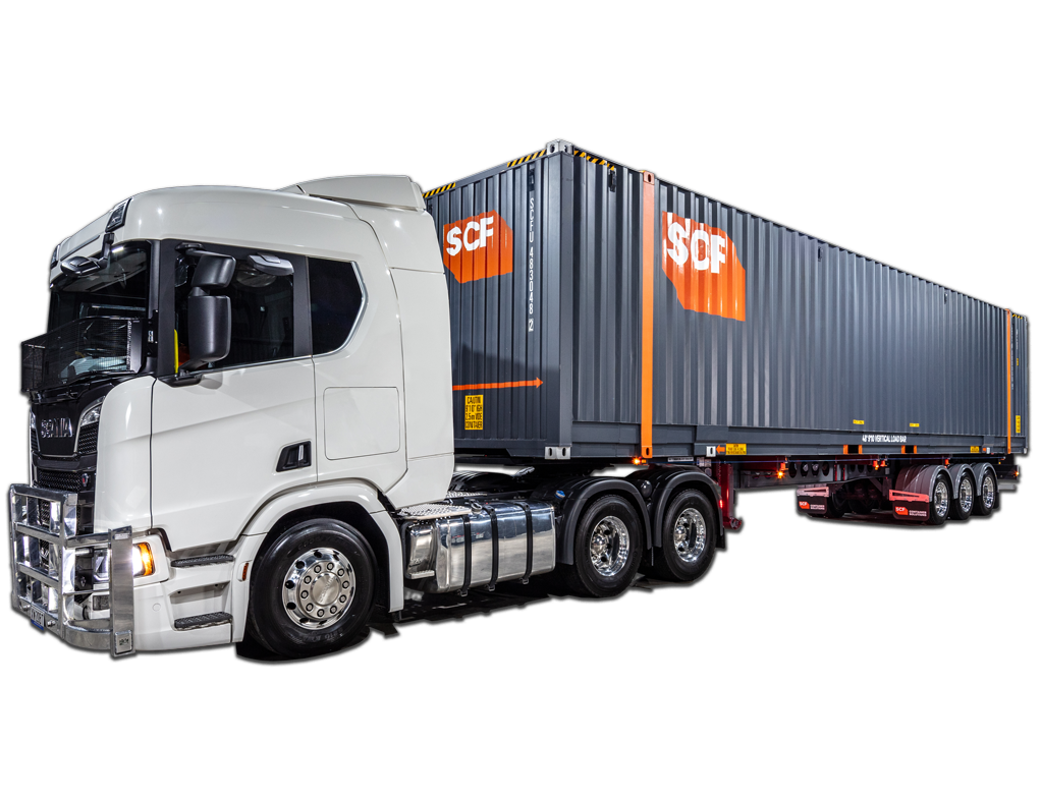

Dry Van Trailer

Dry Van Trailer

  • Approx 14.6m L x 2.5m W x 3m H

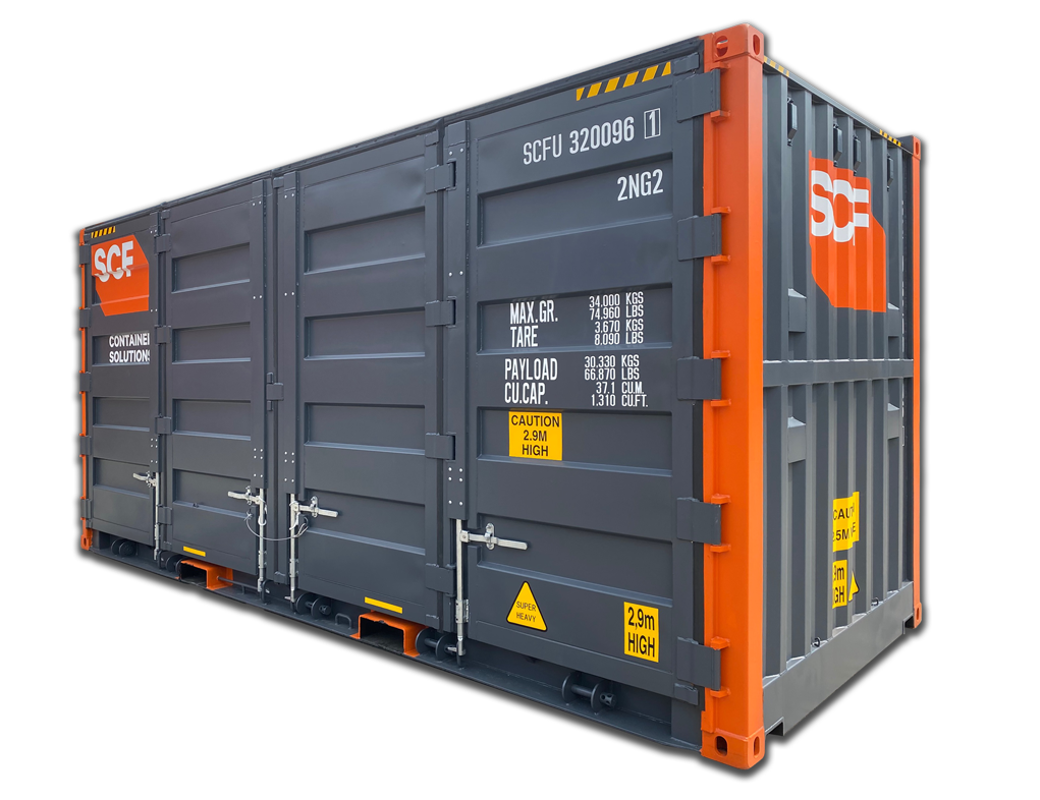

20ft Side Door
