20ft Pallet Wide

Dimensions Approx
Length 6.1m
Width 2.5m
Height 2.9m
Pallet Wide x2
Pallet Spaces x20

SCF’s 20ft Pallet Wide container is wide enough to fit two chep pallets side by side to maximise equipment utilisation. Easily fit up to 10 pallets for safe and secure transport. Or 20 pallets by adding our optional Vertical Load Bars.

Product Banner Image - 20ft Pallet Wide

20ft Pallet Wide

SCF’s 20ft Pallet Wide container is wide enough to fit two chep pallets side by side to maximise equipment utilisation. Easily fit up to 10 pallets for safe and secure transport. Or 20 pallets by adding our optional Vertical Load Bars.

Product Details

Built with high-quality materials, SCF’s 20ft pallet wide container is one of the best performing for intermodal operators to transport goods on road and rail.

10 pallets not enough? Double the internal capacity by including our vertical load bars for up to 20 pallets.

SCF also produces a range of other sizes and variants to provide alternative capacity options to suit your requirements.  Consider a larger 40ft variant (20 pallets, or 40 with vertical load bar option) or 48ft variant (24 pallets or 48 with vertical load bar option).

These containers are proven to protect goods in transit, whilst minimising damage through SCFs custom design and quality construction.



  • Lashing rings and tie rails to secure cargo
  • SCF custom base arrangement with reinforced floors
  • 20’ handling points
  • Fork pockets
  • Reinforced handling points to reduce damage
  • Secure and lockable

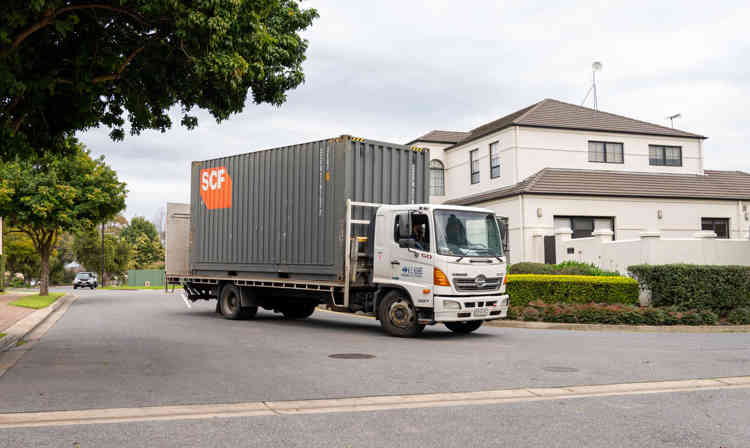

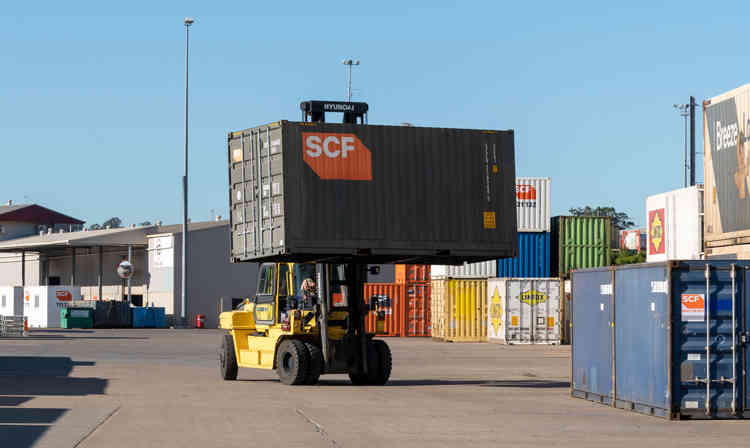

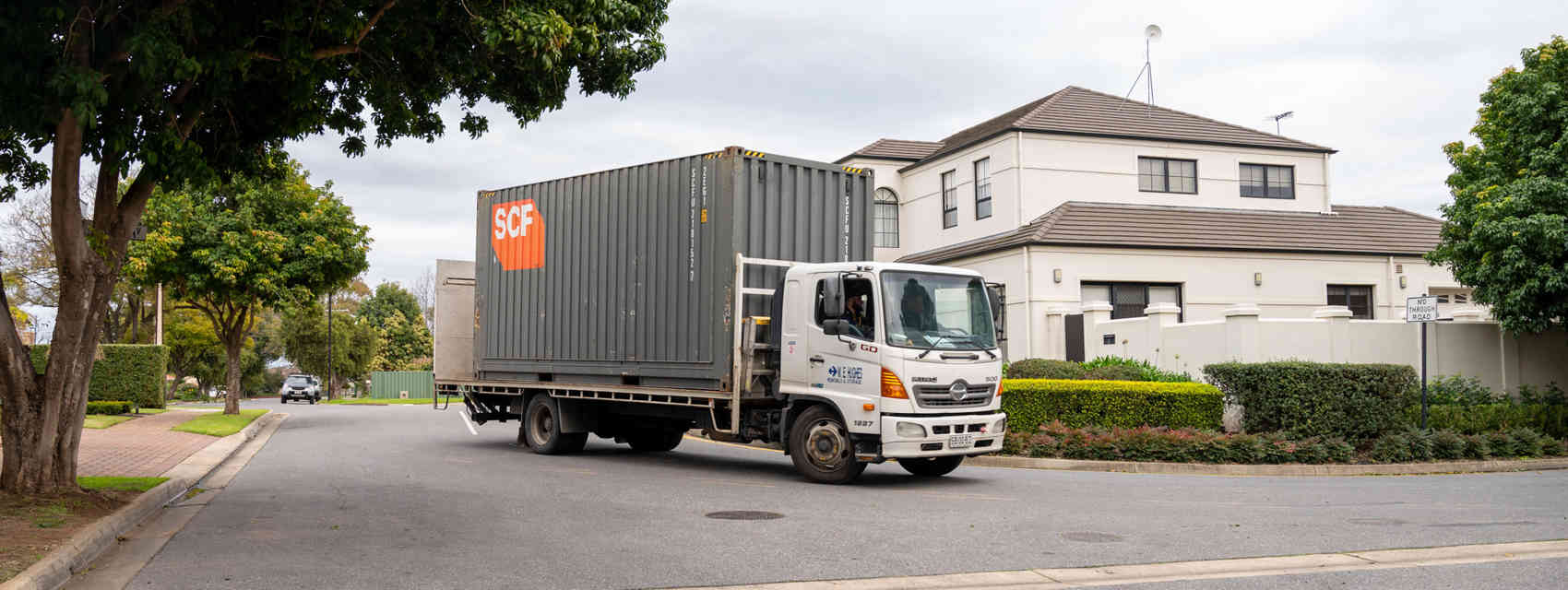

SCF 20Ft Pallet Wide Full Width Fork SCF 20Ft Pallet Wide Full Width

20ft Pallet Wide Dimensions and Weight

Specifications may vary

The cubic capacity of a 20ft pallet wide container is 38m3.

Internal (mm)
Length 5,899
Width 2,422
Height 2,694
External (mm)
Length 6,058
Width 2,462
Height 2,896
Weight (kg)
Tare 2,882
Payload 27,598
MGW 30,480

20ft Pallet Wide

20ft Pallet Wide - line drawing - SCF

Key Features

  • Lashing rings and tie rails to secure cargo
  • SCF custom base arrangement with reinforced floors
  • 20’ handling points
  • Fork pockets
  • Reinforced handling points to reduce damage
  • Secure and lockable
Get a Quote

FAQ

Without Vertical Load Bars, you can fit 10 pallets. With Vertical Load Bars, that doubles to 20 pallets.

All SCF intermodal containers are designed and built to fit two pallets side by side. This maximises the internal space to support the efficient transport of pallets.

Rather than source standard containers used by shipping lines, SCF designs containers in house specifically for transport customers. This means that all SCF intermodal containers are manufactured with features that are relied upon by logistics, 3PL and transports companies across the country.

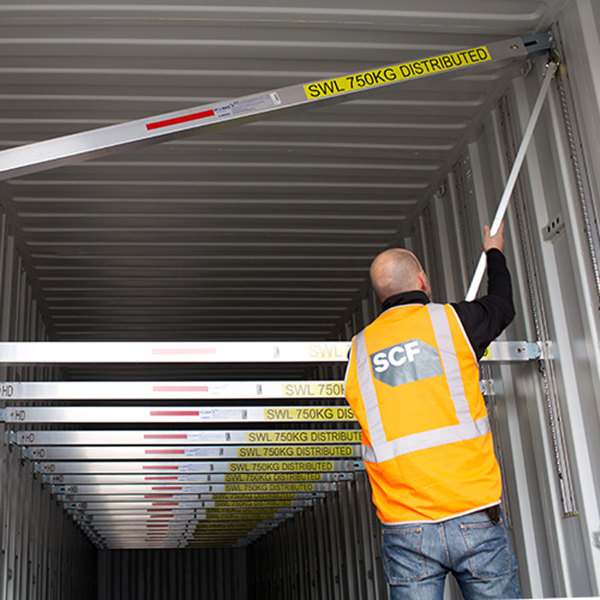

Vertical Load Bars (VLB) are installed inside the container, and can be lowered by a single user with the included VLB tool to a desired height. The tool protects the user from injuries (think pinched fingers) and also makes it easy to reach the load bars when they are in the raised 'inactive' position.

When deployed, Vertical Load Bars provide a strong base that pallets can be stacked on, without placing any pressure on pallets underneath. This provides users with two levels to safely place pallets on, effectively doubling the internal pallet capacity of a container.
