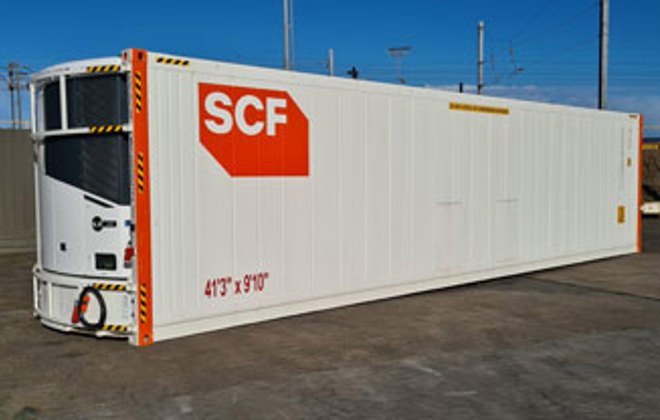

41ft Refrigerated Container

41ft Refrigerated Container

SCF’s 41ft 20 pallet Refrigerated container delivers superior temperature control for up to 40 pallets (with load bars). Intelligent insulation design provides optimum refrigeration properties to reduce machinery run time, fuel consumption and costs.

Key Features

Thermo King or Carrier electric machinery
2 pallet wide – up to 40 pallets with vertical load bars
Custom SCF insulation design for premium thermal performance

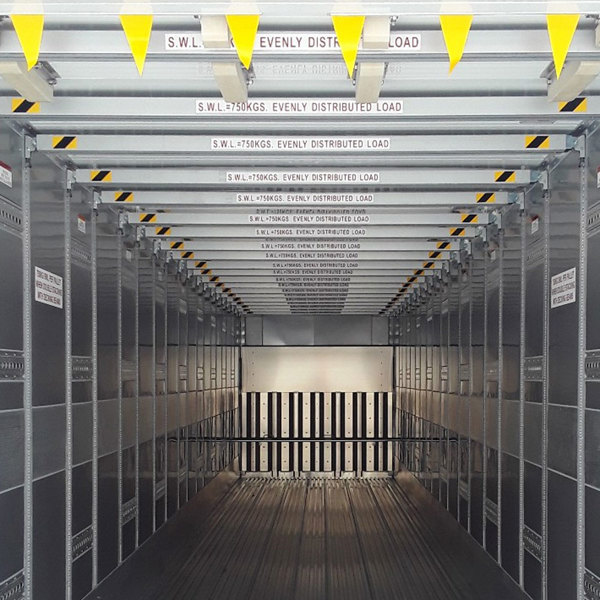

Vertical load bars for double stacking
F-track for freight restraint
Airflow floor design for efficient cooling
Internal scuff plates and flush mounted components to reduce damage

Download brochure Get a Quote

Product Details

SCF’s 41 foot refrigerated container can store up to 40 pallets in a temperature controlled environment with the utilisation of our internal load bars and double stacking.

Built with superior temperature control and insulation, temperature is efficiently maintained with reduced machinery run time, reducing fuel consumptions and costs.

SCF is a supplier to Australia’s leading logistics companies coupled with our +25 years experience, we fully understand the importance of reliable, economical and fail-safe refrigeration.

Our range of refrigerated shipping containers are designed specifically with the end user in mind and offer flexibility in capacity options and sizes to suit your requirements.

Options

Motor type – TK or Carrier
Remote temperature control and GPS Tracking
Lightweight Model
Branding

41ft Refrigerated Container Dimensions and Weight

Specifications may vary

The cubic capacity of a 41ft refrigerated container is 76m³.

Internal

Length (mm) 11,780

Width (mm) 2,385

Height (mm) 2,716

External

Length (mm) 12,573

Width (mm) 2,500

Height (mm) 3,000

Weight

Tare (kg) 6,400

Payload (kg) 28,200

MGW (kg) 35,000

41ft Refrigerated Container - line drawing - SCF

How is this container delivered?

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.
