6ft Tricon Shipping Container 6ft Tricon Shipping Container

6ft Tricon Shipping Container

6ft Tricon Container

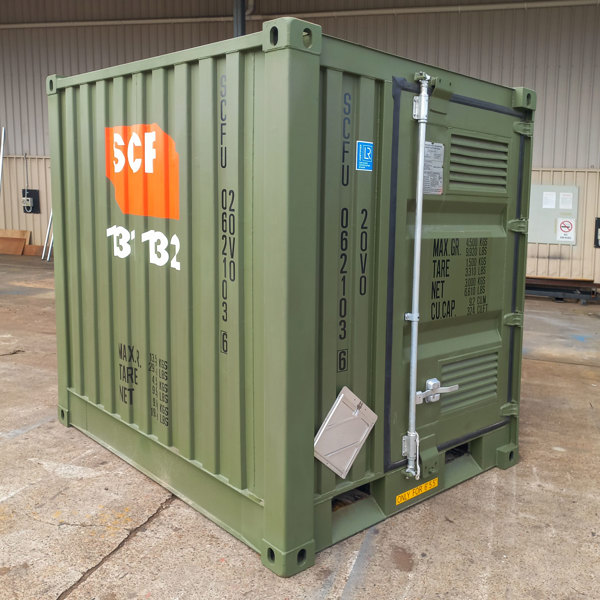

SCF's 6ft Tricon shipping container is designed to safely store chemicals on site. The certified, detached store can easily be relocated between sites. Need to store and transport artillery and ammunition? An artillery-specific option is available, custom cages to suit artillery types. These also come without vents to protect ammunition and powders from moisture and condensation.

Key Features

  • Flexible storage for chemical classes 2, 3, 4, 5, 6, 8 and 9 (subject to MSDS compliance)
  • Bunded to contain spillages
  • Multiple top and bottom vents for air circulation
  • Level entrance for added safety
  • 316L safety drain valve
  • Bund capacity 700L

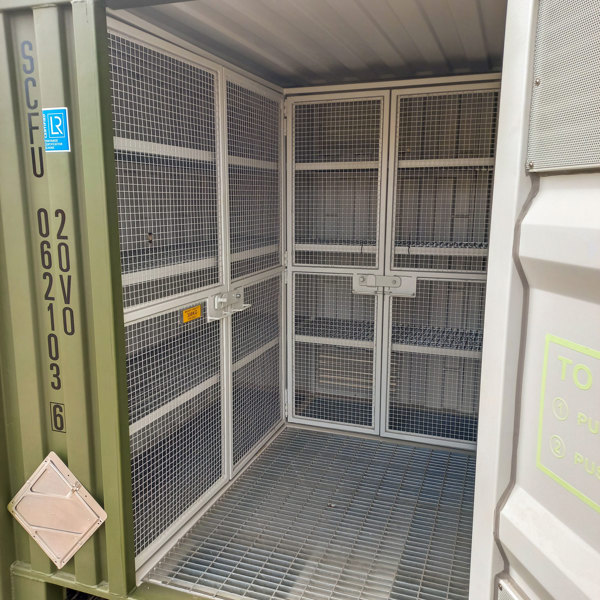

  • Custom, lockable cage to secure chemicals
  • Artillery and ammunition build optional

Tricon Container Details

SCF's 6ft Tricon Container is the ideal solution for storing dangerous chemicals, liquids or powders onsite. They can be quickly, safely and easily be moved on location, or to offsite locations.

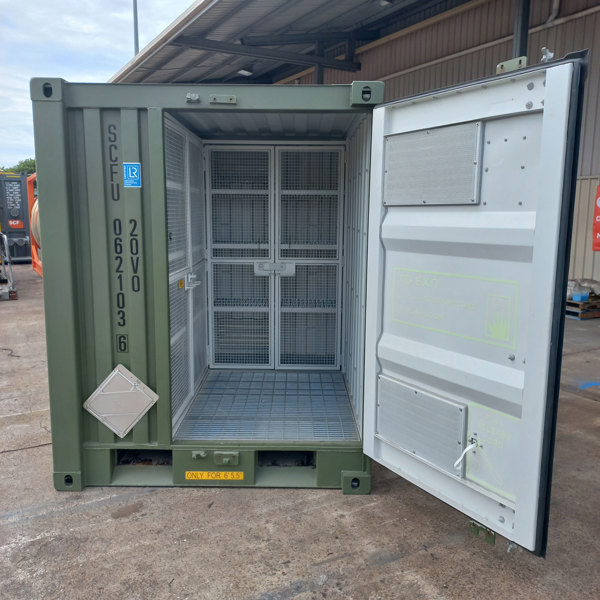

Key safety features include ventilation grills at the top and bottom levels of the walls, a safety drain valve, custom internal cages with additional locks, and emergency escape internal release handle at the exit door.

All SCF Dangerous Goods Containers are compliant with the applicable Australian Standards and come with galvanised steel flooring, bund to contain spills, raised cross-members to simplify the clean-up of spills and an emergency exit to ensure no one gets locked in.

Upon delivery, each customer will receive an Independent Certificate of Compliance.

Tricon Container Options

  • Custom shelving configurations to suit cargo size and requirements – chemicals, artillery types, etc
  • Need something custom-built? Call 131 132 to discuss your requirements

6ft Tricon Container Dimensions and Weight

Internal & external dimensions and weight of a 6ft Tricon container. Specifications may vary

Internal
Length (mm) 1,901
Width (mm) 2,296
Height (mm) 2,125
External
Length (mm) 1,969
Width (mm) 2,438
Height (mm) 2,438
Weight
Tare (kg) 1,500
Payload (kg) 3,000
MGW (kg) 4,500

6ft Tricon Container External Dimensions

External dimensions of a 6ft Tricon container.

How is this container delivered?

SCF Shipping Containers - Delivery Method - Tilt Tray

Tilt Tray

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

SCF Shipping Containers - Delivery Method - Hiab Crane

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
