SCF’s 25ft Bulk Liquid Storage tank container is designed for small-scale metro construction remediation and dewatering projects. Manufactured for reliability, durability, and efficiency, they are the ideal on-site storage solution for liquids, with a capacity of 37,000 L.

Key Features

  • 300BBL capacity (37,000L)
  • Superior insulation system for temperature sensitive cargoes

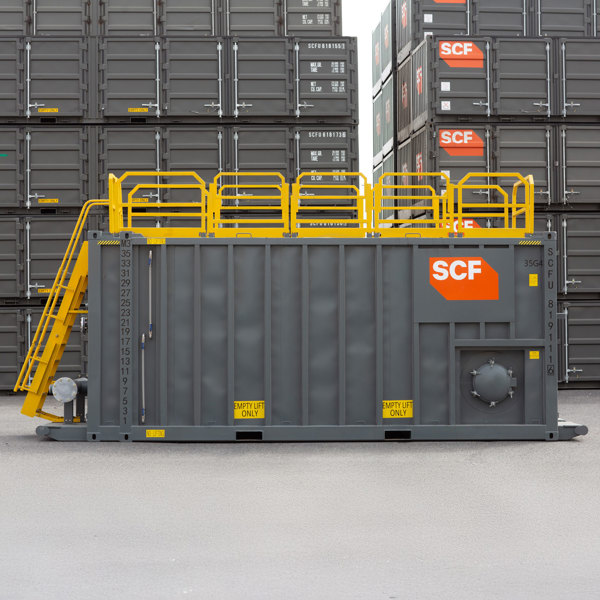

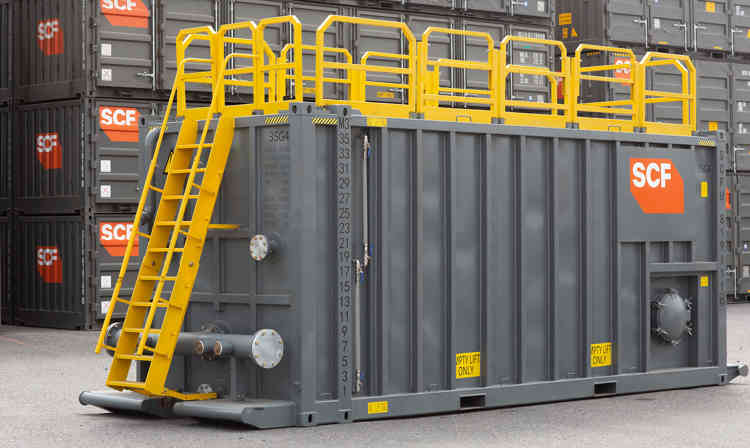

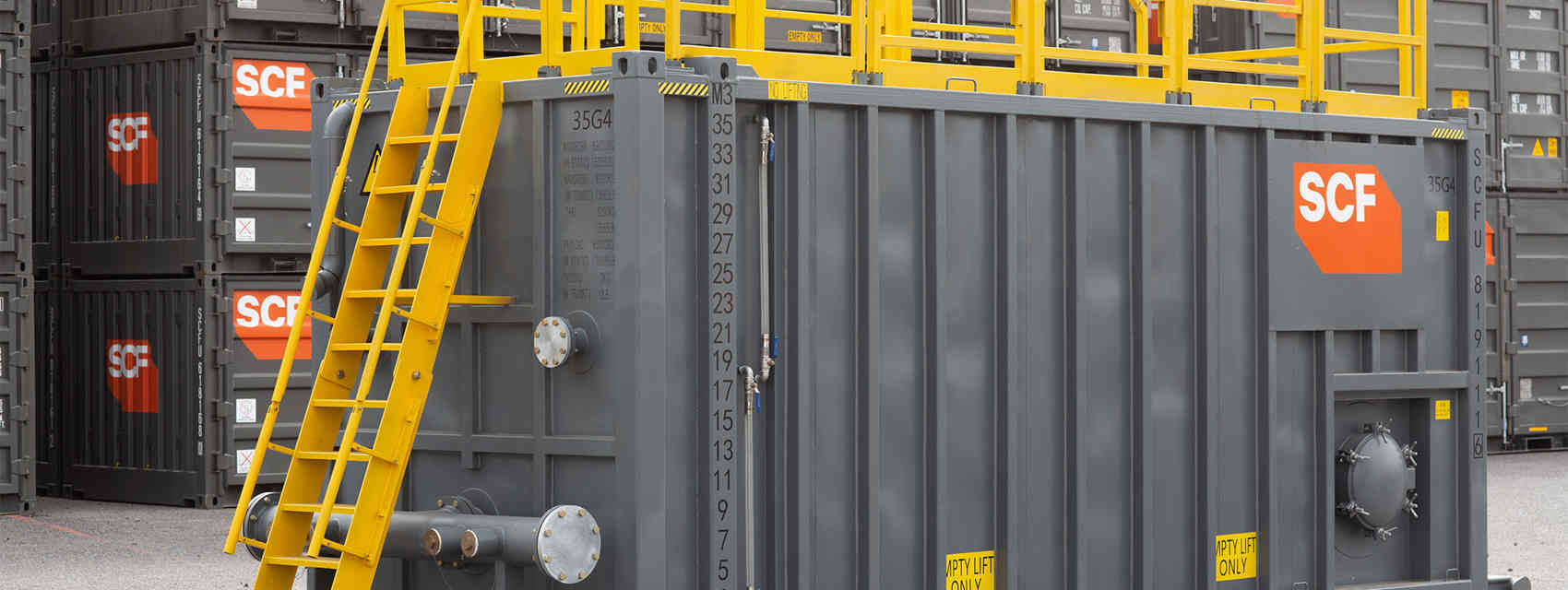

  • Stair and gantry system for safety

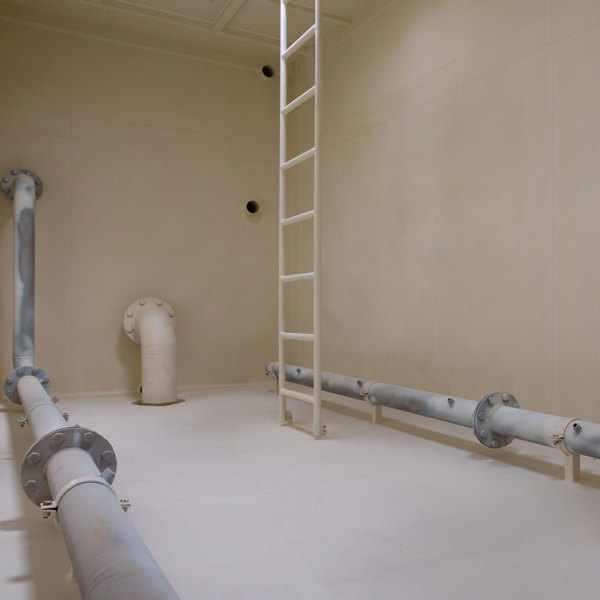

  • Internal mixing lines (on certain units)
  • 8 inch manifold with 4 x 4' connections
  • Front and rear drain valves

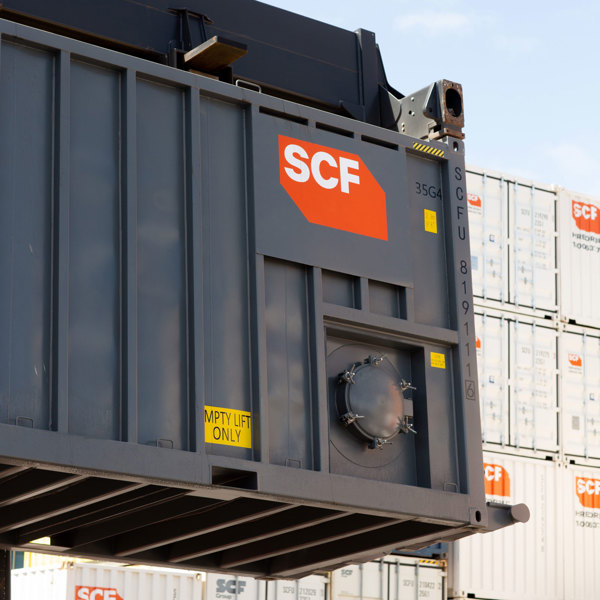

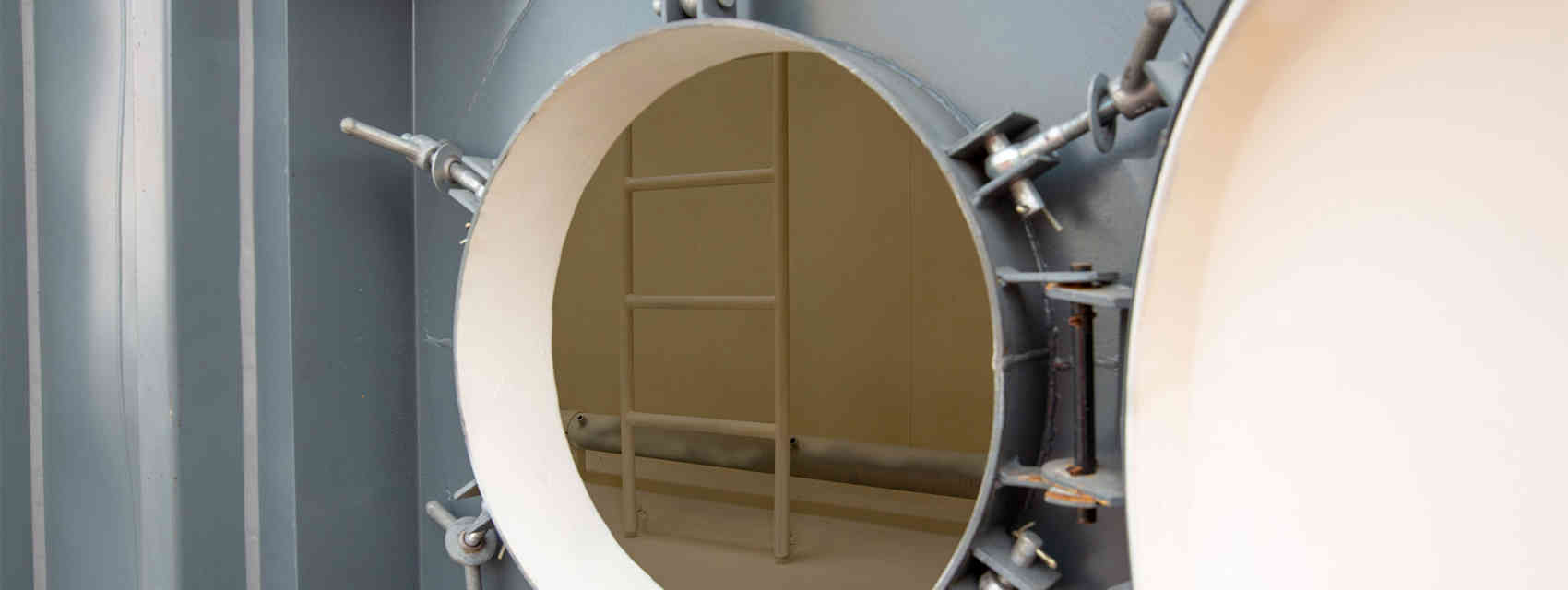

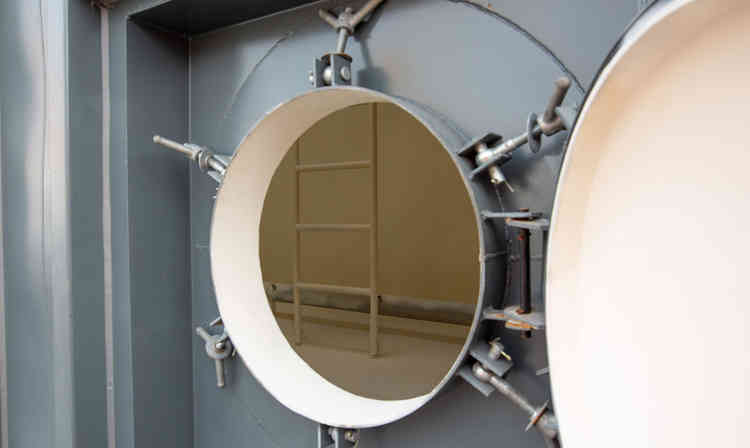

  • 500mm access hatches
  • High flow 300mm breather vent to prevent pressurisation

Product Details

SCF has been designing and building 25ft Bulk Liquid Storage tanks for the better part of a decade. Deployed across multiple industries in the last 7 years without any major incidents of loss of containment.

The tanks are suitable for space constrained sites making it ideal for metropolitan construction. The versatility of the unit allows for multiple applications including water treatment and chemical storage.

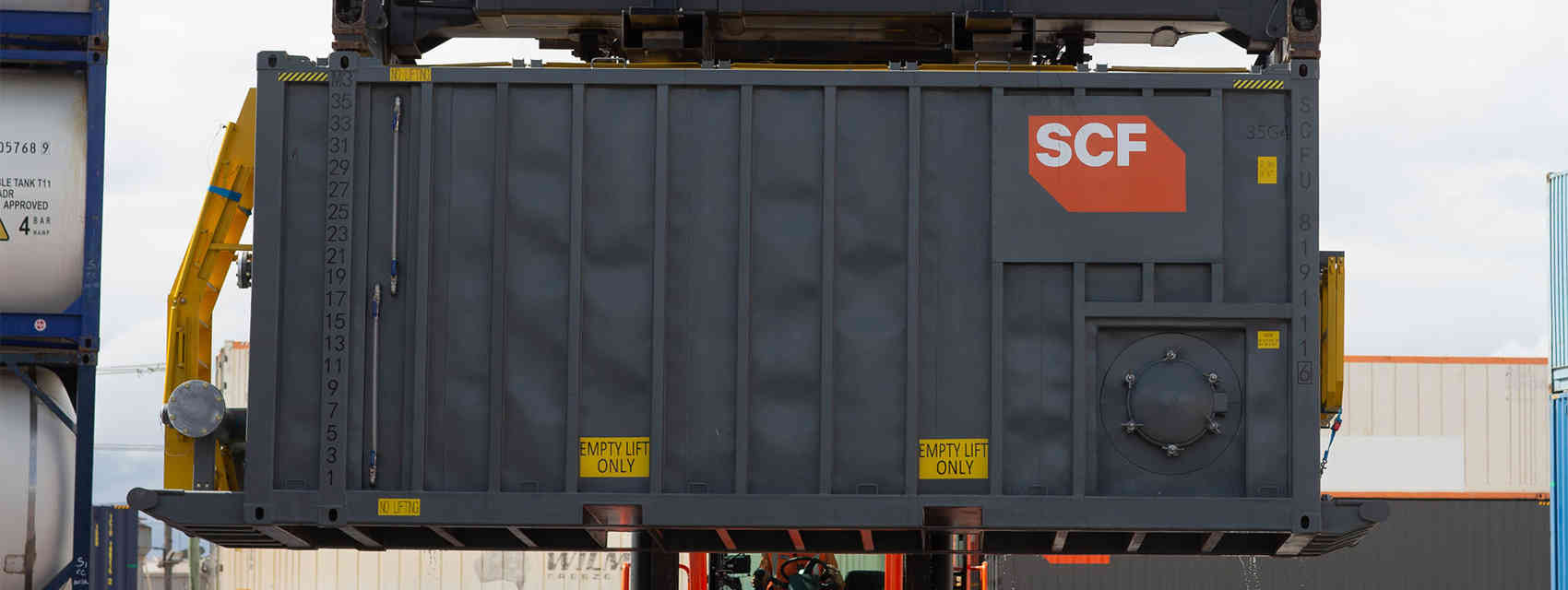

These tanks are skid-mounted for cost effective, long distance mobilisation to remote sites. The unit is double stackable in loaded configuration which allows you to maximise your storage and minimise your footprint.

All units are fitted with level gauges which allow customers to monitor the filling ratio while units are in use. Tanks are designed to connect together so they can be filled in sequence or as a single, large storage receptacle.

This product range is designed by SCF’s in house engineering team. Built strong to endure the harshest conditions, these tanks have been RPEQ certified confirming they meet wind and load ratings and all other regulatory requirements.

View the rest of SCF's Bulk Liquid Storage range to find a tank container that supports your project needs.

Options

  • Galvanised steel

  • Mounting points for agitators

  • Various linings for acid applications

25ft Bulk Liquid Storage Tank Dimensions, Volume and Weight

Specifications may vary. The following external dimensions assume the gantry is not in the raised position.

Volume
Litres 37,000
37

External
Length (mm) 7,620
Width (mm) 2,438
Height (mm) 2,896
Weight
Tare (kg) 6,200
Payload (kg) 63,000
MGW (kg) 69,200

How is this container delivered?

SCF Shipping Containers - Delivery Method - Tilt Tray

Tilt Tray

This is the most common method. We tilt the truck’s tray, then slide the container off while the vehicle slowly moves forward. Just note that the container’s height will increase when it’s tilted – so if your site has overhead obstacles (like power lines) we may need to go with another method.

SCF Shipping Containers - Delivery Method - Hiab Crane

Hiab Crane

We use Hiab cranes when there’s not enough space for a side loader or tilt tray – or if your site has other tricky obstacles to manoeuver around (like fences). The crane lifts and then places the shipping container. This method also makes it easy to place containers at an angle, or on raised areas.
