40ft Flowback Tank

Dimensions Approx
Length 12.2m
Width 2.4m
Height 3m
Internal Capacity71m3

With 71,000 L of liquid storage capacity, SCF's 40ft Flowback Tank is a big deal. The SCF 40ft Flowback tank is designed for large scale liquid sediment removal and water treatment. This tank is compliant for both road and rail transport allowing for rapid deployment to both metro and remote areas, and anything in between.

Product Banner Image - 40ft Flowback Tank

40ft Flowback Tank

With 71,000 L of liquid storage capacity, SCF's 40ft Flowback Tank is a big deal. The SCF 40ft Flowback tank is designed for large scale liquid sediment removal and water treatment. This tank is compliant for both road and rail transport allowing for rapid deployment to both metro and remote areas, and anything in between.

Flowback Tank Details

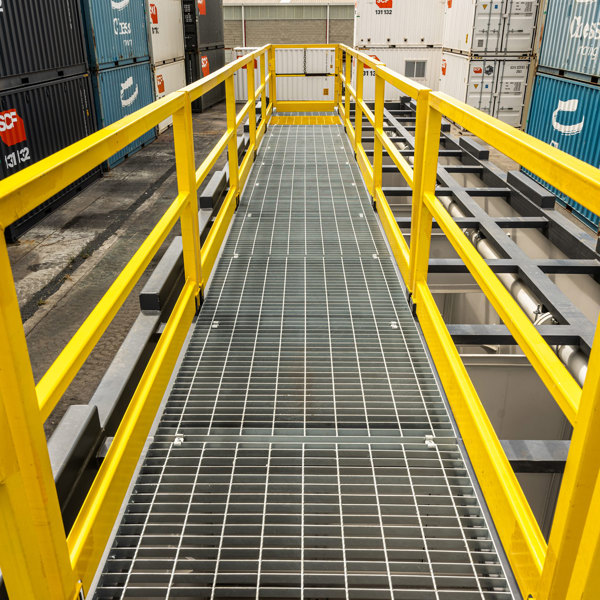

Need to manage water treatment on site? That's easy - SCF's 40ft Flowback Tank is built as an open top tank with a fold down gantry system, so operators can safely access the top of the tank and the central weir to treat water, making your water treatment process safe and efficient.

Removing suspended solids from a high volume of liquid is made easy with SCF's sediment removal system. Internal weirs encourage solids to drop from suspension and settle in the bottom of the tank.

When the job is done, multiple drain points and the open top configuration make washing out the tank easy, so you can move on to the next job with no worries.

Similar to our 45ft Flowback Tank, our 40ft tank can hold up to 71,000 L as a single large storage receptacle, or can be connected in sequence together to allow for further separation and storage.

  • AS1657 compliant stair and hand rail system
  • 71,000L capacity
  • SCF clean flow overflow system fitted as standard
  • Built-in triple weir system to assist in sediment separation
  • Drain points at both ends of unit
  • Inlet fitted with both Camlock and Bauer fittings as standard

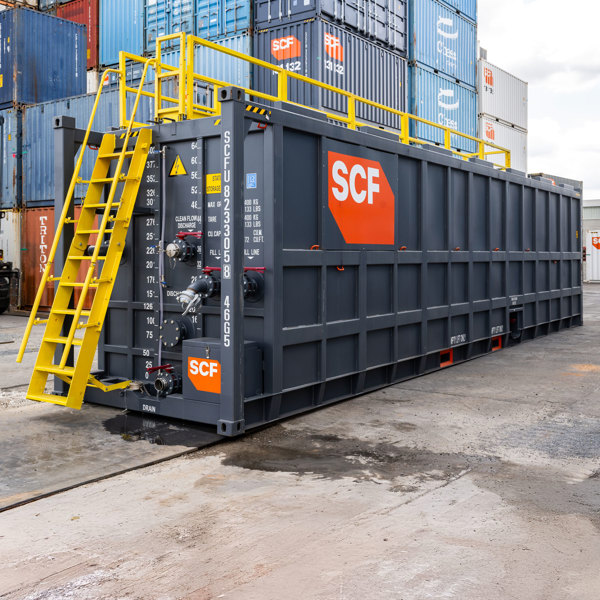

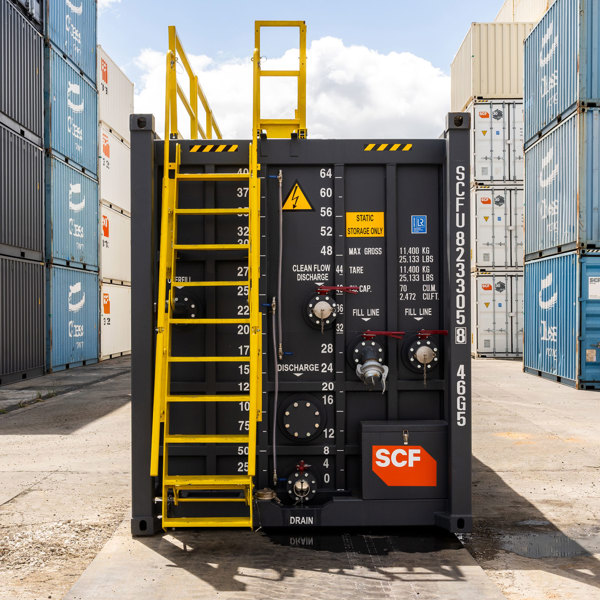

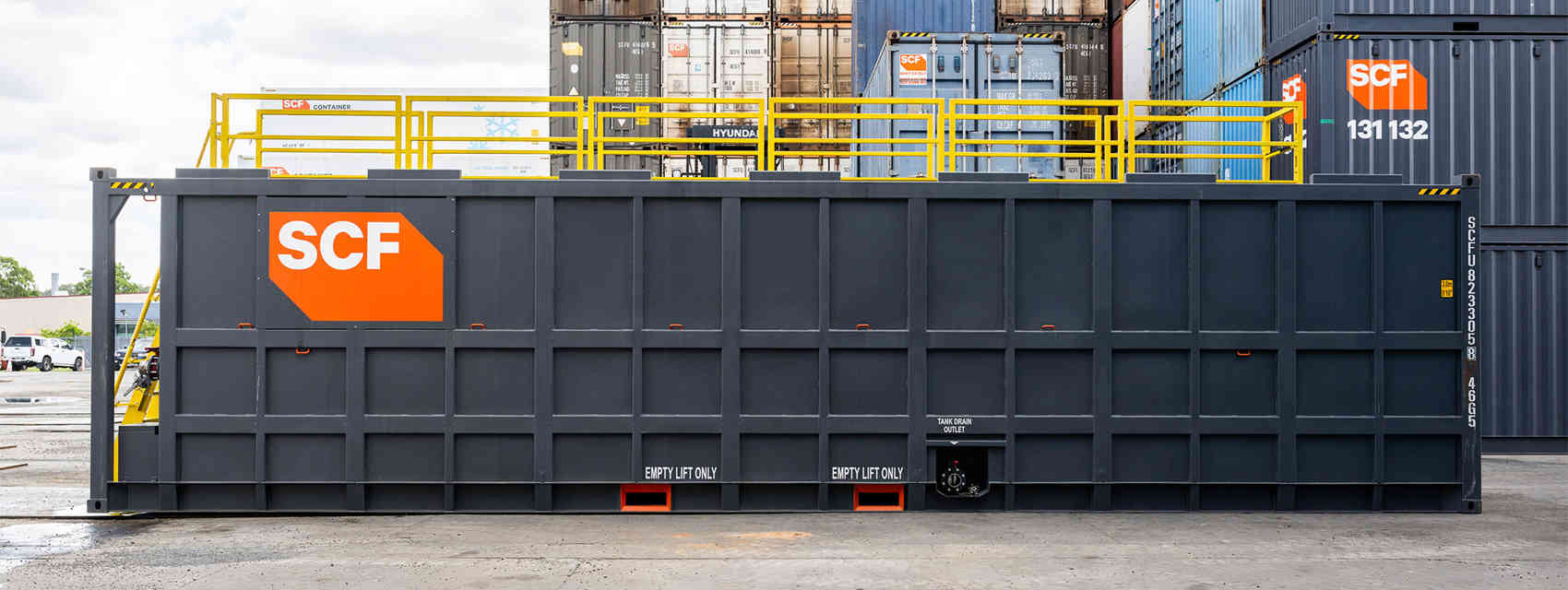

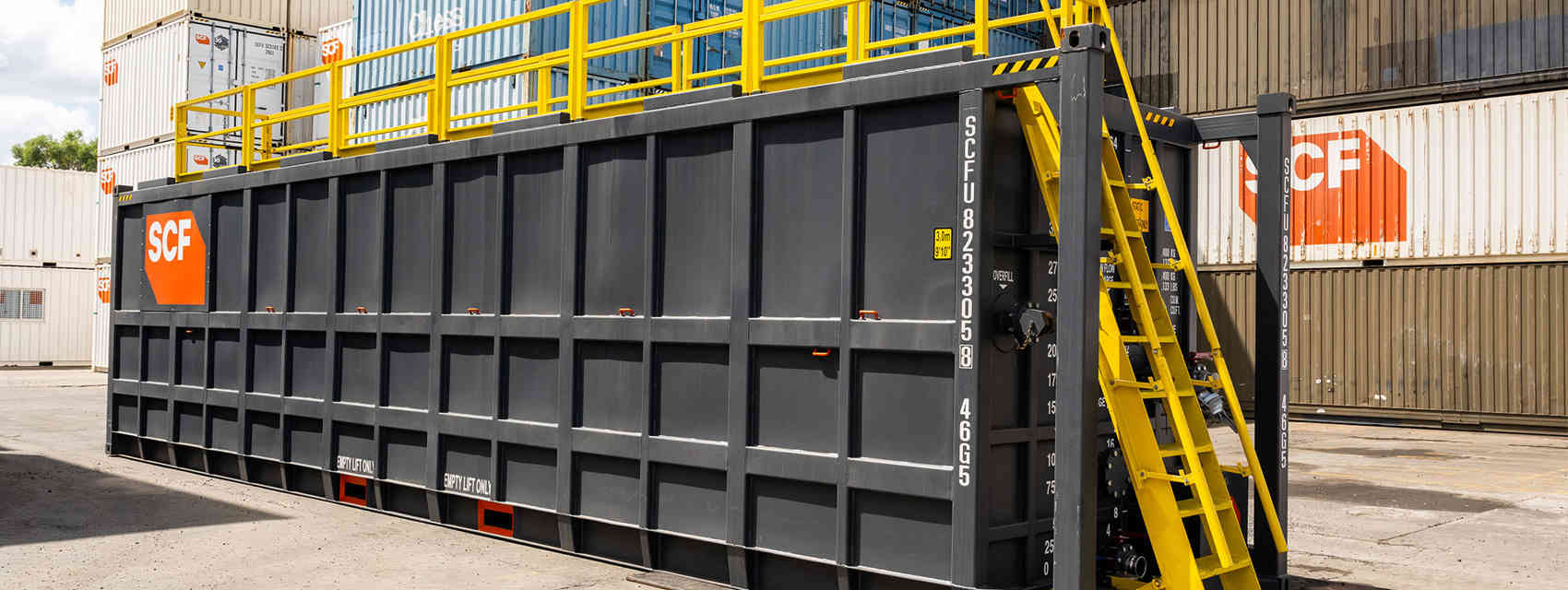

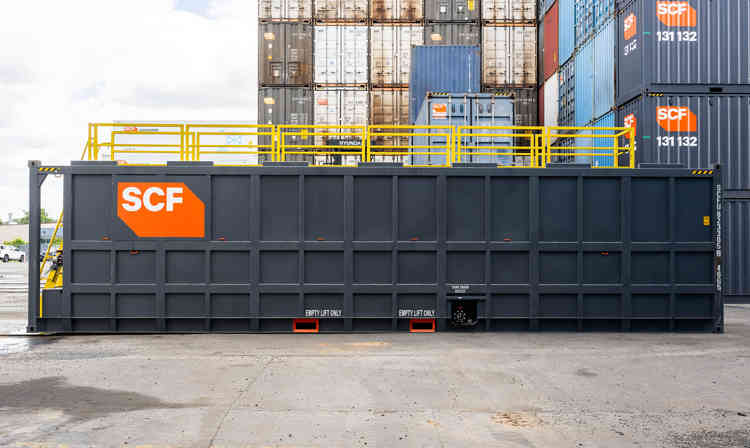

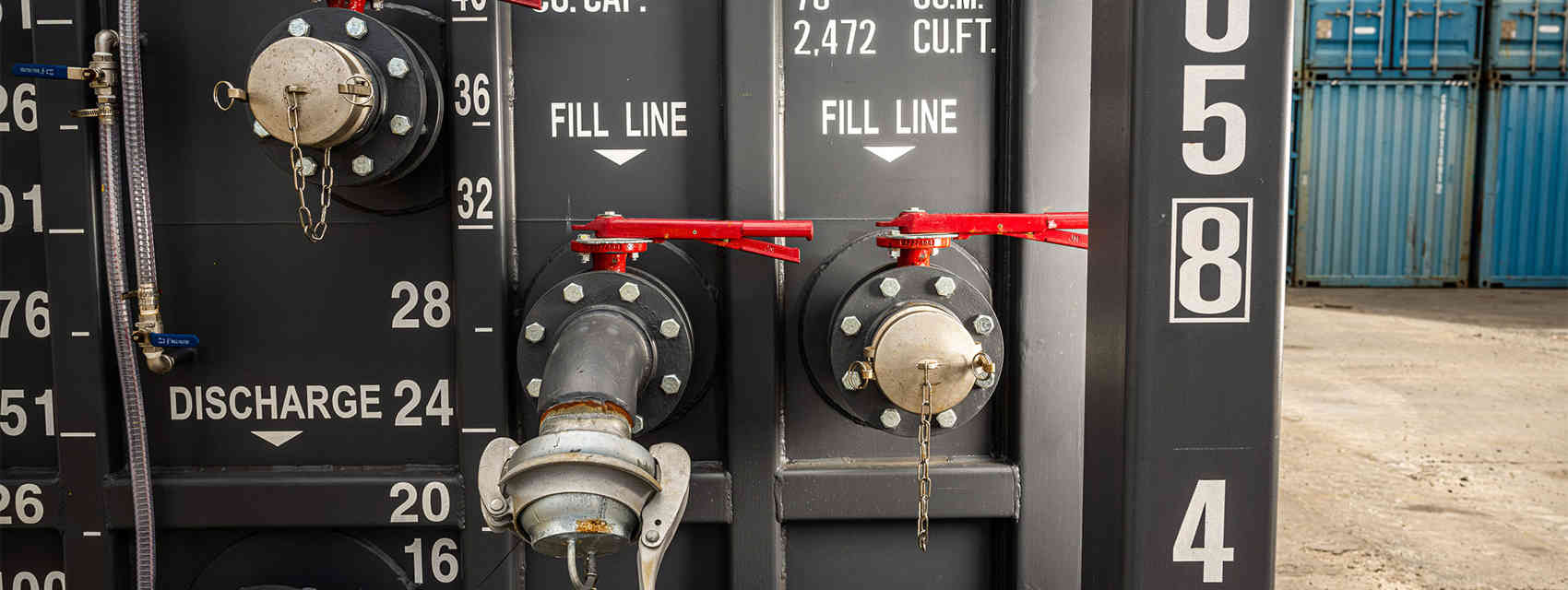

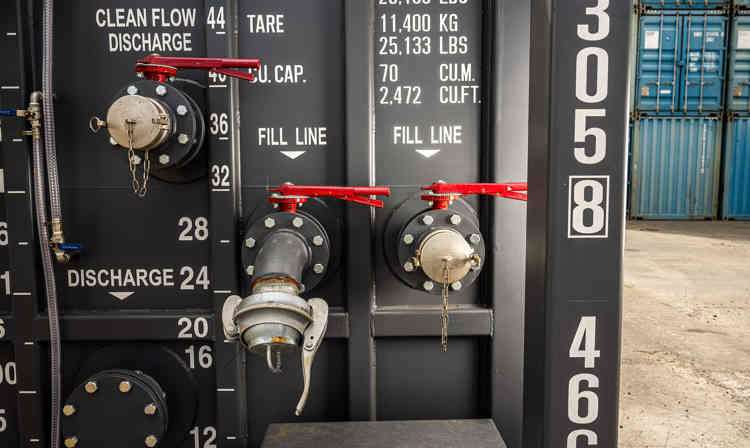

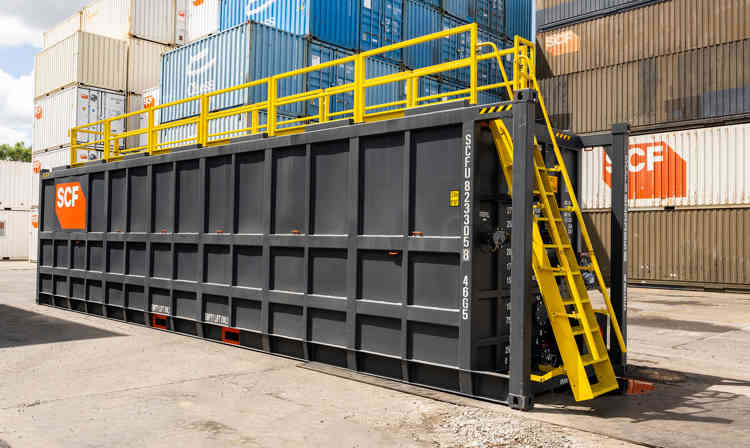

SCF 40Ft Flowback Back Angle Feature SCF 40Ft Flowback Side Feature SCF 40Ft Flowback Valves Feature

40ft Flowback Tank Dimensions, Volume and Weight

Specifications may vary. The below external dimensions assume the gantry is not in the raised position.

Cubic capacity 71 m3
Volume
Litres 71,000
71

External (mm)
Length 12,192
Width 2,438
Height 2,997
Weight (kg)
Tare 11,000
Payload
MGW

40ft Flowback Tank

Flowback External Dimensions

External dimensions of a Flowbank Tank.

40ft Flowback Tank - line drawing - SCF

Key Features

  • AS1657 compliant stair and hand rail system
  • 71,000L capacity
  • SCF clean flow overflow system fitted as standard
  • Built-in triple weir system to assist in sediment separation
  • Drain points at both ends of unit
  • Inlet fitted with both Camlock and Bauer fittings as standard
Get a Quote

How is this container delivered?

Tilt Tray

This is the most common method. We tilt the truck’s tray, then slide the container off while the vehicle slowly moves forward. Just note that the container’s height will increase when it’s tilted – so if your site has overhead obstacles (like power lines) we may need to go with another method.

Hiab Crane

We use Hiab cranes when there’s not enough space for a side loader or tilt tray – or if your site has other tricky obstacles to manoeuver around (like fences). The crane lifts and then places the shipping container. This method also makes it easy to place containers at an angle, or on raised areas.

Side Loader

If your site has limited space around the shipping container’s final position, side loader delivery could be the best option. The container is unloaded between the side loader’s two outrigger feet – about 0.5m from the truck’s side. We use side loaders to transport 20ft and 40ft shipping containers.

FAQ

A 40ft Flowback Tank can hold 71m3. Or 71,000 Litres.

A 40ft Flowback Tank is 12.2m L x 2.4m W x 3m H.

A tank farm configuration is when you connect multiple tanks at one site to hold a larger volume of liquid.

SCF's Head Office is in Adelaide, with a second dedicated office in Sydney.

Our depots all have sales offices (except Adelaide and Sydney), and are spread across the country in MelbourneSydneyBrisbaneTownsvilleDarwinAdelaide and Perth

For a full list of our locations, including depots and sales offices, check out Our Locations.

You might also like

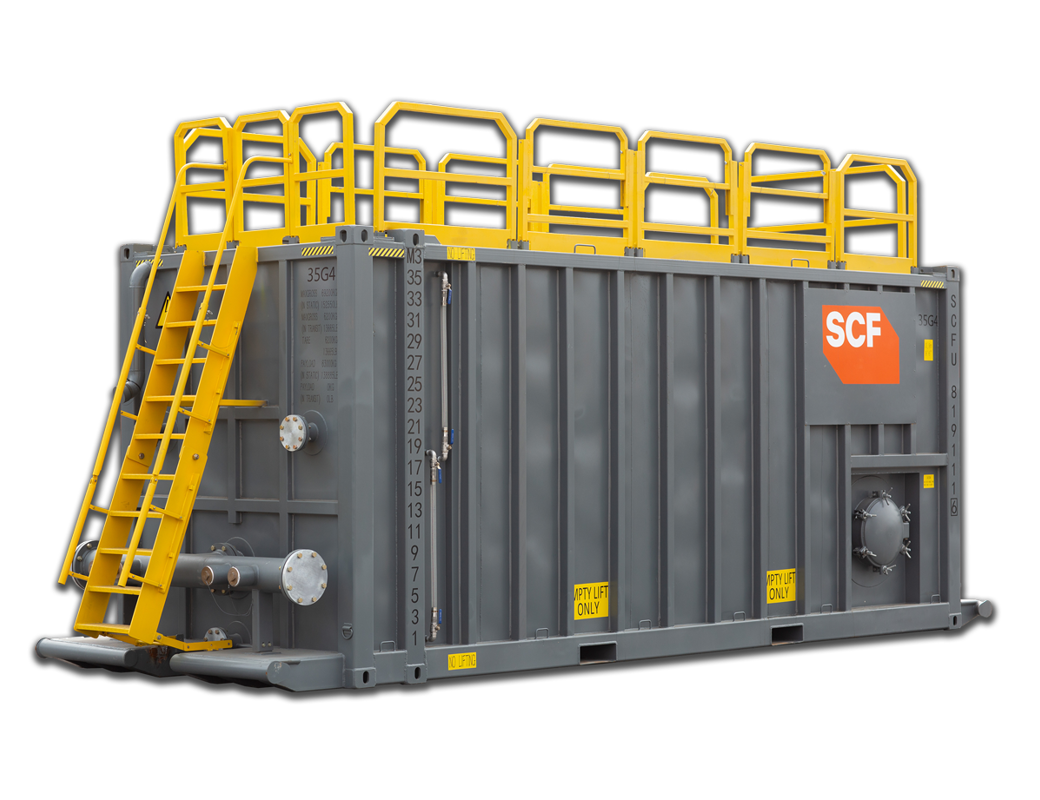

25ft Bulk Liquid Storage Tank

  • Approx 7.6m L x 2.4m W x 2.9m H
  • Internal Capacity 37 m3

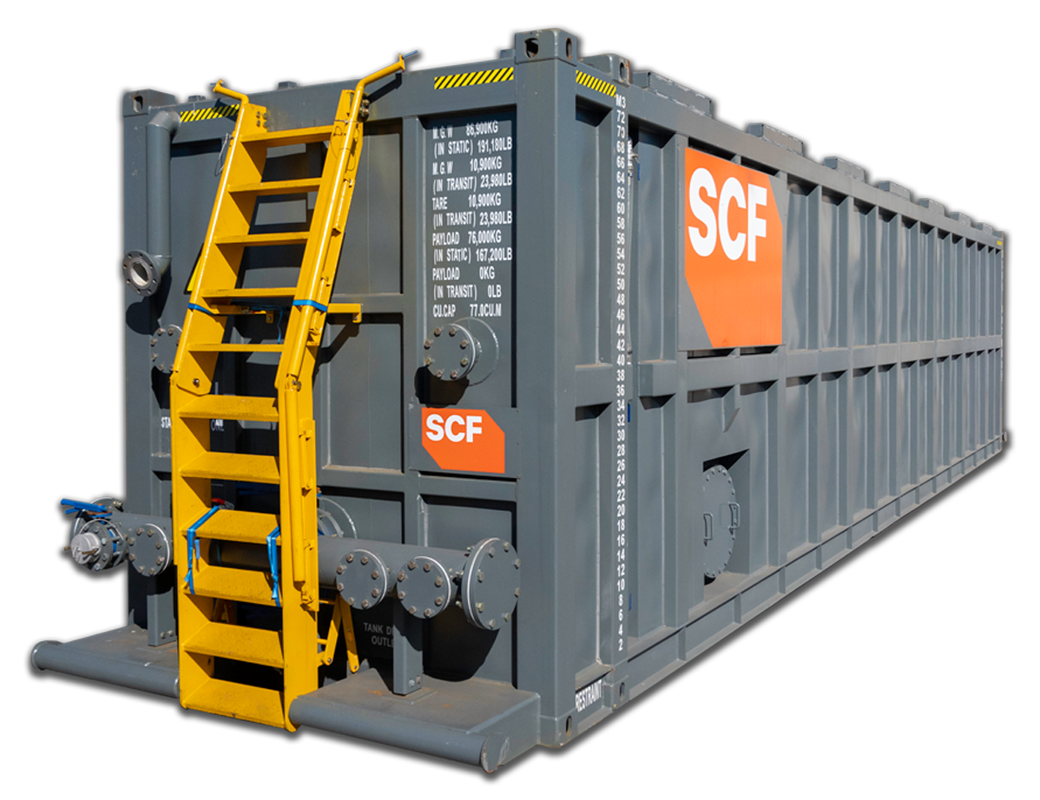

45ft Bulk Liquid Storage Tank

45ft Bulk Liquid Storage Tank

  • Approx 13.7m L x 2.5m W x 2.9m H
  • Internal Capacity 77 m3

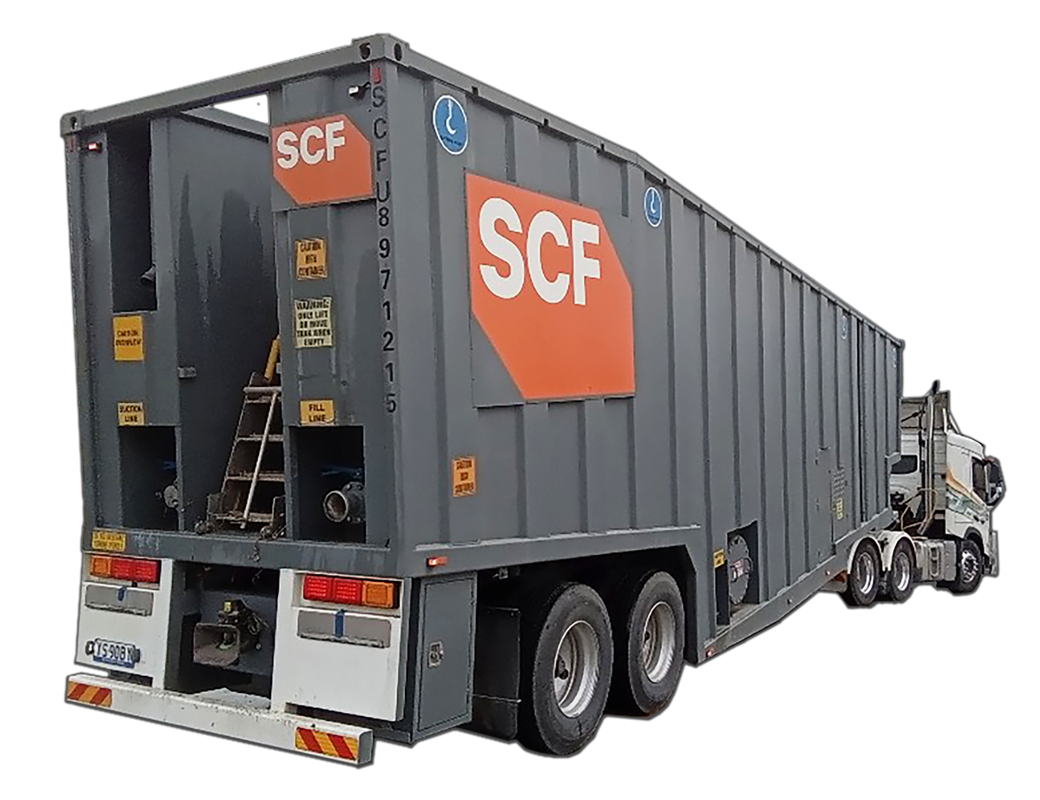

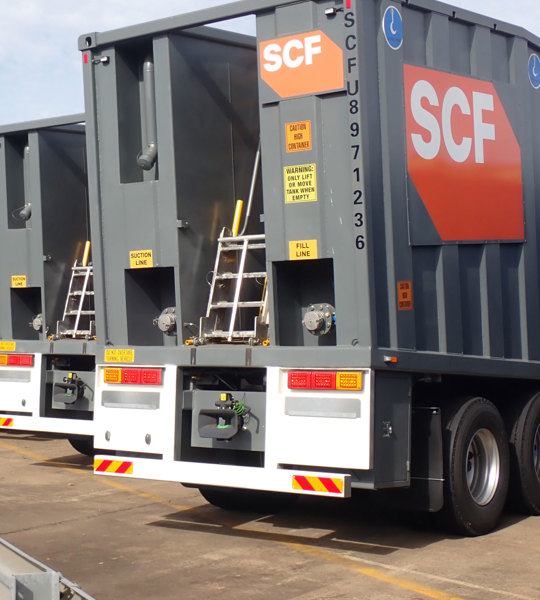

48ft Wheeled Bulk Storage Tank
